Orto alresa TA 005 Vibrating Screen

*Please Contact Us for the Best Quote and to Confirm Delivery Time

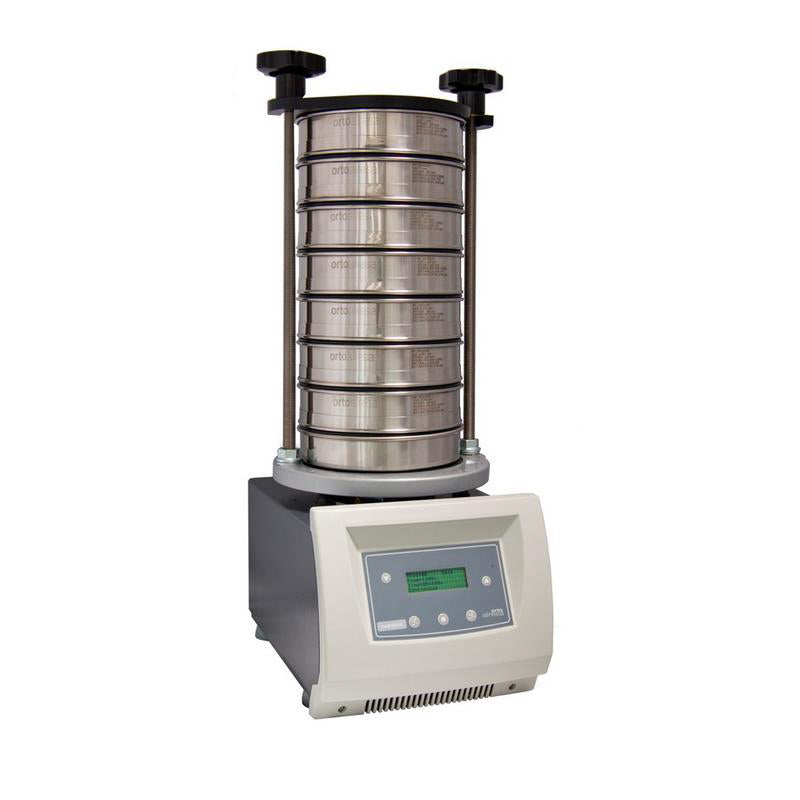

Orto alresa TA 005 Vibrating Screen
Power: 120W

Vibrating screens are essential testing equipment in pharmaceutical, food, and materials science laboratories for physical property testing and quality control. They are used to test the mechanical properties of particles, the miscibility and binding properties of materials, fracture stress testing, and sensory analysis of food.

Features:

> The vibrating screen has both horizontal and vertical vibration modes, creating 3D vibration for sample particles. This accelerates the material vibration and screening time, ensuring screening efficiency while effectively preventing material blockage of the screen openings.

> Microprocessor feedback control technology automatically adjusts the output power according to the sample load to ensure screening efficiency and automatically memorizes the last vibration parameter settings.

> Vibration speed is adjustable from 0 to 7500 RPM, with percentage-based adjustment.

> Digital timing function: 1 min-99 hr, or continuous operation.

> Vibration amplitude: 3 mm; minimum screening particle size: 40 microns; wet screening of samples smaller than 40 microns is also possible.

> Two standard sizes of vibrating screens are available:

200 x 50 mm (ISO 3310-1) and 200 x 50 mm (ASTM E11)

> Maximum cumulative height of the vibrating screen: 400 mm (including...) 7 vibrating screens, 1 receiver, and 1 lid

> Maximum sample loading capacity: 2 kg

> Equipment dimensions: 28 x 38 x 78 (W x D x H)

> Weight: 17 kg

> Power: 90 W

EU Directives: 2014/30/EU, 2014/35/EU, 2011/65/EU, 2012/19/UE

Compliant with standards: EN 61010-1, EN 61010-2-051, EN 61010-2-101, EN 61326-1
