Orto alresa Digtor 22 C benchtop centrifuge

*Please Contact Us for the Best Quote and to Confirm Delivery Time

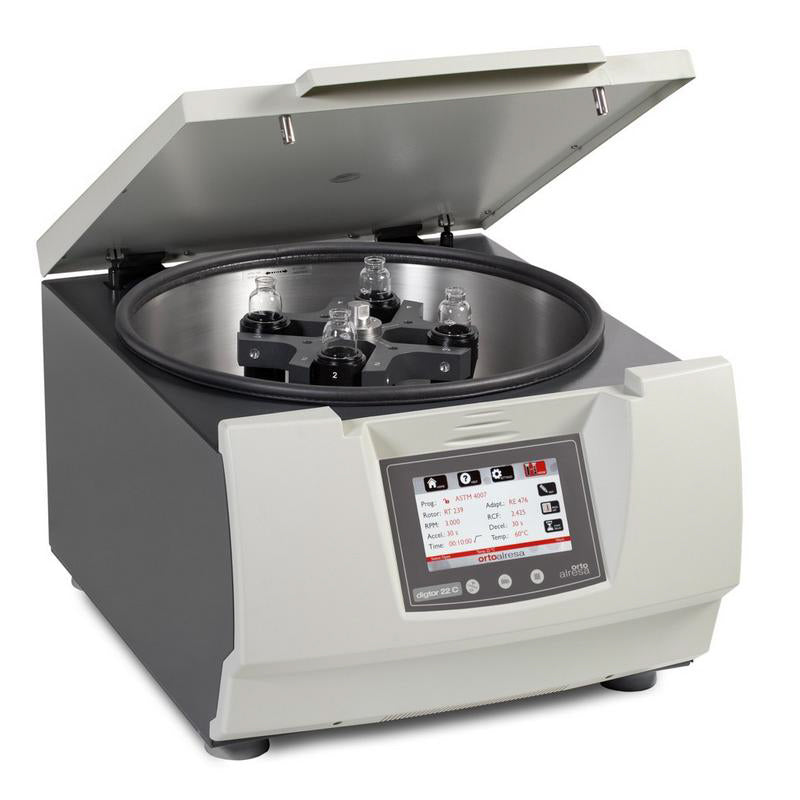

Orto alresa Digtor 22 C Benchtop Centrifuge
Speed: ≤3000 rpm, Relative Centrifugal Force: ≤2425 x g

The Digtor 22 C is used for oil and gas separation, and can also be used for sediment and condensate analysis. The rotor can use 6-inch and 8-inch tubes and 28 finger tubes.

> Capacity: ≤4 x 100mL (8/6”); Centrifugal Force/Speed: ≤2425xg / 3000rpm

> Complies with: ASTM D 91, D96, D 893, D 1796, D2273, D2709, D 2711, D 4007, D 5546, API 2542, API 2548, BS 4385, ISO 3734, ISO 9030, IP75, IP 359, NF M07-020, DIN 51793

> Centrifuge tubes upright in non-centrifugal state

> GRS: Vacuum system (optional), pre-installed

Features: TFT color display, viewable from over 3m

> Displays rpm/RCF, time, acceleration/deceleration digital (PCBS) with unbalanced positioning function (ULS)

> Speed control, stepwise 10rpm/10xg

> Real-time RCF display function based on actual usage accessories

> Countdown or forward timing function, reaching the set rpm/RCF timing function to ensure experimental reproducibility

> Timer program setting from 1min-99h, in 1s increments, with step and stop program functions

> PCBS function: Progressive control acceleration and braking system with up to 175 selectable slopes to prevent homogenization of separated samples

> ULS function: In case of unbalanced conditions, the unbalanced position number of the rotor will be directly displayed

> 40 program memory sets with password protection

> Different prompt sounds and screen information prompts, real-time display of equipment operation status

Heating

> With preheating program function, preset temperature preheating can be performed after rotor loading

> Temperature range RT+5℃ - 80℃, in 1℃ increments, freely switchable between Celsius and Fahrenheit

> Temperature sensor inside the cavity, with over-temperature protection

> Internal insulation material to prevent heat loss

Anquan
> Anquan system for centrifuge lid

- Automatic lid locking, double mechanical lock

- Emergency lid unlocking function

- Lid locking protection during operation

- Protection against sudden lid drop

- Inspection hole on the lid for operational checks

> Automatic shutdown upon unbalanced check

> Anquan protective layer between the centrifuge chamber and outer shell

> Stainless steel centrifuge chamber (easy to clean)

> Removable rotor when lid is closed

> Both rotor and adapter are autoclaved, easy to install

> Forced internal airflow reduces temperature rise

> Green setting with automatic power-off option

Easy to use

> Microcomputer program control

> Brushless maintenance-free motor

> Rotor and adapter memory function

> Noise level below 60dB

> Start, stop, lid opening, and instant centrifugation functions

> Speed adjustment via rpm/RCF during operation

> Automatic lid opening can be programmed

> Automatic memory of last parameter settings

> Automatic head-turn detection, overspeed protection

EU Certifications: 2011/65/EU, 2012/19/EU, 2014/30/EU, 2014/35/EU, 98/79/EC
Standards Implemented: EN 61010-1, EN 61010-2-020, EN 61326-2-6, EN 61326-1, EN 61010-2-010.
