Orto alresa Digtor 22 C-8 benchtop centrifuge

*Please Contact Us for the Best Quote and to Confirm Delivery Time

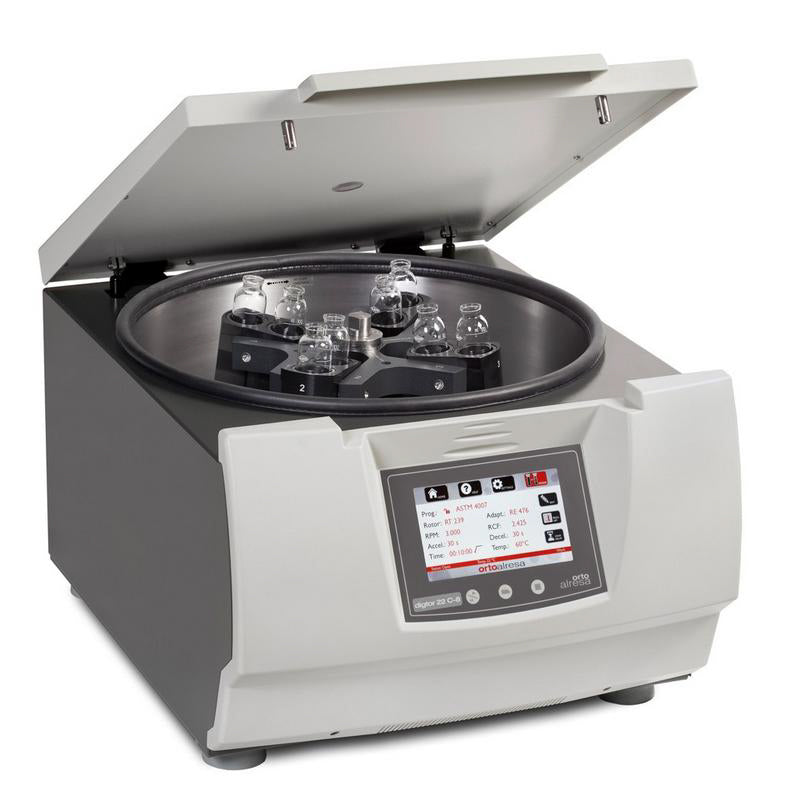

Orto alresa Digtor 22 C-8 Tabletop Centrifuge
Speed: ≤3000rpm, Relative Centrifugal Force: ≤2425xg

The Digtor 22 C-8 is used for separating water and sediment in oil products. It can also be used for sediment and condensate analysis, and waste oil analysis. It can separate eight 8-inch tubes at a time. The rotor can use 6-inch and 8-inch tubes, pear-shaped tubes, and 12.5mL tubes, with heating function.

> Capacity: ≤8 x 100mL (8/6”); Centrifugal force/speed: ≤2425xg / 3000rpm

> Complies with standards: ASTM D 91, D96, D 893, D 1796, D2273, D2709, D 2711, D 4007, D 5546, API 2542, API 2548, BS 4385, ISO 3734, ISO 9030, IP75, IP 359, NF M07-020, DIN 51793.

> Centrifuge tubes are upright in non-centrifugal state.

> GRS: Vacuum system (optional), pre-installed.

**Features:** TFT color display, viewable from over 3m.

> Display **RPM/RCF, Time, Acceleration/Deceleration Digitalization (PCBS) with Unbalanced Positioning Function (ULS)**

> Speed control, 10rpm/10xg increments

> Real-time RCF display based on actual usage accessories

> Countdown or forward timing function, reaching set RPM/RCF timing function to ensure experimental reproducibility

> Timer program setting from 1min-99h, 1s increments, with step and stop program functions

> PCBS function: Progressive control acceleration and braking system with up to 175 selectable slopes to prevent homogenization of separated samples

> ULS function: Directly displays the unbalanced rotor position number in case of unbalance

> 40 program memory sets with password protection

> Different prompt sounds and screen information prompts, real-time display of equipment operation status

**Easy to use**

> Microcomputer program control

> Brushless maintenance-free motor

> Rotor and adapter memory function

> Noise level, below 60dB

> Features include start, stop, lid opening, and instant centrifugation functions.

Speed can be adjusted via rpm/RCF during operation.

Automatic lid opening can be programmed.

Automatic memorization of last parameter settings.

Automatic rotor recognition and overspeed protection.

Anquan System

**Centrifuge Lid Anquan System:**
- Automatic lid locking with double mechanical locks
- Emergency lid unlocking function
- Lid locking protection during operation
- Lid sudden drop protection
- Inspection hole on the lid for operational checks

Automatic shutdown upon unbalanced check

Anquan protective layer between the centrifuge chamber and outer shell

Centrifuge chamber is made of stainless steel (easy to clean)

Rotor removable when lid is closed

Rotor and adapter can be autoclaved for easy installation

Forced internal airflow reduces temperature rise

Green settings with automatic power-off option

Heating

**Preheating program function:** Preheats to a preset temperature after rotor loading.

Temperature range: RT+5℃ - 80℃, in steps. Freely switchable between 1°C, Celsius, and Fahrenheit

Temperature sensor inside cavity with over-temperature protection

Internal insulation material to prevent heat loss

EU Certifications: 2011/65/EU, 2012/19/EU, 2014/30/EU, 2014/35/EU, 98/79/EC. Compliant Standards: EN 61010-1, EN 61010-2-020, EN 61326-2-6, EN 61326-1, EN 61010-2-010.
