Orto alresa Consul 22 large capacity centrifuge

*Please Contact Us for the Best Quote and to Confirm Delivery Time

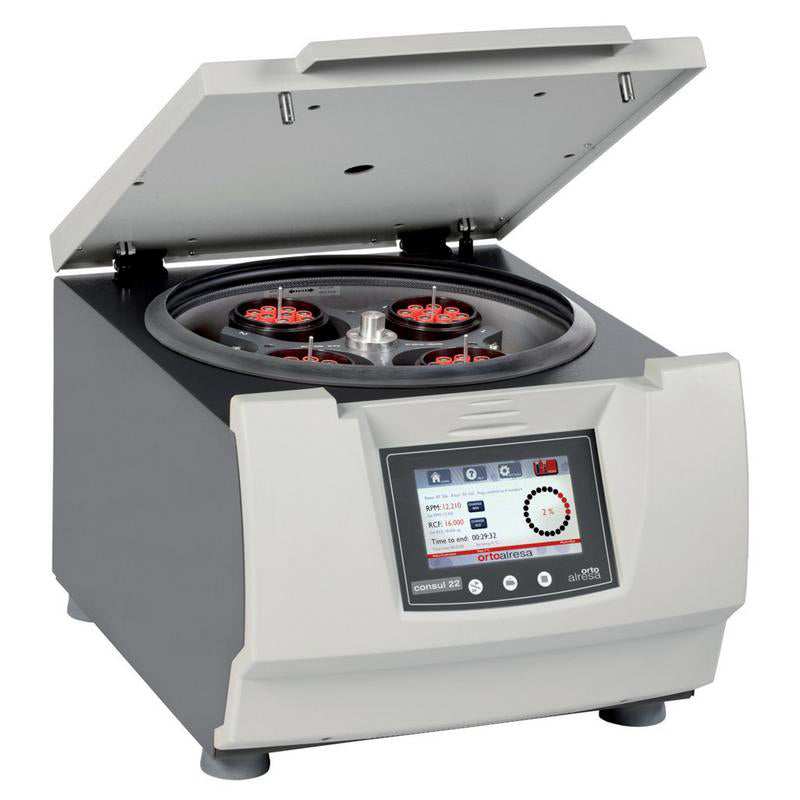

Orto alresa Consul 22 Large Capacity Centrifuge
Speed: ≤14300rpm, Relative Centrifugal Force: ≤21948xg

Capacity: ≤4 x 400mL; Centrifugal force/speed: ≤21948xg / 14300rpm

The CONSUL22 centrifuge features a compact structure and high capacity. It displays comprehensive information via a TFT color touchscreen and can be programmed for control. Programmable control allows for parameter setting, start-up settings, and other programmed operations, with traceable operation. Features include a horizontal rotor for 400mL centrifugation; a basket for microplate centrifugation with a height of 800mm; and an angle rotor suitable for various sizes of centrifuge tubes and micro-volume centrifugation.

Features:

TFT color display screen, viewable from over 3m

> Displays rpm/RCF, time, acceleration/deceleration digital (PCBS), with unbalanced positioning function (ULS)

> Speed control, in 10rpm/10xg increments

> Real-time RCF display based on actual usage accessories

> Countdown or forward timing function, reaching set rpm/RCF timing function to ensure experimental reproducibility

> Timer program setting from 1min-99h, in 1s increments, with step and stop program functions

> PCBS function: Progressive control acceleration and braking system with up to 175 selectable slopes to prevent homogenization of separated samples

> ULS function: Directly displays the unbalanced rotor position number in case of unbalance

> 40 program memory settings with password protection

> Different prompt sounds and screen information prompts, real-time display of equipment operation status

Easy to use

> Microcomputer program control

> Brushless maintenance-free motor

> Rotor and adapter memory function

> Noise level below 60dB

> Start, stop, lid opening, and instant centrifugation functions

> Speed adjustable via rpm/RCF during operation

> Automatic lid opening programmable

> Automatic memory of last parameter settings

> Automatic rotor detection and overspeed protection

Anquan
> Anquan system for the centrifuge lid

- Automatic lid locking, double mechanical lock

- Emergency lid unlocking function

- Lid locking protection during operation

- Lid sudden drop protection

- Inspection hole on the lid for operational checks

> Automatic shutdown upon unbalanced check

Anquan protective layer between the centrifuge chamber and the outer shell

> Stainless steel centrifuge chamber (easy to clean)

> Removable rotor when lid closed

> Both rotor and adapter are autoclaved and easy to install

> Forced internal airflow reduces temperature rise

> Green settings with automatic power-off option

EU Certifications: 2011/65/EU, 2012/19/EU 2014/30/EU, 2014/35/EU, 98/79/EC. Implemented standards: EN 61010-1, EN 61010-2-020, EN 61326-2-6, EN 61326-1
