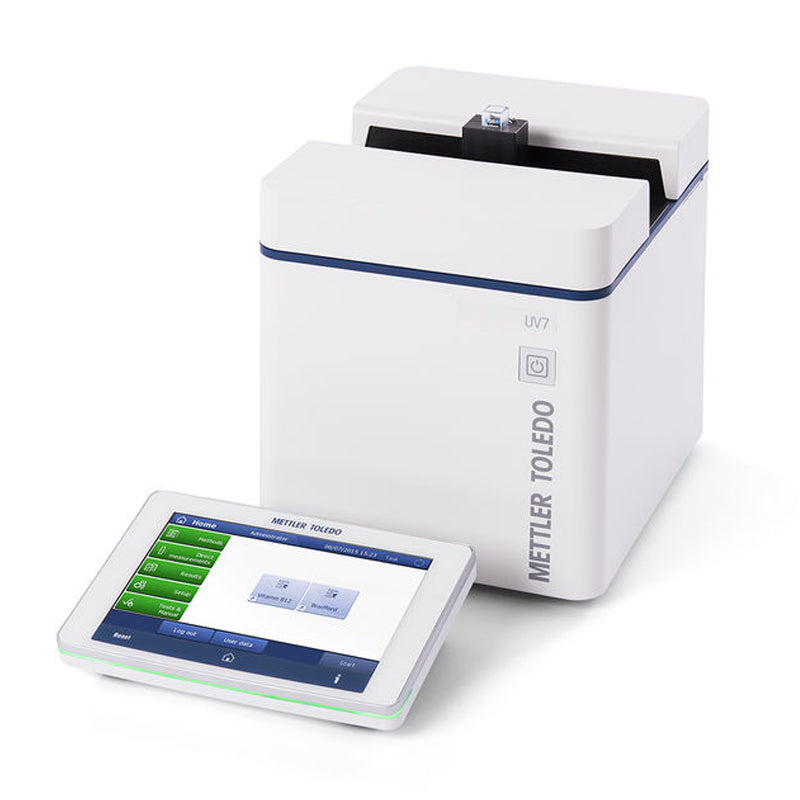

Specifications - Spectrophotometer UV7
| Options |
CertiRef CuvetteChanger FillPalMini Handheld barcode scanner Immersion LabX PC Software LinSet Printer USB-P25 |
| User Identification |
Yes |
| Weight (incl. Terminal) |
6.4 kg |
| Shortcuts per user |
24 |
| Optics |
Array |
| Dimensions (HxWxD) |
8.98 in x 8.19 in x 10.04 in (228 mm x 208 mm x 255 mm) |
| Languages |
Chinese English French German Italian Portuguese Russian Spanish |
| Resolution (Toluene in hexane) |
>1.9 |
| Compatibility with LabX Software |
Yes |
| Light Source |
Xenon flash lamp |
| Minimal Scan time |
1 s |
| Wavelength accuracy |
±0.5 nm |
| Photometric accuracy (K2Cr2O7) |
±0.005 A |
| Displayed Resolution |
800x400 |
| Max. number of methods |
100 |
| Pharmacopeia Compliant |
Yes |
| Stray light (KCl, 198nm) |
>2.3 |
| Wavelength Range (nm) |
190 nm - 1,100 nm |
| Path length |
10 mm 16 mm 20 mm 30 mm 40 mm 50 mm |
| Application |
Color Kinetic Pharma Quant Scan Water |
| Display |
7 inch QVGA Color TFT touch sensitive screen |
| Product Line |
UV/VIS Excellence |
