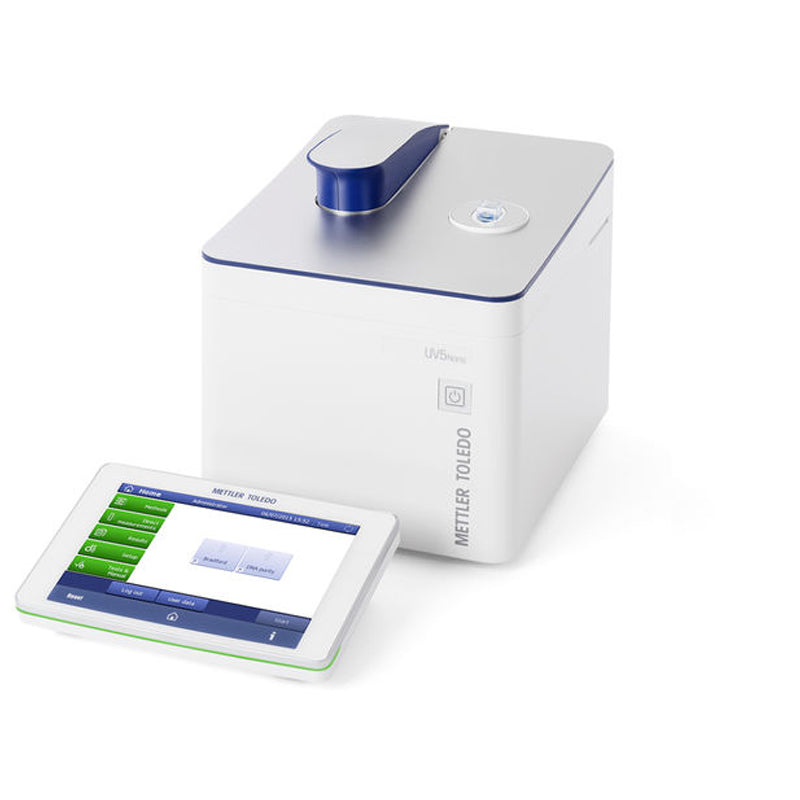

Specifications - Spectrophotometer UV5Nano
| Options |
FillPalMini Handheld barcode scanner LabX PC Software Printer USB-P25 |
| Shortcuts per user |
12 |
| Optics |
Array |
| Languages |
Chinese English French German Italian Portuguese Russian Spanish |
| Resolution (Toluene in hexane) |
>1.7 |
| Light Source |
Xenon flash lamp |
| Minimal Scan time |
1 s |
| Cuvette Changer |
No |
| Connectivity USB Interface |
Yes |
| Photometric accuracy (K2Cr2O7) |
±0.006 A |
| Displayed Resolution |
800x400 |
| Max. number of methods |
50 |
| Pharmacopeia Compliant |
No |
| Wavelength Range (nm) |
190 nm - 1,100 nm |
| Terminal resolution |
800x400 |
| User Identification |
Yes |
| Weight (incl. Terminal) |
7.2 kg |
| Dimensions (HxWxD) |
8.54 in x 8.19 in x 10.04 in (217 mm x 208 mm x 255 mm) |
| Compatibility with LabX Software |
Yes |
| Wavelength accuracy |
±0.9 nm |
| Stray light (KCl, 198nm) |
>1.7 |
| Path length |
0.1mm 1.0mm 10 mm |
| Application |
Bio Color Micro Volume Quant Scan |
| Display |
7 inch QVGA Color TFT touch sensitive screen |
| Product Line |
UV/VIS Excellence |
