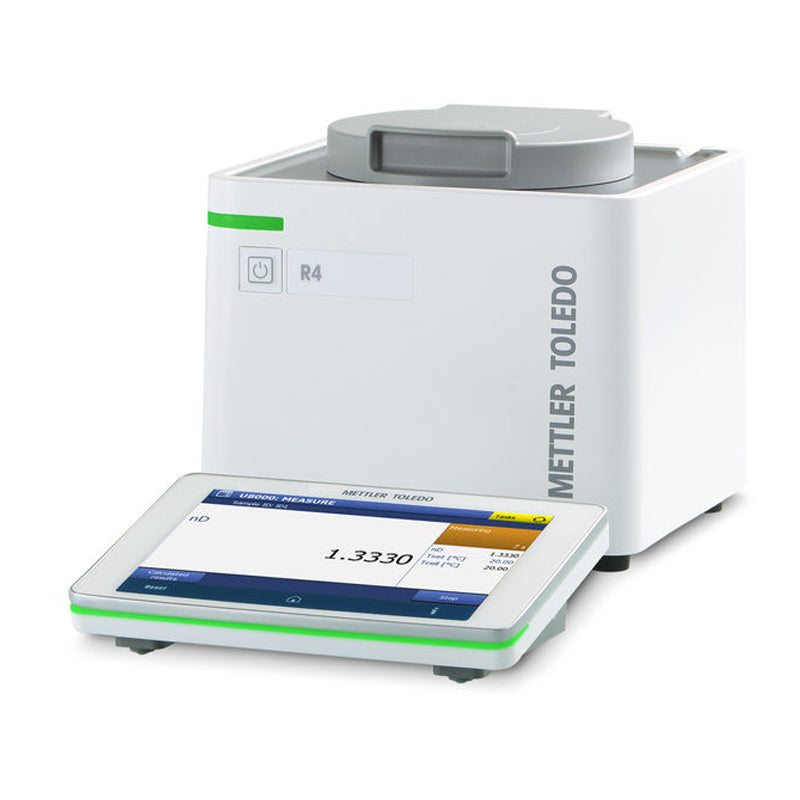

Specifications - Refractometer Excellence R4
| Measurement range Brix |
0-100 % w/w |
| Accuracy Brix |
0.05 % w/w |
| Measurement Scales |
Refractive Index, Sugar (Brix and more), Acid/Base, Chemical, Freezing Point, Salt, Others Up to 30 user-defined concentration tables (can be entered as tables or formulas). |
| Weight |
4.8 kg |
| Minimum sample volume |
0.50 mL (0.5 mL) |
| Connectivity |
3 × USB host (printer, memory stick, barcode reader, hub, keyboard, mouse) CAN (Multiple LevelSens) Ethernet (Network and PC Software) HDMI (Terminal) RS232 (Automation units) USB client (PC Software) |
| Measurement range nD |
1.3200 - 1.7000 |
| Accuracy nD (±) |
0.0001 |
| Temperature Control Range |
5 °C – 100 °C |
| Built-in Measurement Scales |
Brix / Sugar tables Chemicals, acids, bases and freezing point tables Others Refractive Index |
| Product Type |
Benchtop refractometer |
| Dimensions (HxWxD) |
193 mm x 208 mm x 226 mm |
| Display / User interface |
7" display with color touchscreen |
| PC Software |
LabX Express and Server |
| Funnel for Easy Sampling |
No |
| Password Protection |
Yes |
| Languages |
Chinese English French German Italian Polish Portuguese Russian Spanish |
| Repeatability nD (±) |
5e-005 |
| Standard compliance |
www.mt.com/dere-norms |
| User Management |
Yes |
| LIMS connectivity |
Yes |
| Temperature control accuracy (±) |
0.1 °C |
| Main norms and standards |
A.O.C.S. Official method Cc7-25 AOAC 2000.19 AOAC 896.02 AOAC 898.02 AOAC 905.01 AOAC 920.141 AOAC 920.78 AOAC 921.08 AOAC 932.12 AOAC 932.14, Section C AOAC 940.09 AOAC 943.05 AOAC 945.102 AOAC 948.10 AOAC 950.04 AOAC 950.13 AOAC 953.16 AOAC 969.18 AOAC 969.38 AOAC 970.15 AOAC 970.59 AOAC 976.20 AOAC 983.01 AOAC 983.17 ASTM D 1807 ASTM D1218 ASTM D1747 ASTM D2140 ASTM D3321 ASTM D4095 ASTM D4542 ASTM D5006 ASTM D524 GB/T 12143-2008 GBT 10786-2006 ICUMSA GS4/3 – 13 (2004) ICUMSA SPS-3 (2000) ISI 06-1e ISO 280 OIML R 108 OIV MA-AS2-02 OIV MA-AS312-01B Ph. Eur. 2.2.6 UOP 816 USP 831 |
| Dimensions (Width x Height x Depth) |
226 x 193 x 208 mm |
| Compliance / Data Security |
21 CFR part 11 / EU Annex 11 (requires LabX software) Audit Trail (requires LabX software) Data integrity (requires LabX software) |
| Color-coded result identification |
Yes |
| On-screen help texts |
Yes |
| Barcode reader connectivity |
Yes |
