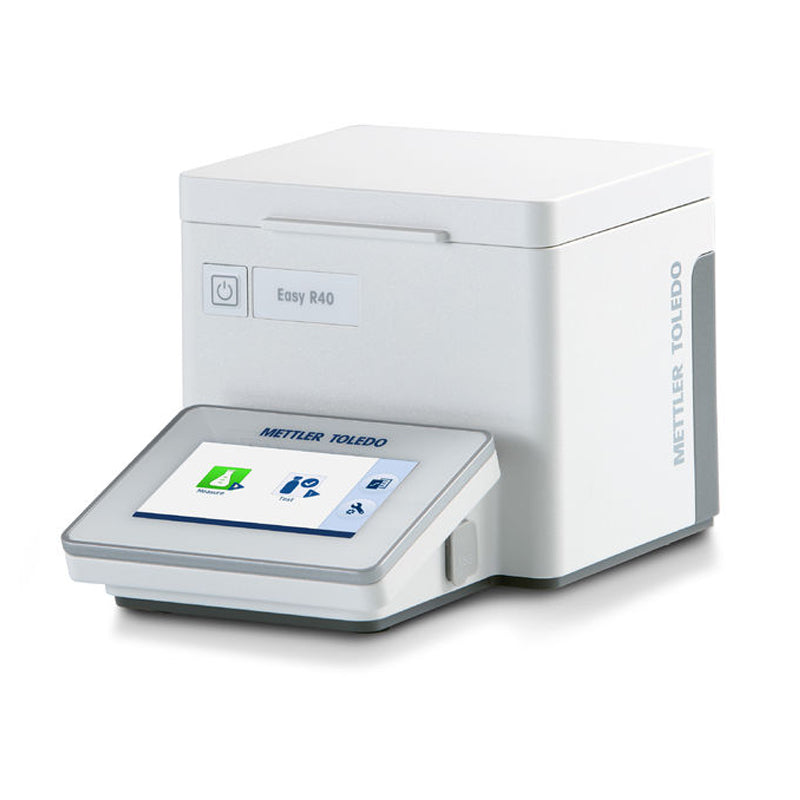

Specifications - Refractometer Easy R40
| Measurement range Brix |
0 - 100 % w/w |
| Accuracy Brix |
0.05 % w/w |
| Measurement Scales |
Chemical Freezing Point Refractive index Sugar (Brix and more) User-defined concentration |
| Minimum sample volume |
0.20 mL (0.2 mL) |
| Connectivity |
3 x USB-A (Printer, mouse, keyboard, barcode reader) 1 x USB-B (EasyDirect PC Software) |
| Measurement range nD |
1.30 - 1.72 |
| Accuracy nD (±) |
0.0001 |
| Temperature Control Range |
10 °C – 65 °C |
| Built-in Measurement Scales |
Chemicals and freezing point tables Refractive Index |
| Product Type |
Benchtop refractometer |
| Display / User interface |
4.3" capacitive display with color touchscreen |
| PC Software |
EasyDirect Density and Refractometry PC Software |
| Funnel for Easy Sampling |
No |
| LIMS connectivity |
No |
| Automatic sample detection (FastStart™) |
Yes |
| Languages |
Bahasa Indonesia Chinese English French German Italian Polish Portuguese Russian Spanish Thai |
| Main norms and standards |
AOAC 920.78 AOAC 921.08 AOAC 970.59 ASTM D1218 ASTM D4095 Chinese pharmacopoeia 0622 GB/T 12143-2008 GBT 10786-2006 GBT 5527-2010 ISO 280 OIML R 108 OIV MA-AS2-02 OIV MA-AS312-01B Ph. Eur. 2.2.6 USP 831 |
| Dimensions (Width x Height x Depth) |
170 x 156 x 273 mm |
| Max. number of methods |
6 |
| Color-coded result identification |
Yes |
| Repeatability nD (±) |
5e-005 |
| Standard compliance |
www.mt.com/dere-norms |
| On-screen help texts |
Yes |
| User Management |
Yes |
