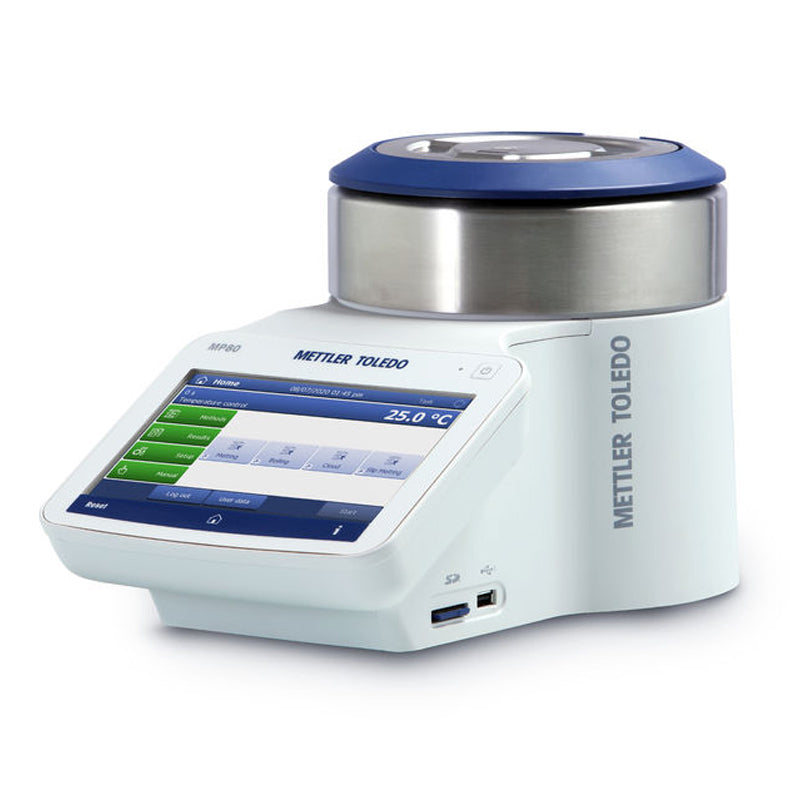

Specifications - Melting Point System MP80
| Application Type |
Boiling Point Cloud Point Melting Point Slip Melting Point |
| Min. Number of Melting Point Capillaries |
3 Melting Point Capillaries |
| Min. Cooling Time (Tmax to 50°C) |
5.5 min |
| LIMS connectivity |
Yes |
| Temp. Range |
RT – 350°C |
| Number of One Clicks™ |
12 Per User |
| Min. Heating Time (50°C to Tmax) |
4 |
| Video |
color, 300 minutes |
| Data Export |
to SD Card, USB Stick or PC |
| Heating Rate (/min) |
0.1 °C – 20 °C |
| Compliance / Data Security |
21 CFR part 11 / EU Annex 11 (requires LabX software) Audit Trail (requires LabX software) |
| Stored Methods |
20 |
| Number of Capillaries/Cups |
2 Boiling Point Capillaries 2 Cloud Point Capillaries 2 Slip Melting Point Capillaries 3 Melting Point Capillaries |
| PDF Reports |
Yes |
| Stored Results |
50 |
| Substances in database |
12 |
| User Management |
Multiple Users Password protection Protection of Settings |
| Languages |
English, Chinese, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean |
| PC Software |
LabX Express and Server |
| Display / User interface |
7" color display with touchscreen |
| PC Software (optional) |
Yes |
| Dimensions (Width x Height x Depth) |
18 x 35 x 19 cm |
| Weight |
4 kg |
| Standard compliance |
www.mt.com/mpdp-norms |
