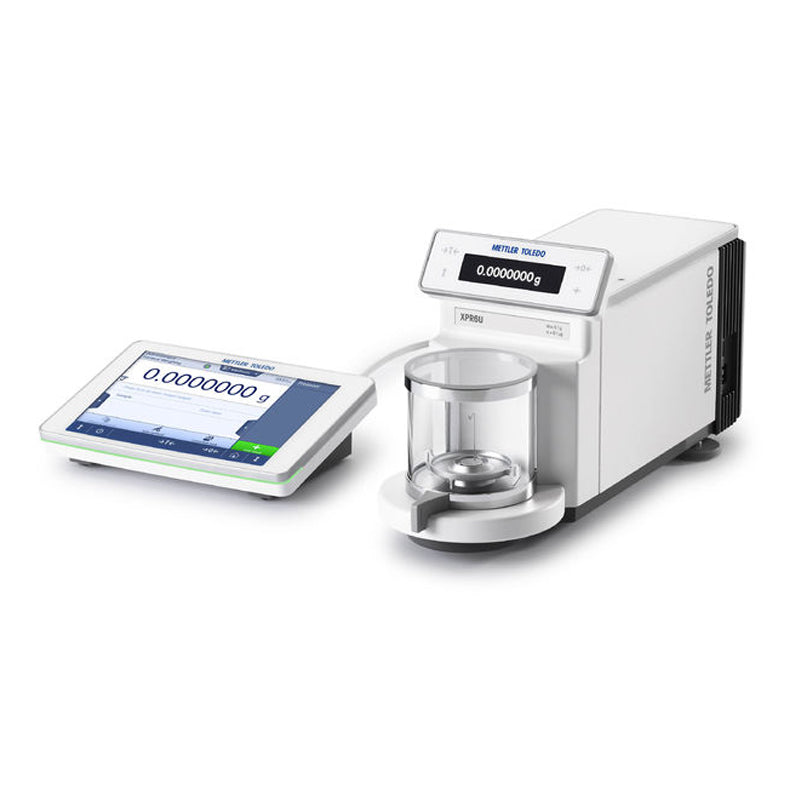

Specifications - Comparator XPR10U
| Maximum Capacity |
10.1 g |
| Readability |
0.1 µg |
| Repeatability ABA at Nominal Load |
0.5 µg |
| Repeatability ABA at Low Load |
0.4 µg |
| Minimum Weight (U=1%, k=2), typical |
0.06 mg |
| Minimum Weight (USP, 0.1%, typical) |
0.6 mg |
| Adjustment |
Internal (automatic/FACT) |
| Interfaces |
Bluetooth (optional) Ethernet (LAN) RS232 (integrated/optional) USB-A (to device) USB-B (to device) |
| Display |
7" colour TFT touchscreen |
| User Management |
Password protection Unlimited Amount of Users User Rights |
| Legal for Trade |
No |
| Electrical Weighing Range |
0 g – 10.1 g |
| Repeatability nominal load |
0.6 µg |
| Repeatability (Low Load) (5%) |
0.4 µg |
| OIML Class |
E1 E2 F1 F2 M1 M2 M3 |
| Gravimetric eccentricity elimination |
Included |
| Software |
Optional MC Link 2 Mass Calibration Software |
| Dimensions (LxHxD) |
123 mm x 179.5 mm x 356.5 mm |
| Weight |
5.3 kg |
| Weight Handler |
None |
| Valuable Samples |
Yes |
| Compliance Options |
Data Integrity Log history (21 CFR Part 11 Compliant) Log history (Basic Metadata) Password protection |
| Approved Balance |
No |
| Balance Line |
XPR |
| Repeatability, typical |
0.3 µg |
| Balance Type |
Microbalance |
| Features |
Automatic doors Automatic static detection Leveling guidance Password protection Supports 21 CFR Part 11 (LabX compatible) User management |
| Documentation Options |
Automatic Documentation (21 CFR Part 11 Compliant) Basic Electronic Documentation Printing |
| Price |
$$$ |
| Microbalance Type |
Ultra-Microbalance |
| Family |
Excellence |
| 21 CFR Part 11 Compliant Weighing |
Yes |
| Draftshield |
Automated |
| Automation Options |
Automated Workflows |
