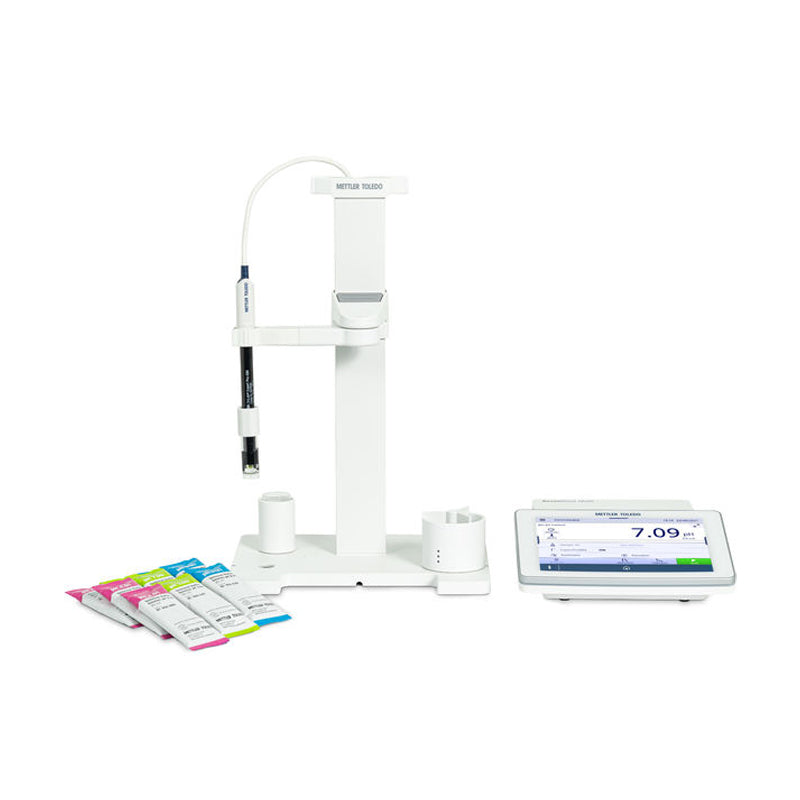

Specifications - pH Meter SevenDirect SD20 Kit
|
parameter |
pH ORP |
|
aisle |
single channel |
|
Version kit |
Ready-to-use test kit |
|
electrode |
InLab® Expert Pro-ISM |
|
pH resolution |
0.1 0.01 0.001 |
|
pH accuracy (±) |
0.002 |
|
mV resolution |
1 0.1 |
|
mV accuracy (±) |
0.1 |
|
Temperature range |
-30 °C – 130 °C |
|
Temperature resolution |
0.1 °C |
|
Temperature accuracy (±) |
±0.1°C between 0°C and 100°C |
|
Simple to operate |
Touchscreen; Calibration support; Guided verification; Simple method; Multilingual menu |
|
Security and compliance |
GLP User Management |
|
Storage capacity |
2000 standard measurements |
|
Data transmission |
Computer printout USB flash drive |
|
Flexibility and modularity |
Mixer barcode reader |
|
Protection level |
Waterproof and dustproof (IP54) |
|
Including electrodes |
general electrode |
|
Display type |
7" Color TFT |
|
Instrument type |
Desktop single channel |
|
mV measurement range |
-2000..2000 mV |
|
External dimensions |
195x205x65 mm |
|
weight |
850 g |
|
connector |
BNC; RCA/Cinch; USB A; USB B; Mini-DIN stir bar; |
|
Compatible with Intelligent Sensor Management (ISM) |
yes |
|
Portable instrument |
no |
|
Product Line |
SevenDirect |
