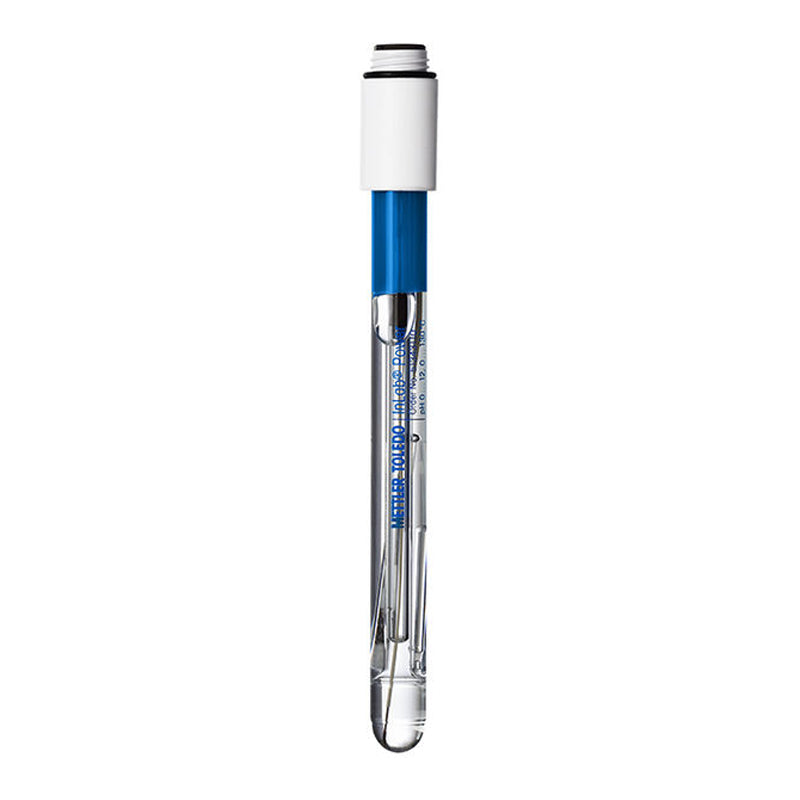

Specifications - pH Sensor InLab® Power
| Measuring range |
pH 0 – 12 |
| Temperature Range |
0 °C – 130 °C |
| Type of junction |
Ceramic |
| Shaft Material |
Glass |
| Sensor Type |
Combined electrode |
| Shaft length |
120 mm |
| Shaft Diameter |
12 mm |
| Parameter |
pH |
| Reference System |
SteadyForce™ |
| Reference electrolyte |
DPA Gel |
| Membrane glass |
A41 |
| Membrane resistance (25°C) |
< 600 MΩ |
| Intelligent Sensor Management (ISM®) |
No |
| Temperature Probe |
No |
| Low Maintenance |
Yes |
| Signal type |
Analog |
| Sensor Characteristics |
Chemically robust High temperature |
| Sample Volume |
>= 20 mL |
| Cable Included |
No |
| Connector to Meter |
Flexible (detachable cable) |
| Typical Samples |
Polymeric dispersions, Milk, Acid/Bases |
| Connector on Sensor |
S7 |
| Sample Composition |
Contains proteins / TRIS / sulfides (aqueous) |
| Sample Consistency |
Emulsion Liquid Sludge / slurry / suspension |
| Sample Temperature |
>100°C |
| Minimum Sample Volume uL |
20 mL |
