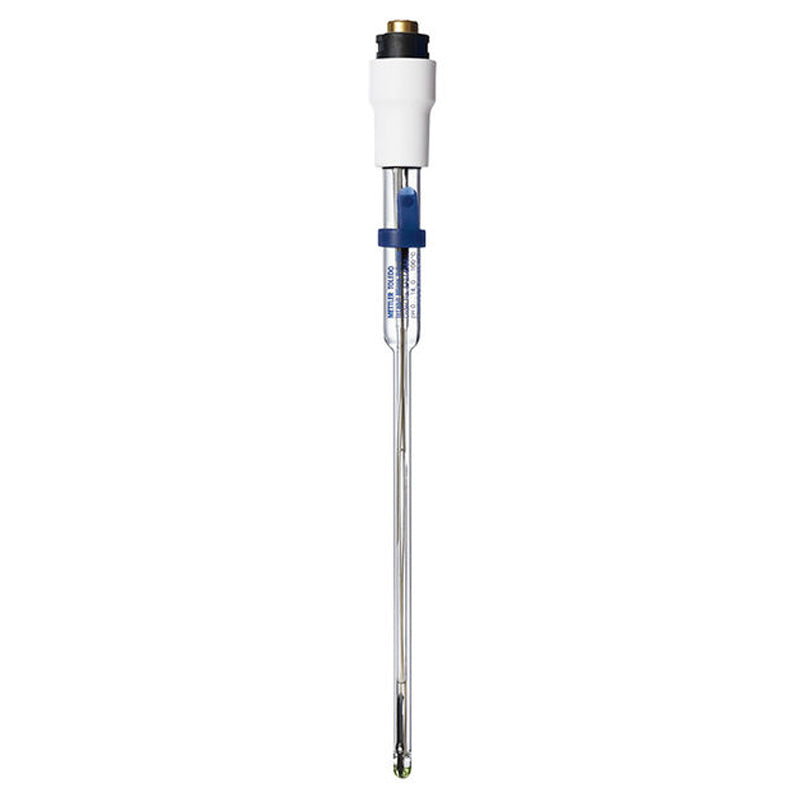

Detailed Description - pH Sensor InLab® Micro Pro-ISM
|
Measurement range |
pH 0–14 |
|
Temperature range |
0 °C – 100 °C |
|
Interface type |
ceramics |
|
Electrode column material |
Glass |
|
Sensor type |
Combined electrode |
|
Electrode column length |
130 mm |
|
Electrode column diameter |
5 mm |
|
parameter |
pH |
|
Reference system |
ARGENTHAL™ (containing Ag+- anion defects) |
|
Reference electrolyte |
3 mol/L potassium chloride |
|
Thin film glass |
IN |
|
Thin film resistor (25°C) |
< 300 MΩ |
|
Intelligent Sensor Management (ISM®) |
yes |
|
Temperature probe |
NTC 30 kΩ |
|
Low maintenance rate |
no |
|
Signal type |
analogy |
|
Reference electrolyte order number |
51343180 |
|
Sensor characteristics |
Chemical stability, small capacity , stored calibration history, temperature probe, automatic sensor identification |
|
Sample volume |
100 µL - 500 µL |
|
Included cable |
no |
|
Meter connector |
Flexibility (detachable cable) |
|
Typical sample |
TRIS buffer protein sample enzyme solution |
|
Connector on the sensor |
MultiPin™ |
|
Sample composition |
Contains protein/TRIS/sulfides (watery) High salt content (watery) |
|
Sample consistency |
liquid |
|
Sample temperature |
0°-100°C |
|
Minimum sample size (uL) |
100 µL |
