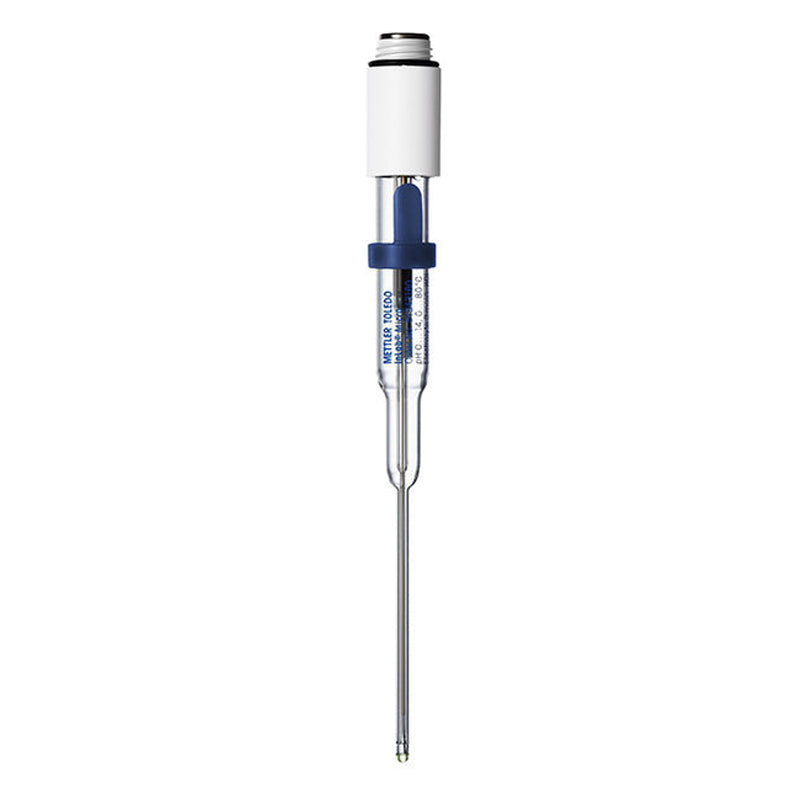

Specifications - pH Sensor InLab® Micro
| Measuring range |
pH 0 – 14 |
| Temperature Range |
0 °C – 80 °C |
| Type of junction |
Ceramic |
| Shaft Material |
Glass |
| Sensor Type |
Combined electrode |
| Shaft length |
60 mm |
| Shaft Diameter |
3 mm |
| Parameter |
pH |
| Reference System |
ARGENTHAL™ with Ag+-trap |
| Reference electrolyte |
3 mol/L KCl |
| Membrane glass |
U |
| Membrane resistance (25°C) |
< 600 MΩ |
| Intelligent Sensor Management (ISM®) |
No |
| Temperature Probe |
No |
| Low Maintenance |
No |
| Signal type |
Analog |
| Reference electrolyte Order no. |
51343180 |
| Sensor Characteristics |
Chemically robust Small Volume |
| Sample Volume |
< 100 µL |
| Cable Included |
No |
| Connector to Meter |
Flexible (detachable cable) |
| Typical Samples |
Enzyme solution Proteinaceous samples TRIS buffers |
| Connector on Sensor |
S7 |
| Sample Composition |
Aqueous Contains proteins / TRIS / sulfides (aqueous) High salt content (aqueous) |
| Sample Consistency |
Liquid |
| Sample Temperature |
0°-100°C |
| Minimum Sample Volume uL |
45 µL |
