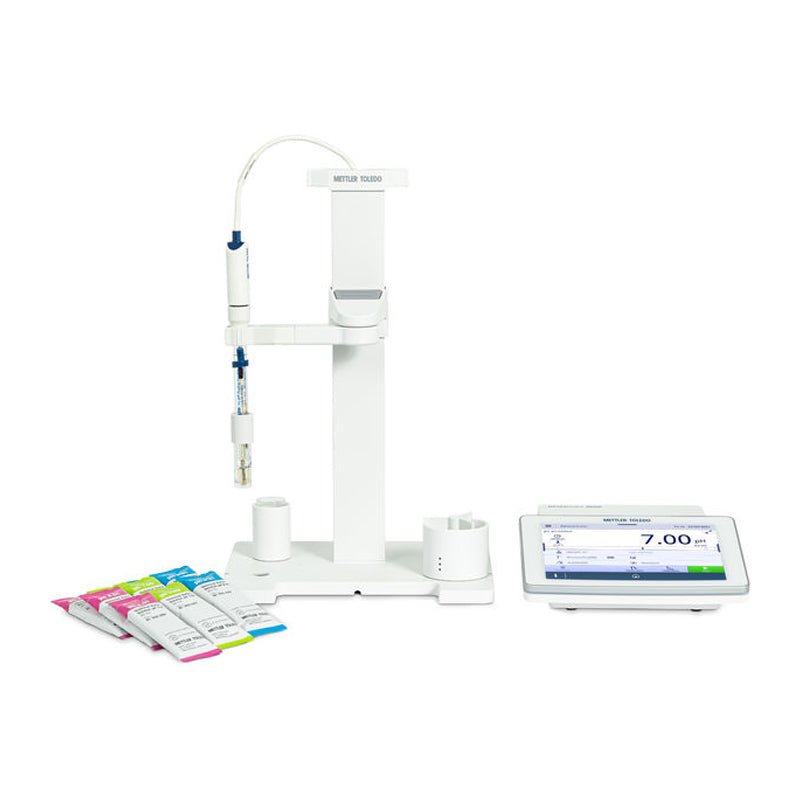

Specifications - pH meter SevenDirect SD20 HA Kit
| Parameter |
ORP pH |
| Channel |
Dual-channel |
| Version kit |
Ready-to-measure kit |
| Sensor |
InLab Routine Pro-ISM |
| pH resolution |
0.1 0.01 0.001 |
| pH accuracy (±) |
0.002 |
| mV resolution |
0.1 1 |
| mV accuracy (±) |
0.1 |
| Temperature Range |
-30 °C – 130 °C |
| Temperature resolution |
0.1 °C |
| Temperature accuracy (±) |
±0.1 °C between 0 °C and 100 °C |
| Ease of Use |
Touch screen Calibration Support Guided Verification Simple Methods Multilingual Menu |
| Security and compliance |
GLP User management |
| Memory Size |
2000 standard measurements |
| Data Transfer |
PC Printer USB stick |
| Flexibilty and modularity |
Barcode reader Stirrer |
| Protection Rating |
Watertight and dustproof (IP54) |
| Sensor Included |
Generalist (chemical resistant glass) |
| Display Type |
7" Color TFT |
| Meter Type |
Benchtop Single-Channel |
| mV measuring range |
-2000..2000 mV |
| Dimensions |
195x205x65 mm |
| Weight |
850 g |
| Connectors |
BNC RCA / Cinch USB A USB B Mini-DIN for stirrer |
| Compatible with Intelligent sensor management (ISM) |
Yes |
| Portable Meter |
No |
| Product Line |
SevenDirect |
