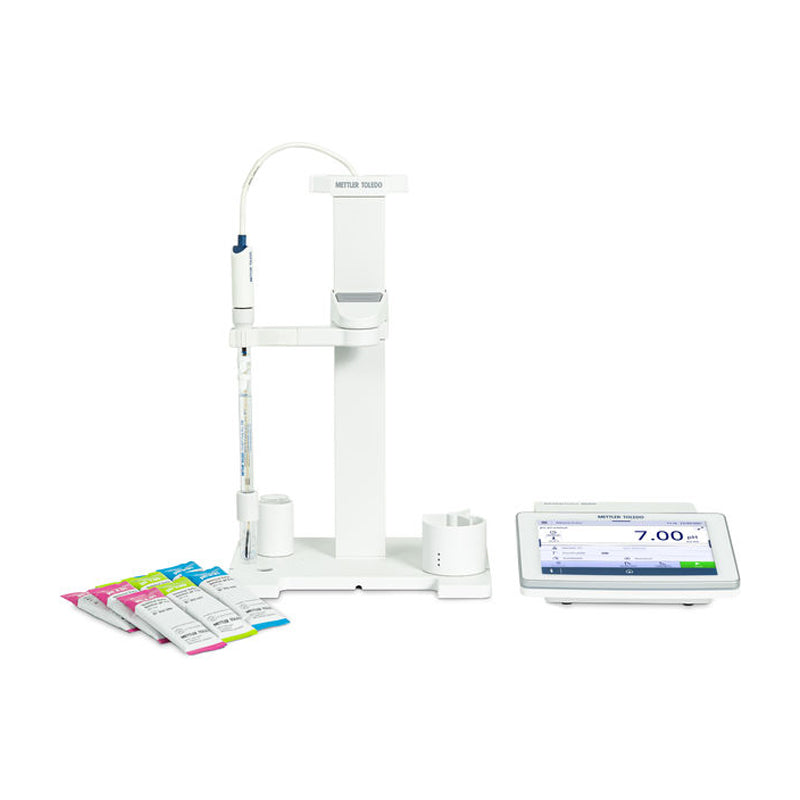

Detailed Description - pH/Ion meter SevenDirect SD50 Pure H2O
|
parameter |
pH Oxidation-Reduction Potential (ORP) Ions |
|
aisle |
single channel |
|
Version kit |
Measuring kit available at any time |
|
sensor |
InLab Pure Pro-ISM |
|
pH value resolution |
0.1 0.01 0.001 |
|
pH value accuracy (±) |
0.002 |
|
Ion concentration measurement range |
-2.000 – 20.000 pX 0 – 999 999 mg/L (ppm) |
|
Ion concentration resolution |
3 or 4 digits (range automatically determined) |
|
Ion concentration accuracy (±) |
0.5 % |
|
mV resolution |
1 0.1 |
|
mV accuracy (±) |
0.1 |
|
Temperature range |
-30 °C – 130 °C |
|
Temperature resolution |
0.1 °C |
|
Temperature accuracy (±) |
±0.1°C between 0°C and 100°C |
|
Easy to use |
Touchscreen; Calibration support; Guided verification; Simple method; Multilingual menu |
|
Safety and compliance |
GLP User Management |
|
Memory size |
2000 standard measurements |
|
Data transmission |
USB flash drive, personal computer, printer |
|
Flexibility and Modularity |
Mixer barcode reader |
|
Protection level |
Waterproof and dustproof (IP54) |
|
Includes sensors |
Sensor for pure water |
|
Display type |
7-inch color TFT |
|
Meter type |
Desktop single channel |
|
mV measurement range |
-2000..2000 mV |
|
External dimensions |
195x205x65 mm |
|
weight |
850 g |
|
connector |
BNC; RCA / Cinch; 2 mm reference; USB A (x2); USB B; Mini DIN; (for mixers) |
|
Compatible with Intelligent Sensor Management (ISM) |
yes |
|
Portable measuring instrument |
no |
|
Product Line |
SevenDirect |
