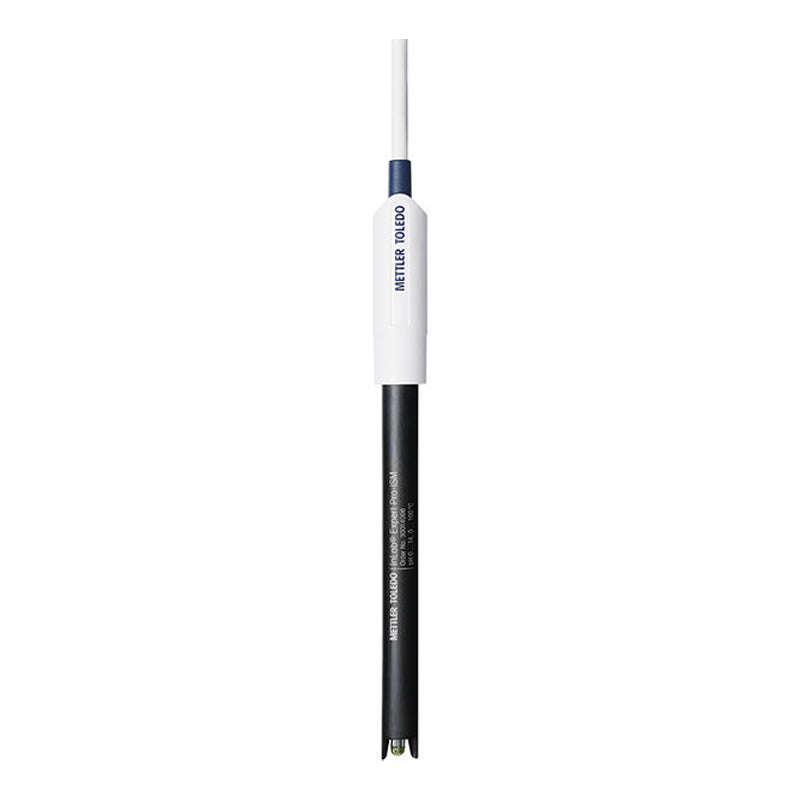

Specifications - pH Electrode INLAB EXPERT PRO-ISM
|
Measurement range |
pH 0–14 |
|
Temperature range |
0 °C – 100 °C |
|
Liquid network type |
Open liquid complex |
|
Electrode rod material |
PEEK |
|
Electrode type |
Composite electrode |
|
Electrode rod length |
120 mm |
|
Electrode rod diameter |
12 mm |
|
cable |
1.2 m |
|
parameter |
pH |
|
Reference system |
ARGENTHAL™ (with Ag+- trap) |
|
Reference electrolyte |
XEROLYT® Polymers |
|
Glass Sensitive Film |
U |
|
Membrane impedance (25°C) |
< 250 MΩ |
|
Intelligent Electrode Management (ISM®) |
yes |
|
Temperature probe |
NTC 30 kΩ |
|
Minor maintenance |
yes |
|
signal type |
simulation |
|
Characteristics of electrodes |
Stored calibration history, mechanical stability, temperature probe, automatic electrode identification |
|
Sample volume |
>= 20 mL |
|
Includes cable |
have |
|
Instrument connector |
BNC/RCA (Cinch) |
|
Typical sample |
Beer, suspended soil water |
|
Connector on the electrode |
1.2 m fixed cable |
|
Sample composition |
Water-based |
|
Sample consistency |
sludge/mud/suspension liquid |
|
Sample temperature |
0°-100°C |
|
Minimum sample volume (µL) |
20 mL |
|
Minimum sample size (uL) |
20 mL |
