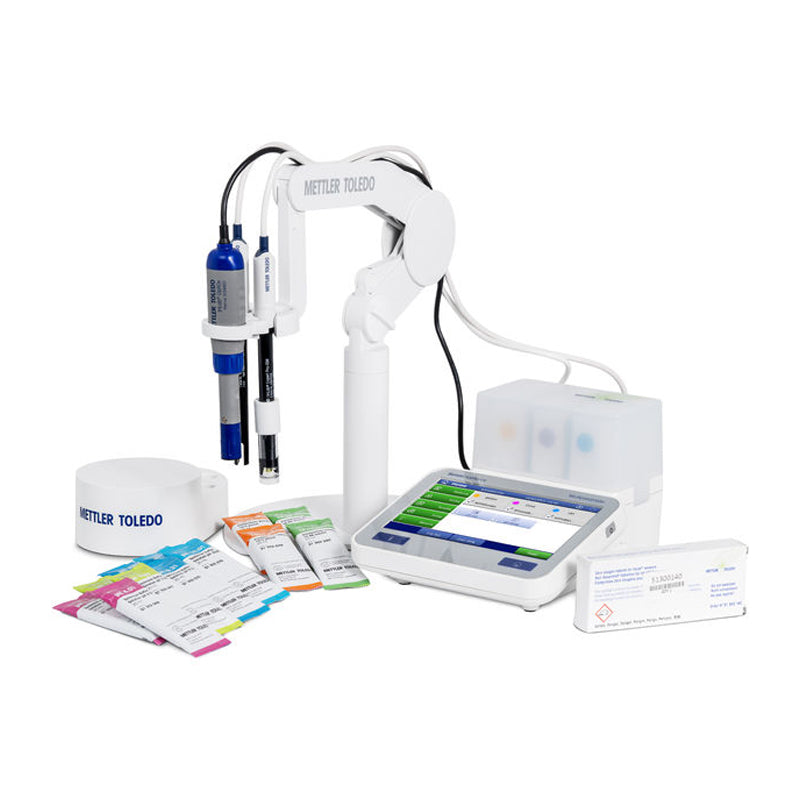

Specifications - Multi-parameter tester S975 - uMix
|
parameter |
ORP, pH, dissolved oxygen, conductivity , ions |
|
aisle |
Multi-channel |
|
electrode |
InLab 731-ISM InLab Expert Pro-ISM InLab OptiOx-ISM |
|
pH resolution |
0.001 0.01 0.1 |
|
pH accuracy (±) |
0.002 |
|
Conductivity measurement range |
0.001 μS/cm–2000 mS/cm |
|
Conductivity resolution |
0.001 – 1 |
|
Conductivity accuracy (±) |
0.5% |
|
Ion concentration measurement range |
1.00E-9–9.99E+9 |
|
Ion concentration resolution |
3 digits (depending on the unit) |
|
Ion concentration accuracy (±) |
0.5% |
|
Dissolved oxygen measurement range |
0.000–99 mg/L (ppm) |
|
Dissolved oxygen resolution |
0.001 |
|
Dissolved oxygen accuracy (±) |
± 0.1 mg/L, 0–8 ± 0.2 mg/L, 8–20 ± 10%, 20–50 |
|
mV resolution |
0.1 1 |
|
mV accuracy (±) |
0.1 |
|
Temperature range |
-30 °C – 130 °C |
|
Temperature resolution |
0.1 °C |
|
Temperature accuracy (±) |
0.1 °C |
|
Simple to operate |
Touchscreen; OneClick method; Multilingual menu; Calibration support |
|
Security and compliance |
GLP password protection programs standard operating procedures to support 21 CFR Part 11 user management. |
|
Storage capacity |
250 analytical values (20,000 data points) |
|
Data transmission |
USB flash drive, printout, computer |
|
Flexibility and modularity |
LabX software upgrade to other parameters: mixer , barcode reader, automation. |
|
Including electrodes |
general electrode |
|
language |
Chinese, Russian , German, Italian , Japanese , French , English, Portuguese , Spanish , Korean |
|
Accessories |
Umix Blender |
|
Display type |
TFT touch screen |
|
Instrument type |
Desktop multi-channel |
|
mV measurement range |
-2,000.000–2,000.000 |
|
External dimensions |
235x188x75 mm |
|
weight |
1510 g |
|
connector |
RS232, USB-A, USB-B, LAN, Mini DIN; BNC; Cinch/RCA; Mini LTW |
|
Compatible with Intelligent Sensor Management (ISM) |
yes |
|
Portable instrument |
no |
|
Product Line |
Seven Excellence |
