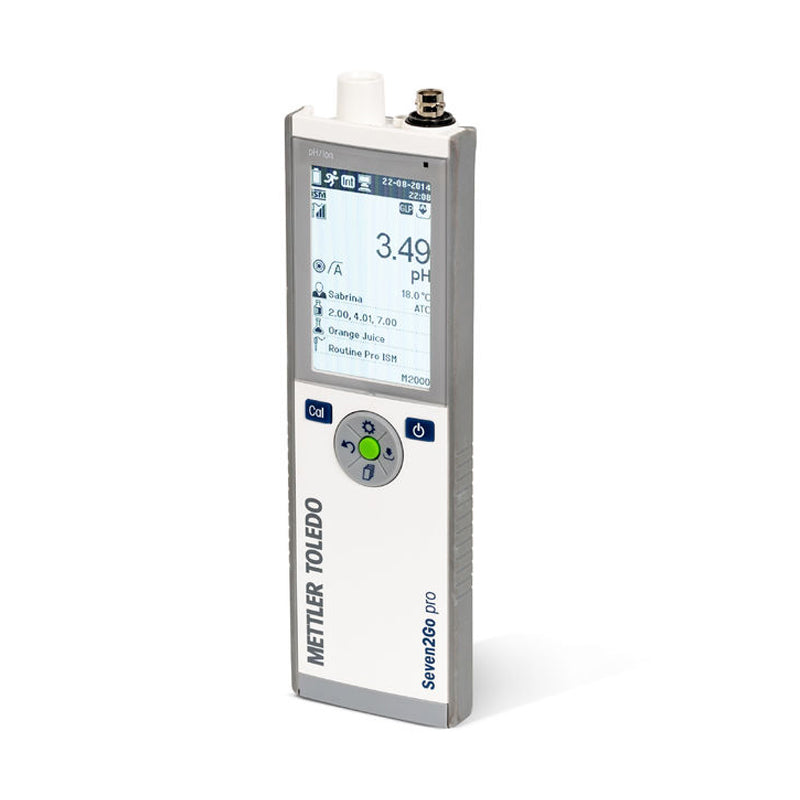

Specifications - Multi-parameter tester S8 - Meter
|
parameter |
pH ions ORP |
|
aisle |
single channel |
|
Storage capacity |
2,000 measurements |
|
Protection level |
Waterproof and dustproof (IP67) |
|
Simple to operate |
Multilingual menu; Calibration support; Backlight |
|
Instrument type |
Portable single channel |
|
External dimensions |
222x70x35 mm |
|
Display type |
Graphical LCD display |
|
Including electrodes |
No |
|
connector |
BNC; Cinch/RCA; 2 mm Ref |
|
Compatible with Intelligent Sensor Management (ISM) |
yes |
|
Temperature resolution |
0.1 °C |
|
Temperature range |
-30 °C – 130 °C |
|
weight |
290 g |
|
Product line |
Seven2Go |
|
Portable instrument |
yes |
|
Data transmission |
computer |
|
Security and compliance |
Password-protected GLP user management |
|
language |
English, Italian , French, Polish , Russian, Portuguese, Chinese , Korean , German, Spanish , Thai, Japanese |
|
pH measurement range |
-2 – 20 |
|
pH resolution |
0.001 0.01 0.1 |
|
pH accuracy (±) |
0.002 |
|
Ion concentration resolution |
3 or 4 digits (auto-range) |
|
Ion concentration accuracy (±) |
0.5% |
|
mV resolution |
0.1 1 |
|
mV accuracy (±) |
0.1 |
|
Ion concentration measurement range |
1.00E-9–9.99E+9 |
|
mV measurement range |
-2000..2000 mV |
