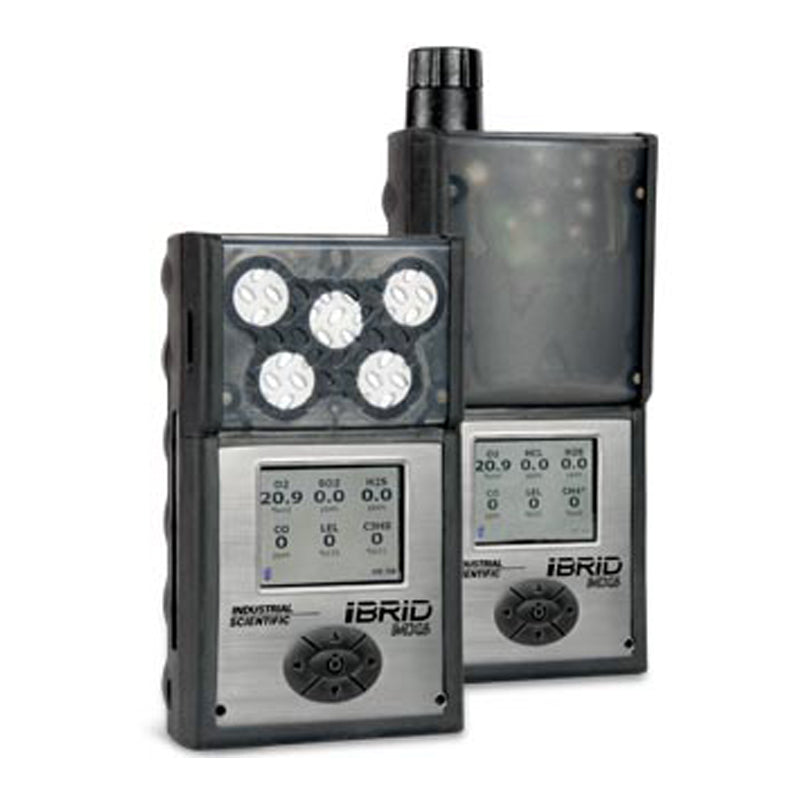

Industrial Scientific MX6 Multi-Gas Detector

*Please consult before ordering (price determined by configuration)

■ Full-color gas detector
■ Detects 6 gases, supports infrared and PID sensors
■ Menu-based operation with real-time trend analysis
■ Large data logger with 520,000 rows

Detectable gases: CH4, Cl2, ClO2, CO, CO2, H2, H2S, HCl, HCN, LEL, NO2, NO, NH3, O2, PH3, PID, SO2

Methane, chlorine, chlorine dioxide, carbon monoxide, carbon dioxide, hydrogen, hydrogen sulfide, hydrogen chloride, hydrogen cyanide, LEL, nitrogen dioxide, nitric oxide, ammonia, oxygen, phosphine, volatile organic compounds, sulfur dioxide, benzene

The MX6 iBrid's large color display allows for clear readings in both low-light and high-light environments, enhancing safety. This makes it easier to identify potential gas hazards in outdoor, indoor, and underground work environments.

The MX6 iBrid is available with both diffusion and integrated pumping, greatly facilitating remote measurements for personal protection and confined space entry.

The MX6 iBrid can accommodate electrochemical, catalytic combustion, infrared, and PID sensors, providing efficient options for users in a wide range of industries. Furthermore, the MX6 iBrid's intuitive computer-based menu and five-way navigation key allow users to easily and intuitively access instrument settings and function selections. Online charting displays real-time readings and logged data. The MX6 iBrid's large data storage and download capabilities provide users with comprehensive data review and processing capabilities. Housed in a rugged enclosure, the MX6 iBrid is fully compatible with the DSX instrument management platform and iNet instrument network.

Gas
Chemical Formula
Measurement Range
Resolution
Combustible Gas LEL (Catalytic Combustion) 0-100% LEL 1%/10 ppm
Combustible Gas (Optional) LEL (Infrared) 0-100% LEL 1%
Methane (CH4) (Catalytic Combustion) 0-5% Vol 0.01%
Methane (Optional) CH4 (Infrared) 0-100% Vol 1%
Oxygen (O2) 0-30% Vol 0.1%
Carbon Monoxide (CO) 0-1,500 ppm 1 ppm
Carbon Monoxide (Optional) CO 0-9,999 ppm 1 ppm
Hydrogen Sulfide (H2S) 0-500 ppm 0.1 ppm
Carbon Monoxide/Hydrogen Sulfide** (CO/H2S) (CO) 0-1,500 ppm
(H2S) 0-500 ppm (CO) 1 ppm
(H2S) 0.1 ppm
Hydrogen (H2) 0-2,000 ppm 1 ppm
Nitrogen oxide (NO) 0-1,000 ppm 1 ppm
Chlorine (Cl2) 0-50 ppm 0.1 ppm
Nitrogen dioxide (NO2) 0-150 ppm 0.1 ppm
Sulfur dioxide (SO2) 0-150 ppm 0.1 ppm
Hydrogen cyanide (HCN) 0-30 ppm 0.1 ppm
Hydrogen chloride (HCl) 0-30 ppm 0.1 ppm
Ammonia (NH3) 0-500 ppm 1 ppm
Chlorine dioxide (ClO2) 0-1 ppm 0.01 ppm
Phosphine (PH3) 0-5 ppm 0.01 ppm
Phosphine (optional) PH3 0-1,000 ppm 1 ppm
Carbon Dioxide (CO2) 0-5% Volatile Organic Compounds (PID) 0-2,000 ppm 0.1
