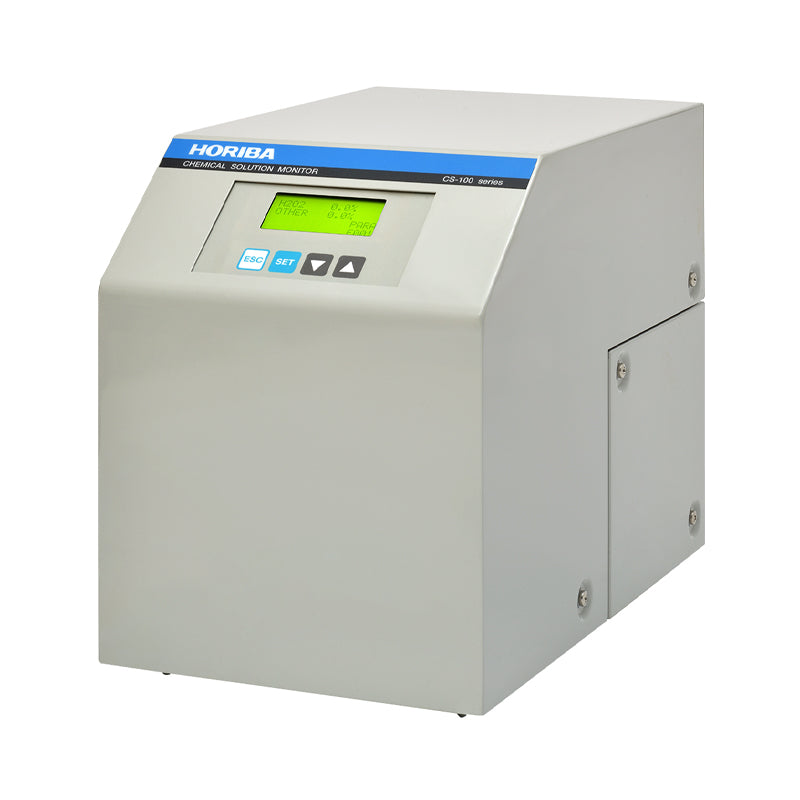

HORIBA Stand-alone Type Chemical Concentration Monitor CS-100 Series
HORIBA Stand-alone Type Chemical Concentration Monitor CS-100 Series
常规价格
$5,846.15 USD
常规价格
促销价
$5,846.15 USD
单价
/
单价
无法加载取货服务可用情况
* Please consult before ordering
Stand-alone Type Chemical Concentration Monitor
CS-100 Series
A series of chemical concentration monitors for various chemicals used in the wet process.
The optimal model to suit chemicals from among over 100 different applications can be chosen. Measurements of the concentration of each component can be taken in real-time, providing notifications using alarms to signal the timing of chemical exchange and automatic replenishment. Short measurement cycles to faithfully track concentration changes can be achieved.
Model name |
CS-100 |
---|---|
Measurement principle | Absorption spectroscopic method |
Sample temperature | 20 to 30 Degree C |
Ambient temperature | 20 to 25 Degree C |
Components | Max. 4 components |
Chemical range | Max. 4 ranges |
Communication | Parallel I/O, Analog output, RS-232C |
Analog output (4-20 mA) |
Max. 2 components |
Dimension | 205(W) X 329(D) X 269(H)mm |
Power source | DC 24V |
Consumable parts | Halogen lamp |
Wavelength | UV/NIR |
Wetted material | PTFE, PFA, Sapphire or Quartz |
