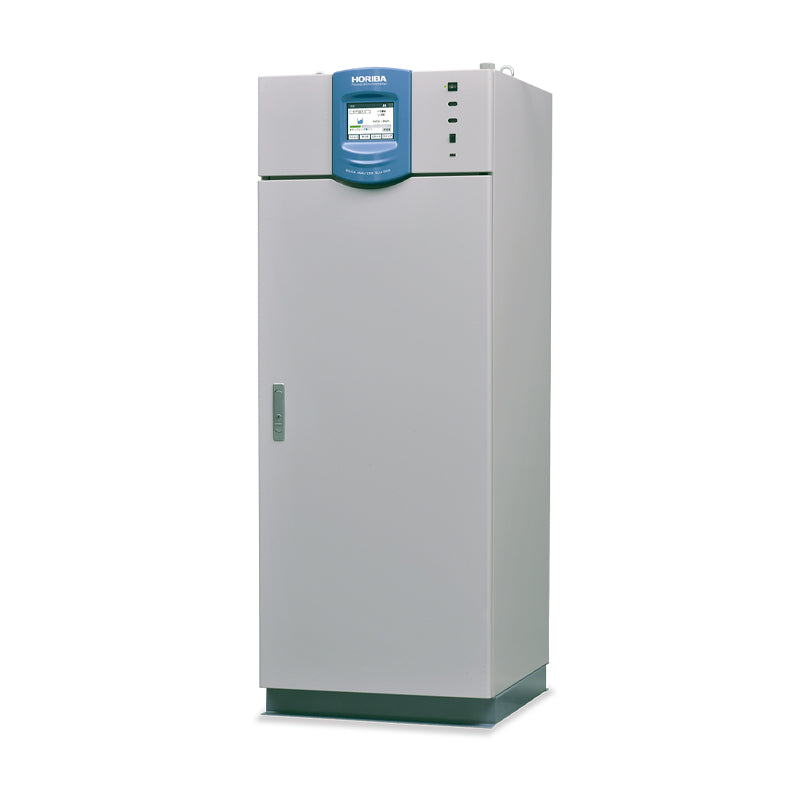

HORIBA Silica analyzer SLIA-5000

HORIBA Silica analyzer SLIA-5000

$17,692.31 USD
$17,692.31 USD
促销 售罄

* Please consult before ordering

Silica analyzer

SLIA-5000

Rapid automated measurement of trace silica in boiler water and purified water treatment systems.

In order to efficiently drive turbines using high-temperature and high-pressure steam in power plants such as thermal and nuclear power plants, it is crucial to manage silica (SiO2), which can be a major cause of scaling. Combining HORIBA's extensive track record and technical expertise, maintaining the stability, reliability, and maintainability of our previous models, while enhancing usability through the introduction of a touch panel interface.

SILICA

*

General
specifications		 Equipment name SILICA ANALYZER
Model SLIA-5000
Dimensions 600 (W) mm × 750 (H) mm × 1600 (D) mm
Mass Approximately 130 kg
Power supply 100 V AC ±10%, 50/60 Hz
(Option) 110 V AC/115 V AC/120 V AC/220 V AC/230 V AC/240 V AC/
240 V AC±10%, 50/60 Hz
Power
consumption		 Approximately 500 VA
Performance Measurement
range
  • 0 μg/L to 10 μg/L/0 μg/L to 100 μg/L
  • 0 μg/L to 50 μg/L/0 μg/L to 500 μg/L
  • 0 μg/L to 100 μg/L/0 μg/L to 1000 μg/L
  • 0 μg/L to 200 μg/L/0 μg/L to 2000 μg/L
  • 0 mg/L to 0.50 mg/L/0 mg/L to 5.00 mg/L
    (Either is specified when receiving the order)
Resolution
(Unit setting: μg/L)		 0.1 μg/L Data＜100 μg/L
1 μg/L 100 μg/L≦Data≦5000 μg/L
Resolution
(Unit setting: mg/L)		 0.0001 mg/L Data＜0.1 mg/L
0.001 mg/L 0.1 mg/L≦Data≦5.0 mg/L
Repeatability ±2% of the full scale
Measurement
principle		 Molybdenum blue method
Number of
measurement
points		 1 point to 4 points (specified when receiving the order)
Measurement time 5 minutes
Measurement cycle Specified as desired between 5 minutes and 999 minutes
Calibration Zero Each measurement
Span Equalizing filter method
Reagent
replacement cycle		 Once a week (reagent storage: 30℃ or below)
Installation
conditions		 Ambient
temperature		 0℃ to 45℃
Ambient humidity Relative humidity 85% or less (no condensation)
Ambient
environment
  • Indoor installation type
  • Transient overvoltage of main power supply: Overvoltage Category II
    (EN61010-1), Pollution Degree 2
  • Flat surface that is not subject to vibration and external shock
  • No dust, mist, or corrosive gas is present in the atmosphere
  • Under atmospheric pressure
  • No direct sunlight
  • Well-ventilated area
Measurement
conditions		 Sample conditions Temperature 2℃ to 40℃ (36°F to 104°F)
Flow rate 0.5 L/min to 1.0 L/min
Pressure 0.02 MPa to 0.20 MPa
pH value 11.0 or less
Coexisting phosphate
ion concentration		 20 mg/L or less
However, no phosphate ions are permissible for the 0 μg/L to 10 μg/L/
0 μg/L to 100 μg/L range (ultrapure water specification)
External
input/output		 Analog output Concentration output
4 mA DC to 20 mA DC or 0 mA DC to 16 mA DC, selection setting in the operation section
Marker/hold output, selection setting in the operation section
Maximum load of 500 Ω or less, input/output isolation type, nonisolated between channels
Option: 0 V DC to 1 V DC, 1 V DC to 5 V DC
Contact output Standard a-contact output (b-contact can be specified when receiving the order)
Contact rating 250 V 3 A AC, 30 V 3 A DC
Measurement line
shared		 Meas., Standby, Maintenance, External control,
Sync. Signal, Equipment Err., Power, etc.
Measurement line
individual		 Line, Sample Lack, Abnormal concentration,
etc.
Contact input No-voltage a-contact input (open collector is available)
Isolated input: Common to the (-) side
ON resistance 100 Ω (max.)
Open-circuit voltage 26 V DC (max.)
Short-circuit current 13 mA DC (max.)
Measurement line
shared		 Meas. Start, Cal. Start
Measurement line
individual		 MEAS. LINE SET, MEAS. RANGE SET
Equipment
function		 Display Color touch panel type liquid crystal
Memory function Measurement value Memory for over 1 year
Alarm history 500 events
Calibration history 100 events
Operation history 100 events
USB external memory device can be used
Option Filter for sample line
(For Line 1 to Line 4)

By installing about 5 μm cartridge filter in the upstream of the overflow tank, it is possible to prevent iron rust, etc. from entering the equipment.

  • Up to 2 filters can be built into the product.
  • If the optional filter is selected for the product of 3 or 4 measurement
    points, the filter is not built into the product but is delivered individually as a single filter.
  • If a step-down transformer is installed (power supply voltage is other
    than 100 V AC), a filter cannot be built into the product.
Flowmeter for sample
line
(For Line 1 to Line 4)		 By adding this, you can accurately measure the sample supply flow rate.
