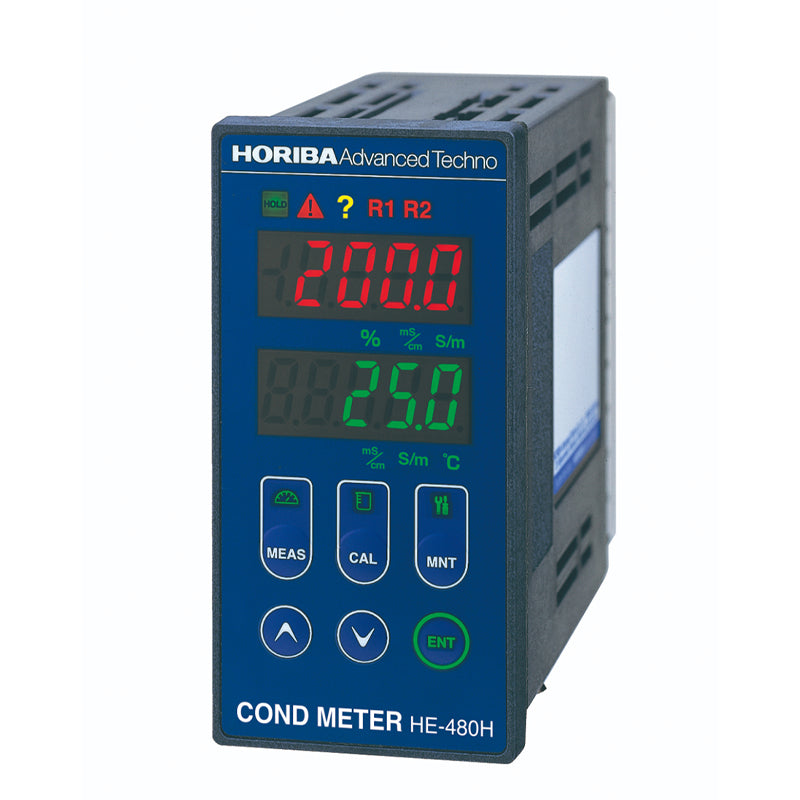

HORIBA Panel-mount type conductivity meter (conductivity meter) HE-480H

HORIBA Panel-mount type conductivity meter (conductivity meter) HE-480H

$2,461.54 USD
$2,461.54 USD
促销 售罄

* Please consult before ordering

Panel-mount type conductivity meter (conductivity meter)

HE-480H

For monitoring wastewater treatment, seawater, and hydroponic nutrient solutions.

Actively monitors wastewater treatment, seawater, and hydroponic nutrient solutions. A lineup of sensors that are suitable for various sample characteristics are offered. The use of panel-mounted transmitters allows for cost savings at the time of installation.

Product name Industrial conductivity meter
Model HE-480H
Measurement
method		 Electrode type (4-electrode method)
Cell constant 1.0/cm
Measuring range* Measurement range
(S/m)		 0.000 to 2.000 0.00 to 20.00 0.00 to 50.00
Measurement range
(mS/cm)		 0.00 to 20.00 0.0 to 200.0 0.0 to 500.0
Seawater salinity
conversion value (%)		 0.00 to 4.00
NaCl salinity
conversion value (%)		 0.0 to 20.0
Temperature 0℃ to 100℃
(The displayed decimal place is selectable among 0, 1, and 2.)
Repeatability Conductivity display Within ±0.5% of the full scale (in equivalent input)
Salinity conversion display Within ±1% of the full scale
Linearity Conductivity display Within ±0.5% of the full scale (in equivalent input)
Salinity conversion display Within ±1% of the full scale
Transmission
output		 4 mA to 20 mA DC: input/output isolated type
Maximum load resistance: 900Ω
Transmission output range: Freely selectable within the measurement range
Contact output Outputs: 2 points
Alarm contact output (R1 and R2)
　Contact type: relay contact, SPDT (1c)
　Contact rating: 240 V AC, 3 A and 30 V DC, 3 A (resistance load)
　Contact function: selectable from upper/lower limit operation (ON/OFF control), alarm, and maintenance.
Calibration function Conductivity: Based on the specified compensation coefficient for the cell constant
(parameter input)
Temperature: Calibrated by comparing with the reference thermometer
Transmission
output hold feature
  • Previous value hold
  • Optional value hold
  • Continuous
    Selectable from the above (However, only the previous value hold is available in the maintenance mode.)
Self-diagnosis
function
  • Sensor diagnosis
    Short-circuit and disconnection of the temperature sensor
  • Out of the measurement range
  • A/D converter scale over
  • Converter error
Temperature
compensation
  • Temperature characteristics of NaCl
  • Freely selectable reference temperature and temperature coefficient
Measurement range Reference
temperature		 Temperature
coefficient
0.000 S/m to 2.000 S/m
(0.00 mS/cm to 20.00 mS/cm)		 5℃ to 95℃ ±5%/℃
0.00 S/m to 20.00 S/m
(0.0 mS/cm to 200.0 mS/cm)		 25℃ ±3.5%/℃
0.00 S/m to 50.00 S/m
(0.0 mS/cm to 500.0 mS/cm)		 No temperature compensation
scrollable
  • No temperature compensation
Temperature compensated range 0℃ to 100℃
Ambient
temperature		 -5℃ to 45℃
Relative humidity 20% to 85% (without dew condensation)
Storage
temperature		 -25℃ to 65℃
Power supply Rated voltage 100 V to 240 V AC, 50/60 Hz, 10 VA (max.)
Structure Indoor-use panel installation type
Panel case: ABS, Terminal: PBT
Panel: IP65 dust and water proof structure
Protective structure Panel: IP65 (IEC60529, JIS C0920)
Rear case: IP20, Terminal:IP00
Class II device (IEC61010-1)
Pollution level 2 (IEC61010-1)
Conforming
standards		 CE Marking EMC Directive: EN61326-1
Low Voltage Directive: EN61010-1
RoHS Directive: EN50581
FCC Rule FCC Part15
External
dimensions		 48 (W) mm × 96 (H) mm × 115 (D) mm
Case depth: approx. 105 mm
Mass Approx. 400 g
Compatible sensors FES series conductivity sensor, cell constant 100/m (1.0/cm)
(The measurement range differs depending on the sensor model.)
