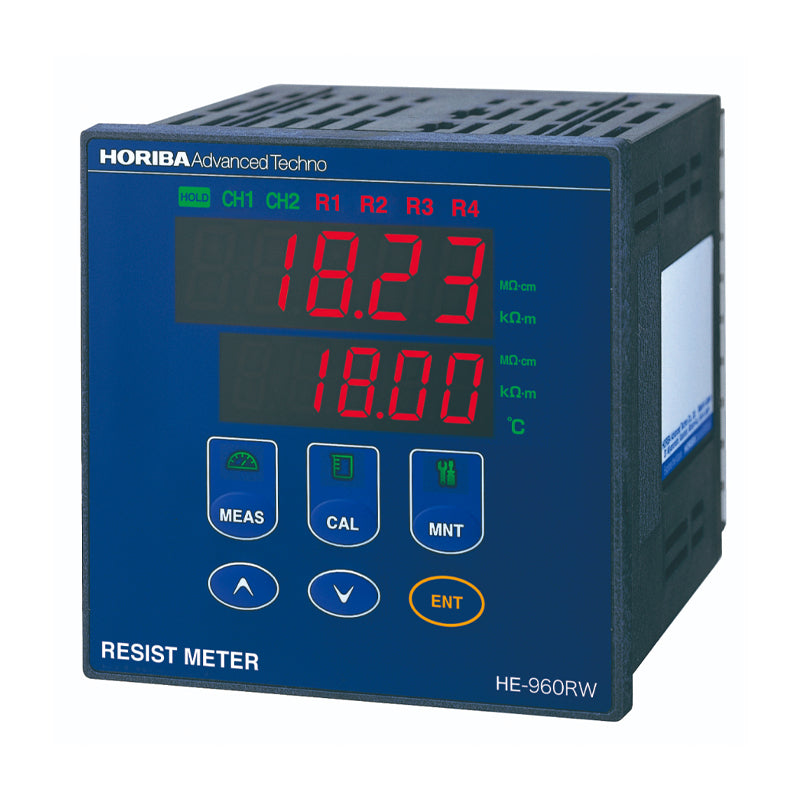

HORIBA Panel-mount type 2-channel electric resistivity meter (resistivity meter) HE-960RW

HORIBA Panel-mount type 2-channel electric resistivity meter (resistivity meter) HE-960RW

$2,461.54 USD
$2,461.54 USD
促销 售罄

* Please consult before ordering

Panel-mount type 2-channel electric resistivity meter (resistivity meter)

HE-960RW

For control and monitoring treatment and production processes of pure water and ultra-pure water.

A high-grade resistivity meter that significantly improves critical temperature compensation performance for resistivity measurements of UPW (ultra-pure water) and high-temperature pure water, through adopting a newly designed temperature measurement circuit. Highly stable resistivity measurements are achieved through resistance to changes not only in water temperature, but also in ambient temperature.

Product name Industrial 2-channel specific resistance meter
Model HE-960RW
Measurement
method		 Electrode type (2-electrode method)
Sensor input 2 channels (for concurrent measurement with sensors isolated each other)
Cell constant 0.01/cm
Temperature sensor
specifications		 Platinum resistance 1000 Ω/0℃
Measuring range Measurement unit kΩ•m 0 to 20.0 0 to 200.0 0 to 1000 *
MΩ•cm 0 to 2.00 0 to 20.00 0 to 100.0 *
*: Measurable without temperature compensation
Temperature    
  		 0℃ to 100℃
(The number of digits after the decimal point is selectable from one and two. The range of measurements is −20℃ to 120℃.)
Desalination rate 0% to 100%
Temperature: 0℃ to 100℃ (Select your desired decimal point from 0, 1, and 2 digits.)
Repeatability Within ±0.1% of the full scale (in equivalent input)
Linearity Within ±0.5% of the full scale (in equivalent input)
Transmission
output		 Number of outputs: 2
4 mA to 20 mA DC/0 mA to 20 mA DC, input/output isolated type
Maximum load resistance: 900 Ω
Transmission output range: Freely selectable within the measurement range
(Negative terminals of each transmission output channel are connected inside and thus have the same electric potential.)
Contact output Number of outputs: 4
Alarm contact outputs (R1, R2, and R3)
　　Contact type: relay contact, SPST (1a)
　　Contact rating: 240 V AC, 3 A and 30 V DC, 3 A (resistance load)
　　Contact function: selectable from the upper/lower limit action (ON/OFF control), delay, and hysteresis
　　Selectable from the selected measurement, anomaly alarm, and maintenance.
Alarm contact output (R4)
　　Contact type: relay contact, SPDT (1c)
　　Contact rating: 240 V AC, 3 A and 30 V DC, 3 A (resistance load)
　　Contact function: selectable from the upper/lower limit action (ON/OFF control), delay, and hysteresis
　　Selectable from the selected measurement, anomaly alarm, and maintenance.
　 (However, R1 and R2, and R3 and R4 share the common contacts respectively.)
Calibration function Specific resistance: Based on the specified compensation coefficient for cell constant (parameter input)
Temperature: Calibrated by comparing with the reference thermometer
Communication
output		 RS-485 input/output
Transmission
output hold feature
  • Previous value hold
  • Optional value hold
    Selectable from the above (However, only the previous value hold is available in the maintenance mode.)
Self-diagnosis
function
  • Sensor diagnosis
    Short-circuit and disconnection of the temperature sensor
  • Out of the measurement range
  • Converter error
Temperature
compensation
  • Temperature compensation for extra-deionized water and impurities
    　 Select the temperature characteristics of impurities
    　 - NaCl temperature characteristics
    　 - Arbitrary temperature coefficient entry (temperature coefficient: 5%/℃)
    　 Reference temperature: 5℃ to 95℃
  • No temperature compensation is performed.
Temperaturecompensated
range		 0℃ to 100℃
Extra deionized
water specific
resistance selection		 Measurement
unit		 kΩ•m 182.3 (standard), 181.8, 182.4 Select from options shown on the left.
MΩ•cm 18.23 (standard), 18.18, 18.24
Clipping function When the measured value is above the upper limit of the measurement range derived from the specified specific resistance, the specified resistance is used as the measured value.
Ambient
temperature		 −5℃ to 45℃
Relative humidity 20% to 85% (without dew condensation)
Storage
temperature		 −25℃ to 65℃
Power supply Rated voltage 100 V to 240 V AC, 50/60 Hz, 10 VA (max.)
Structure Indoor-use panel installation type
Panel case: ABS, Terminal: PBT
Panel: IP65 dust and water proof structure
Protective structure Panel: IP65 (IEC60529, JIS C0920)
Rear case: IP20, Terminal:IP00
Class II device (IEC61010-1)
Pollution level 2 (IEC61010-1)
Conforming
standards		 CE Marking EMC Directives: EN61326-2-3
Low Voltage Directive: EN61010-1
RoHS Directive: EN50581
FCC Rule FCC Part15
External
dimensions		 96 (W) mm × 96 (H) mm × 115 (D) mm
Case depth: approx. 105 mm (when panel-mounted)
Mass Approx. 550 g
Compatible sensors ERD/ERF-series specific resistance sensor, cell constant 0.01/cm
