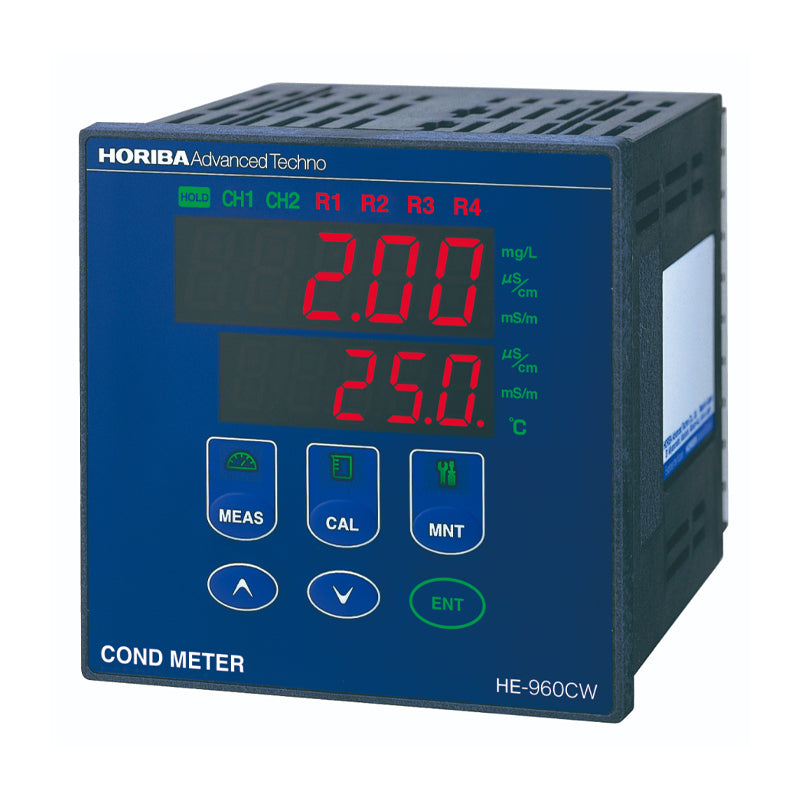

HORIBA Panel-mount type 2-channel conductivity meter (conductivity meter) HE-960CW

HORIBA Panel-mount type 2-channel conductivity meter (conductivity meter) HE-960CW

$2,461.54 USD
$2,461.54 USD
促销 售罄

* Please consult before ordering

Panel-mount type 2-channel conductivity meter (conductivity meter)

HE-960CW

Ideal for pharmaceutical water management and temperature monitoring during Steam-In-Place (SIP) sterilization.

An ideal conductivity meter for water quality management from pure water to 2000 μS/cm.  Specifically designed for the pharmaceutical industry, the water quality determination capabilities are compliant with USP<645> (U.S. Pharmacopeia), making it ideal for the management of pharmaceutical water such as water for injection (WFI). Offering a lineup of sensors for pharmaceutical manufacturing processes that comply with the pharmacopoeias (USP, EP) of various countries, as well as sensors suitable for sample properties. The use of a panel mount transmitter allows for cost reduction at the time of installation.

Product name Industrial 2-channel conductivity meter
Model HE-960CW
Measurement
method		 Electrode type (2-electrode method)
Sensor input 2 channels (for concurrent measurement with sensors isolated each other)
Cell constant 0.01/cm, 0.1/cm, or 1.0/cm
Temperature
sensor
specifications		 Platinum resistance 1000 Ω/0℃
Measuring range Cell constant (/cm) 0.01
(ESD/ESL/ESH-001)		 0.1
(ESD/ESL/ESH/FS-01)		 1.0
(ESD/ESL/ESH-1)
Conductivity
range		 (μS/cm) 2.000/20.00 2.000/20.00/200.0/2000* 200.0/2000
(mS/m) 0.2000/2.000 0.2000/2.000/20.00/200.0* 20.00/200.0
TDS
conversion		 (mg/L) 2.000/20.00 2.000/20.00/200.0/2000* 200.0/2000
*: Applicable for only sanitary sensor (FS-01 series)
Temperature 0℃ to 100℃
Desalination rate 0.0% to 100.0%
Conductivity
difference		 Depends on measurement range of sensor 2 (CH2).
Repeatability Conductivity display Within ±0.5% of the full scale (in equivalent input)
2000 μS/cm and 200.0 mS/m ranges of FS-01: Within ±2% of the full scale
TDS conversion
display		 Within ±1.5% of the full scale (in equivalent input)
Linearity Conductivity display Within ±0.5% of the full scale (in equivalent input)
2000 μS/cm and 200.0 mS/m ranges of FS-01: Within ±2% of the full scale
TDS conversion
display		 Within ±1.5% of the full scale (in equivalent input)
Display/output
range		 Conductivity Measurement range
Temperature −30℃ to 160℃
Desalination rate 0% to 100%
Conductivity
difference		 Measurement range of sensor 2 (CH2)
Transmission
output		 Number of outputs: 4
4 mA to 20 mA DC/0 mA to 20 mA DC, input/output isolated type
Maximum load resistance: 900 Ω
Transmission output range: Freely selectable within the measurement range(Negative terminals of each transmission output channel are connected inside and thus have the same electric potential.)
Contact output
  • Number of outputs: 4
  • Alarm contact outputs (R1, R2, and R3)
      Contact type: relay contact, SPST (1a)
      Contact rating: 240 V AC, 3 A and 30 V DC, 3 A (resistance load)
      Contact function: selectable from the upper/lower limit action (ON/OFF control), delay, and hysteresis.
      Output contents: selectable from the selected measurement, USP assessment,anomaly alarm and maintenance.
  • Alarm contact output (R4)
      Contact type: relay contact, SPDT (1c)
      Contact rating: 240 V AC, 3 A and 30 V DC, 3 A (resistance load)
      Contact function: selectable from the upper/lower limit action (ON/OFF control), delay, and hysteresis.
      Output contents: selectable from the selected measurement, USP assessment,anomaly alarm and maintenance.
      (However, R1 and R2, and R3 and R4 share the common contacts respectively.)
  • Contact operation (operation between C and NO for R1 to R4)
      When selected measurement, USP assessment, or maintenance is selected in output contents:
      Contact point becomes “CLOSE” at control operation and “OPEN” at normal state (including power shutdown).
      When anomaly alarm is selected in output contents:
    Contact point becomes “CLOSE” at normal state and “OPEN” at anomaly state (including power shutdown).
      (When between C and NC is used with R4, contact point becomes reverses state with that of between C and NO.)
Communication
output		 RS-485 input/output
Calibration
function		 Conductivity: Based on the specified compensation coefficient for cell constant (parameter input).
Temperature: Calibrated by comparing with the reference thermometer.
TDS: Conversion using a user-defined coefficient value (0.30 to 1.00).
Transmission
output hold
feature
  • Previous value hold
  • Optional value hold
    Selectable from the above
    (However, only the previous value hold is available in the maintenance mode.)
Self-diagnosis
function
  • Sensor diagnosis
    Short-circuit and disconnection of the temperature sensor
  • Out of the measurement range
  • Converter error
Temperature
compensation
  • Temperature characteristic of NaCl (reference temperature: 5℃ to 95℃)
  • Arbitrary temperature coefficient entry.
    (reference temperature: 5℃ to 95℃: temperature coefficient: ±5%/℃)
    (In the deionized water area, however, the temperature compensation for deionized water is automatically performed in both NaCl and arbitrary temperature coefficient compensation settings.)
  • No temperature compensation
Temperaturecompensated
range		 0℃ to 100℃
Ambient
temperature		 −5℃ to 55℃
Relative humidity 20% to 85% (without dew condensation)
Storage
temperature		 −25℃ to 65℃
Power supply Rated voltage 100 V to 240 V AC, 50 Hz/60 Hz, 25 VA (maximum)
Structure Indoor-use panel installation type
Panel case: ABS, Terminal: PBT
Panel: IP65 dust and water proof structure
Protective
structure		 Panel: IP65 (IEC60529, JIS C0920)
Rear case: IP20, Terminal:IP00
Class II device (IEC61010-1)
Pollution level 2 (IEC61010-1)
Conforming
standards		 CE Marking EMC Directive: EN61326-1
Low Voltage Directive: EN61010-1
RoHS Directive: EN50581
FCC Rule FCC Part15
External
dimensions		 96 (W) mm × 96 (H) mm × 115 (D) mm
Case depth: approx. 105 mm (when panel-mounted)
Mass Approx. 550 g
Compatible
sensors		 Sensor type Model Cell constant (/cm) Temperature
coefficient of
temperature
sensor (ppm/℃)
Insert type ESD/ESL series 0.01, 0.1, 1.0 3750
ESH series 0.01, 0.1, 1.0 3850
Sanitary insert type ESD-01C-SN1.5 0.1 3750
ESH-01C-SN1.5 0.1 3850
Sanitary flow-through
type		 FS-01C-SL series 0.1 3750
FS-01FC-SL series 0.1 3850
