HORIBA Organic pollutant monitor OPSA-150

HORIBA Organic pollutant monitor OPSA-150

$13,538.46 USD
$13,538.46 USD
促销 售罄

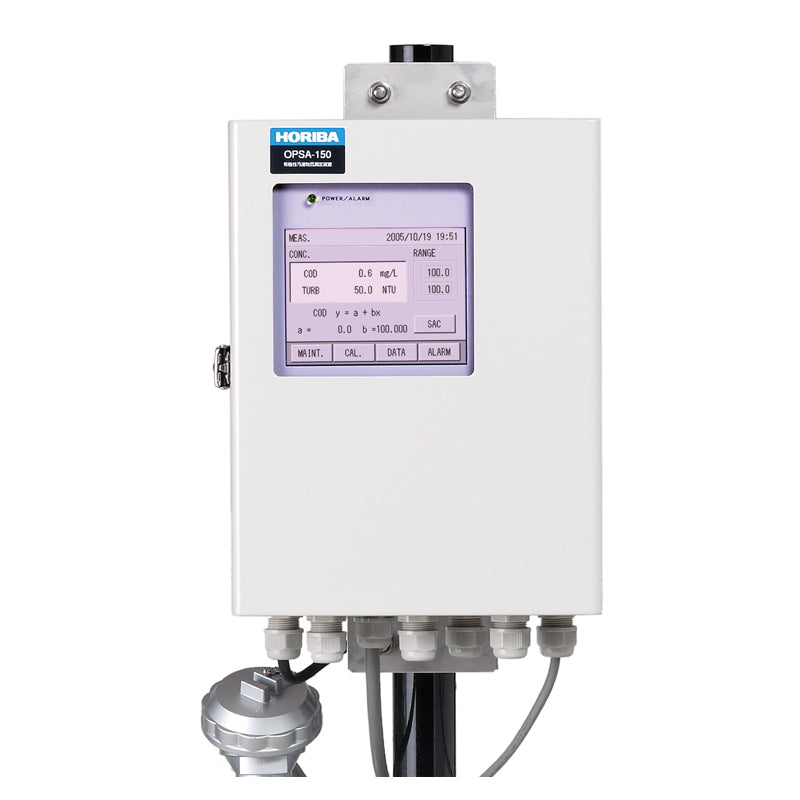

HORIBA Organic pollutant monitor OPSA-150

Organic pollutant monitor

OPSA-150

Long-term stable and high-precision measurements are achieved through our unique rotary cell length modulation method.

An organic pollutant monitor that applies HORIBA's proven and proprietary rotary cell length modulation method which has been developed over many years.  Suitable for use in monitoring organic pollutants at discharge points under the Total Pollutant Load Control System (TPLCS), organic matter measurement at water intake points for monitoring water quality, and monitoring organic substances in process lines (such as phenol meters).

Product name Organic Pollutant Monitor (UV meter)
Model OPSA-150
Measurement item UV absorbance, VIS absorbance, COD conversion concentration, TURB (turbidity) conversion concentration
Measurement principle Dual optical path, Dual wavelength, rotary cell length modulation method
Measurement wavelength Ultraviolet: 253.7 nm, Visible light: 546.1 nm
Structure of analyzer unit Circulation type
Measurement range
(converted by cell 10mm)		 UV absorbance/VIS absorbance
Full scale: 0.1 Abs to 5.0 Abs (setting by 0.1 Abs is possible)
Minimum scale 0.0001 Abs (changeable to 0.001 Abs)
Repeatability Within ±2.0% of full scale
(Within ±5.0% of full scale for 2.6 Abs to 5.0 Abs)
Linearity Within ±2.0% of full scale
(Within ±5.0% of full scale for 2.6 Abs to 5.0 Abs)
Stability Within ±2.0%/24 h of full scale
(Within ±4.0%/24 h of full scale for 2.6 Abs to 5.0 Abs)
Response time T90, within 1 minute (flow rate of approximately 5 L/min)
Cleaning method
(cleaning cycle)		 Automatic cleaning by wiper (automatic continuous cleaning)
Display method LCD display:
320 × 240 monochrome graphics LCD data display with dot backlighting (a touch-panel)
Display content:
UV absorbance, VIS absorbance, UV-VIS absorbance, COD conversion concentration, TURB (turbidity) conversion concentration
Calibration method Solution calibration using zero solution and span solution (calibration solution in the ampoule)
(one-touch calibration is possible)
Sample water condition Temperature: 2°C to 40°C (should not be frozen)
Flow rate of sample water: Min. 2 L/min, Max. 20 L/min
* Keep the unit warm (or preserve the heat) to ensure protection against frozen sample water in the cold weather.
Ambient temperature and
humidity		 Ambient temperature: 0°C to 40°C, Ambient humidity: 85% or below
Analog output Point: 3
Type: arbitrary 3 items from UV absorbance, VIS absorbance, UV-VIS
absorbance, COD conversion concentration, and TURB (turbidity) conversion
concentration (selectable)
Specification: 4 mA to 20 mA DC or 0 mA to 16 mA DC, insulated output
(however, non-insulated among each channel)
Maximum load resistance: 600 Ω
Contact output Point: 6
Type: arbitrary 4 items from POWER OFF, MAINTENANCE (standard, fixed allocation)
BATCH ALARM, COD MAX ALARM, TURB MAX ALARM (standard), LIGHT SOURCE MALFUNCTION, NO SAMPLE, CLEANING MOTOR ERROR,
ANALYZER ERROR (selectable)
Content: POWER OFF: when the power OFF occurred.
BATCH ALARM: CLEANING MOTOR ERROR, LIGHT SOURCE
MALFUNCTION, ANALYZER ERROR
MAINTENANCE: at in-maintenance mode and calibration mode, and when maintenance switch is ON.
Specification: contact output without voltage, a contact
Contact rating: 125 V AC/0.3 A, 30 V DC/1 A
(however, for load resistance) each output COM-independent
Contact input Point: 2
Type: Float switch input, time adjustment input
Specification: contact input without voltage (open collector can be connected), insulated input
ON resistance: Max. 100 Ω, Open voltage: 5.5 V DC, Short circuit current:
Max. 10 mA
Communication Interface: RS-232C compliant
Communication speed: 19200 bps
Data memory Memorize the data of measurement value of the measurement item in the main body.
Memorized data can be transferred to the CF card.
Memory interval: 1 minute or 1 hour
Memory time: on the hour every hour
Data memory time: interval of 1 minute: approximately 10 days
interval of 1 hour: approximately 1 year
* The latest data is memorized.
Light source/detector Light source: low pressure mercury-vapor lamp, detector: silicon photo diode
Piping sockets
  • Sample inlet Rp-1/2 female
  • Bypass outlet Rc-1/2 female
  • Overflow outlet (1) Elbow fitting, 13A (nominal)
  • Overflow outlet (2) Elbow fitting, 20A (nominal)
  • Drain outlet Rc-1/2 female
  • Discharge Tube coupling, 50A (nominal)
Structure Weather-proofed for outdoor installation (equivalent to IP54)
Main material of each unit SUS, PVC, PP, CR, SiO2
Power 100 V to 230 V AC ±10%, 50/60 Hz
Power consumption 100 V to 120 V AC, Max. 45 VA
200 V to 230 V AC, Max. 60 VA
Mass Control unit: approximately 5.0 kg
Analyzer unit: approximately 5.6 kg
Dimension Control unit: 240 (W) × 104 (D) × 320 (H) mm
Analyzer unit: 200 (W) × 180 (D) × 403 (H) mm
(Protruding portion are not included.)
Painting color Control unit: Munsel 5PB 8/1
Conditions for installation
  • Flat and stable places free from strong vibration or shock
  • Places free from dirt or dust, or where no corrosive gases will be generated.
  • At the atmospheric pressure
  • Places not subject to direct sunlight
  • Places well-ventilated
  • Altitude of 2000 m or below
