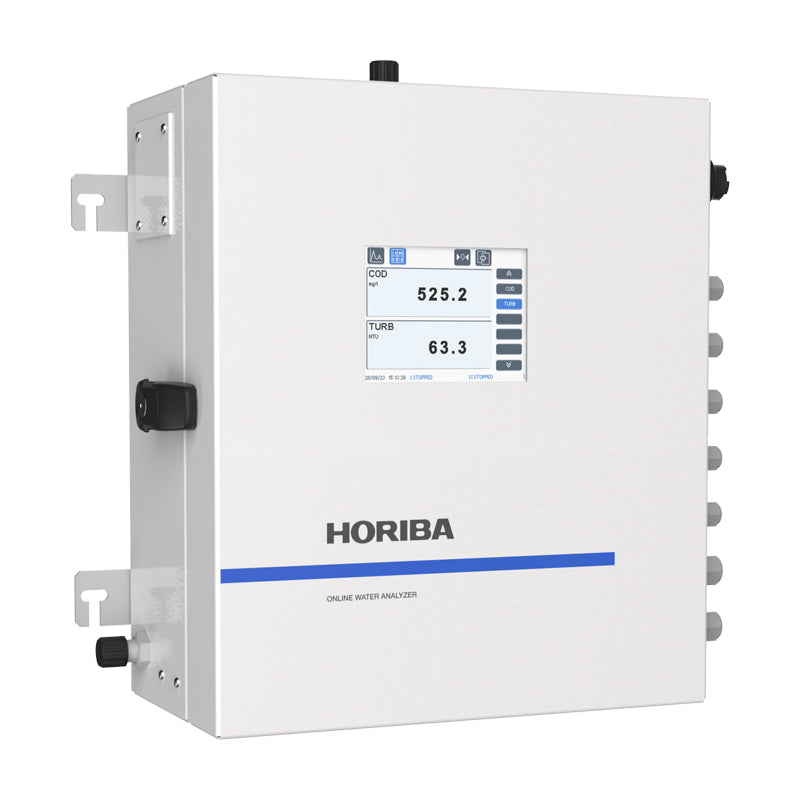

HORIBA Online Water analyzer UV300

HORIBA Online Water analyzer UV300

$10,461.54 USD
$10,461.54 USD
促销 售罄

* Please consult before ordering

Online Water analyzer

UV300

The UV300 is a cost effective water analyser for applications focused on one or two parameters.

Mainly based on UV spectroscopy, well known for its stability and low operating cost, the UV300 can measure parameters like organic matter, nitrate, colour, aromatics hydrocarbons (PAH).A complementary module allows the measurement of PO4, Cl2, NO2, Fe, Al by colorimetric method and turbidity by laser diode. External probes can be added for physicochemical parameters like pH, ORP, dissolved oxygen and conductivity. Thanks to its automatic cleaning system and its extremely long life time lamp, the maintenance is roughly limited to the periodic refill of the inexpensive cleaning solution. A new web-based interface allows the control and the troubleshooting from internet on laptop, tablet or iPhone.

Online water analyzer, UV300 - Parameter specification

Parameter Standard range
Other ranges on request		 Typical Repeatability
For low values (<10% FS)		 Accuracy
On standard solution
UV254 0-200 Abs/m
0-600 Abs/m
0-2000 Abs/m		 +/- 0.05 Abs/m
+/- 0.15 Abs/m
+/- 0.5 Abs/m		 +/- 2%
COD by UV correlation 0-100 mg/l COD
0-2000 mg/l COD
0-20,000 mg/l COD		 +/-0.05 mg/l COD
+/- 1 mg/l COD
+/- 10 mg/l COD		 +/- 2%
BOD by UV correlation 0-100 mg/l BOD
0-1000 mg/l BOD
0-10,000 mg/l BOD		 +/-0.05 mg/l BOD
+/- 0.5 mg/l BOD
+/- 5 mg/l BOD		 +/- 2%
TOC by UV correlation 0-100 mg/l TOC
0-100 mg/l TOC
0-10,000 mg/l TOC		 +/-0.05 mg/l TOC
+/- 0.5 mg/l TOC
+/- 5 mg/l TOC		 +/- 2%
Nitrate 0-100 mg/l NO3 +/- 0.1 mg/l NO3 +/- 2%
Colour 0-100 Pt/Co
0-1000 Pt/Co		 +/- 1 Pt/Co
+/- 2 Pt/Co		 +/- 2%
PAH (aromatics) 0-10 mg/l C6H6 +/- 0.01 mg/l C6H6 +/- 2%
Chlorophyll A 0-100 µg/l ChlA +/- 1 µg/l ChlA +/- 2%
Oil in Water 0-100 ppm OIW
0-1000 ppm OIW		 +/- 0.1 ppm OIW
+/- 1 ppm OIW		 +/- 2%
Phosphate (PO4) 0-2 mg/l P-PO4
0-20 mg/l P-PO4		 +/- 0.01 mg/l P-PO4
+/- 0.1 mg/l P-PO4		 +/- 2%
Chlorine 0-5 mg/l Cl2 +/- 0.05 mg/l Cl2 +/- 2%
Nitrite 0-5 mg/l NO2 +/- 0.1 mg/l NO2 +/- 2%
Nitrite 0-5 mg/l NO2 +/- 0.1 mg/l NO2 +/- 2%
Aluminium 0 - 500 ppb Al +/- 10 ppb Al +/- 2%
Iron 0-2 mg/l Fe +/- 0.02 mg/l Fe +/- 2%
Silica 0-20 mg/l SiO2 +/- 0.1 mg/l SiO2 +/- 2%
Cr VI 0-2 mg/l Cr VI +/- 0.04 mg/l Cr VI +/- 2%
Turbidity
(TSS by correlation)		 0-10 NTU
0-100 NTU
0-1000 NTU		 +/- 0.01 NTU
+/- 0.1 NTU
+/- 1 NTU		 +/- 2%
pH 0-14 pH +/- 0.01 pH +/- 2%
ORP +/- 2000 mV +/- 1 mV +/- 2%
Dissolved Oxygen (DO) 0-25 mg/l O2 +/- 0.1 mg/l O2 +/- 2%
Conductivity 0-2000 µS +/- 1 µS +/- 2%
External turbidity
(TSS by correlation)		 0-4 NTU
0-40 NTU		   +/- 2%
+/- 2%
External TSS 0-1500 mg/l
0-30000 mg/l		 +/- 1% of reading or +/- 2 mg/l TSS
+/- 1% of reading or +/- 2 mg/l TSS		 +/- 2%
+/- 2%
Temperature 0-80 °C +/- 0.1°C +/- 2%
