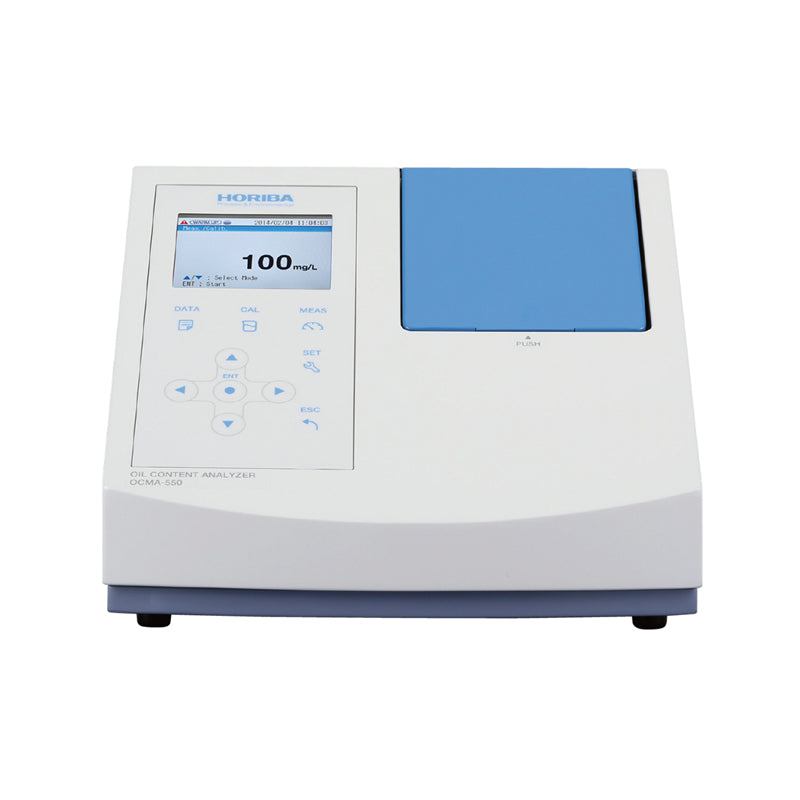

HORIBA Oil content analyzer OCMA-550

HORIBA Oil content analyzer OCMA-550

$15,076.92 USD
$15,076.92 USD
促销 售罄

* Please consult before ordering

Oil content analyzer

OCMA-550

Automatic measurement with a single switch.

One-touch operation with a single button press allows for ease of use by anybody. Can be used for a wide range of applications such as wastewater monitoring and component quality control.

Model OCMA-550
Product name Oil content analyzer
Measurement method Solvent extraction - non-dispersive infrared absorption analysis method
Measured objects Substances extracted from sample water into solvent and having infrared absorption near a wavelength from 3.4 μm to 3.5 μm
Measurement range 0 mg/L to 200 mg/L
Resolution For mg/L 0 to 99.9: 0.1, 100 to 200: 1
For mg/g, mg/kg, mg/PC 0 to 9.99: 0.01, 10.0 to 99.9: 0.1, 100 to 200: 1
Abs.: 0 to 1.000 Abs.: 0.001 Abs.
Repeatability 0 mg/L to 9.9 mg/L: ±0.4 mg/L ±1 dig.
10.0 mg/L to 99.9 mg/L: ±2.0 mg/L ±1 dig.
100 mg/L to 200 mg/L: ±4 mg/L ±1 dig. * For standard liquids
Display method 3.5 inches, 320×240 dots
Backlight Color graphic LCD
Calibration method Select each optionally zero calibration and span calibration
Extraction solvent S-316
Amount of extraction solvent required Approx. 6.5 mL
Extraction method Using the extraction solvent, and extracted manually outside the product
Ambient operating temperature 0°C to 40°C (no condensation)
Power supply 100 V to 240 V AC ±10%, 50/60 Hz
Power consumption 100 V to 240 V AC, Approx. 60 VA
External dimensions 195 (H) × 253 (W) × 293 (D) mm
Mass Approx. 5 kg
External output Output to a USB memory stick
Functions
  • 300-item data memory (measurement history)
  • Stabilized measurement value display
  • Self error determination
  • Clock
  • Conversion of measurement units
  • Compliant with ASTM D7066-4
