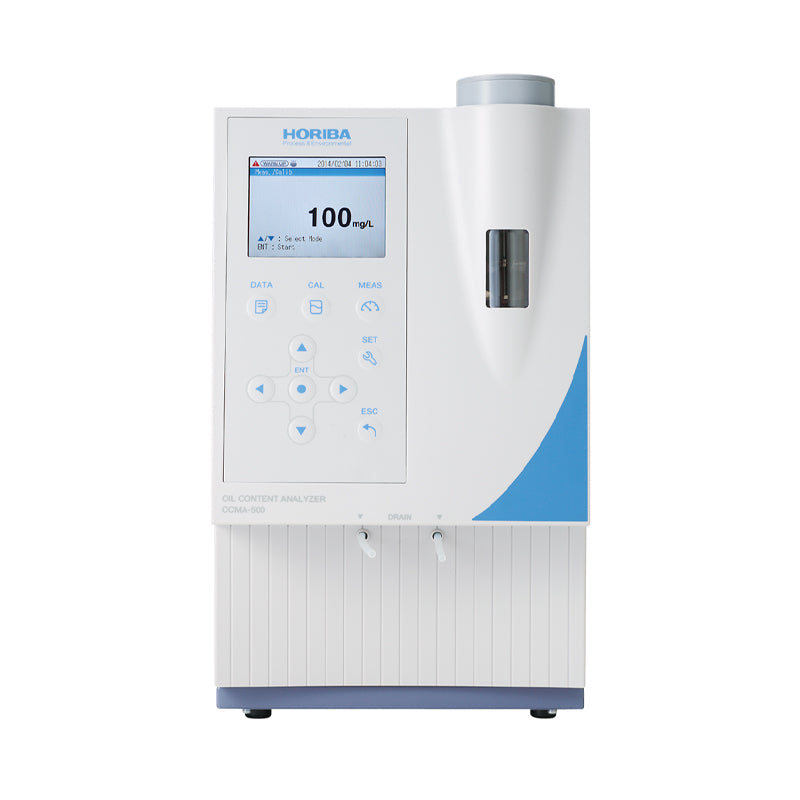

HORIBA Oil content analyzer OCMA-500

HORIBA Oil content analyzer OCMA-500

$17,692.31 USD
$17,692.31 USD
促销 售罄

* Please consult before ordering

Oil content analyzer

OCMA-500

Automatic measurement with a single switch.

One-touch operation with a single button press allows for ease of use by anybody. Can be used for a wide range of applications such as wastewater monitoring and component quality control.

Model OCMA-500
Product name Oil content analyzer
Measurement method Solvent extraction - non-dispersive infrared absorption analysis method
Measured objects Substances extracted from sample water into solvent and having infrared absorption near a wavelength from 3.4 μm to 3.5 μm
Measurement range 0 mg/L to 200 mg/L
Resolution For mg/L 0 to 99.9: 0.1, 100 to 200: 1
For mg/g, mg/kg, mg/PC 0 to 9.99: 0.1, 10.0 to 99.9: 0.1, 100 to 200: 1
Repeatability 0 mg/L to 9.9 mg/L: ±0.3 mg/L.
10.0 mg/L to 99.9 mg/L: ±2.1 mg/L.
100 mg/L to 200 mg/L: ±5 mg/L. * For standard liquids
Display method 3.5 inches, 320×240 dots, Backlight Color graphic LCD
Calibration method Zero, span calibration
Amount of test sample required Sample water : Solvent = 2:1
Extraction solvent S-316
Amount of extraction solvent required 8 mL
Extraction method Built-in extractor
Ambient operating temperature 0°C to 40°C (no condensation)
Power supply AC 100 V to 240 V ±10%, 50/60 Hz
Power consumption AC 100 V: Approx. 60 VA, AC 240 V: Approx. 90 VA
External dimensions 342 (H) × 200 (W) × 313 (D) mm
Mass Approx. 7 kg
External output Output to a USB memory stick
Functions
  • 300-item data memory
  • Self error determination
  • Stabilized measurement value display
  • Clock
  • Compliant with ASTM D7066-4
