HORIBA Modular Water Supply Quality Monitor GX-100*¹

HORIBA Modular Water Supply Quality Monitor GX-100*¹

$10,461.54 USD
$10,461.54 USD
促销 售罄

* Please consult before ordering

Modular Water Supply Quality Monitor

GX-100*¹

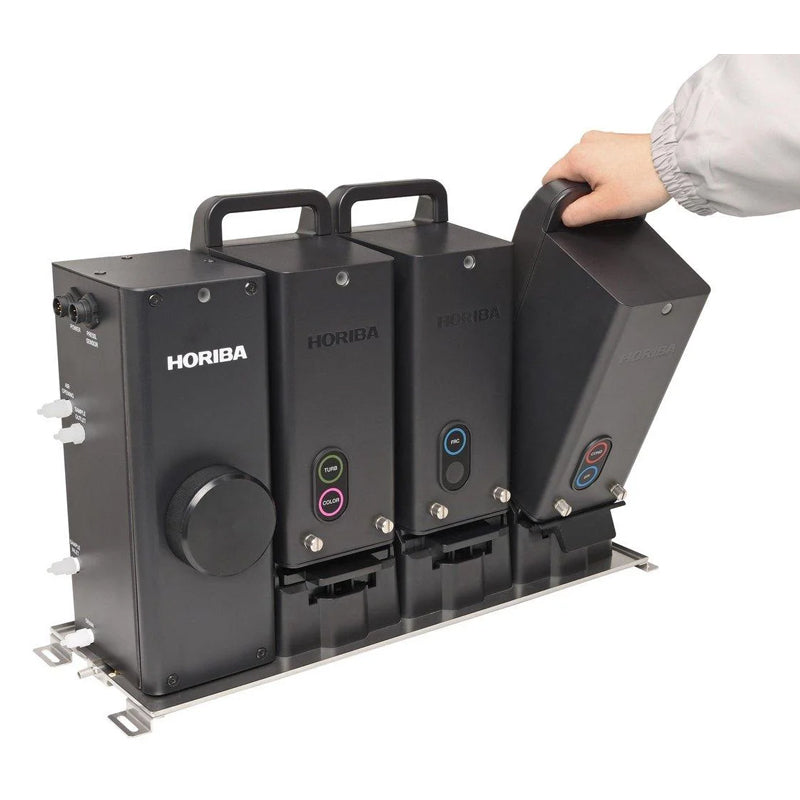

A new water quality monitor that incorporates sensor modules, previously unavailable from HORIBA.

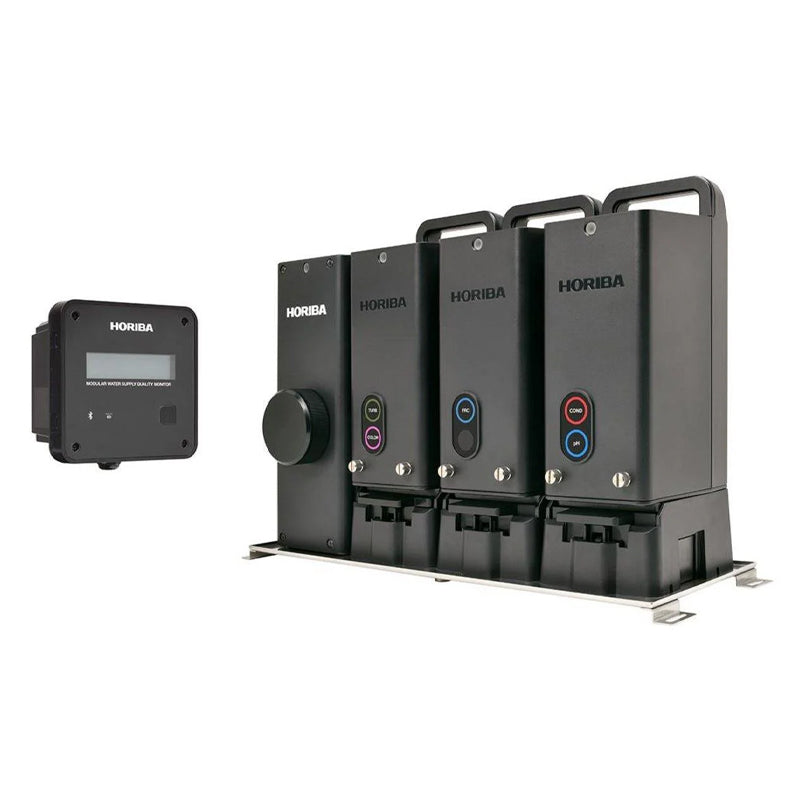

The Modular Water Supply Quality Monitor GX-100 is capable of measuring seven essential parameters that need to be controlled under drinking water regulations: turbidity, color, pH, conductivity, free residual chlorine, water pressure, and water temperature.

*¹GX：Global transformation(X)

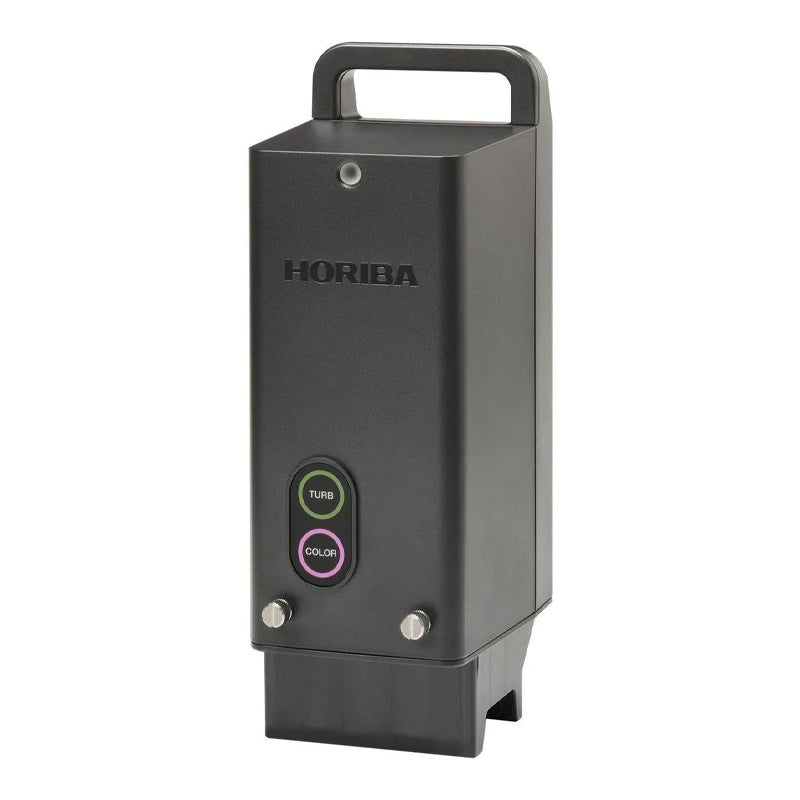

*The sensor modules are the various modular measurement units equipped with sensors.
*Company names, product names, and service names mentioned on this page are trademarks or registered trademarks of their respective companies.

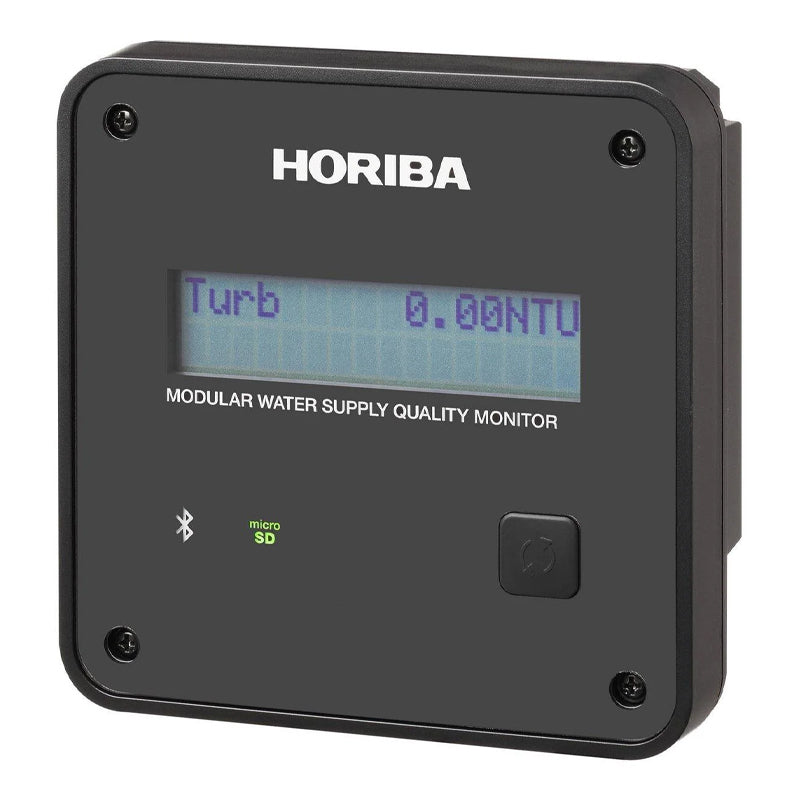

Interface Module: Displays measurement values.  Also possible to communicate with mobile devices and PCs.

Product name Modular Water Supply Quality Monitor
Model GX-100
Measurement items Turbidity, color, free residual chlorine, water pressure, pH, conductivity, water temperature
(Flow rate can also be selected and displayed (reference value))
*The measurement subject is tap water whose measurement item values are within the ranges stipulated in the Japanese drinking water testing method.
Measurement method Refer to Table 1
Measurement range Refer to Table 1
Repeatability Refer to Table 1
Display method i)Display of each component by LCD on the interface module
ii)PC display and operation is also possible via USB connection (*)
iii)Display and operation on mobile devices is also possible via Bluetooth® connection (*)
*A dedicated app is required. Up to eight items (including flow rate) can be displayed simultaneously.
Calibration method Refer to Table 1
Automatic zero calibration (Turbidity, color, free residual chlorine)
Calibration method: Filtered water sample
Calibration Start method: Calibration starts with an internal timer and Modbus® communication
Calibration period: 1 to 9999 hours (arbitrary setting)
Calibration time: 20 minutes
Automatic drainage Start method: Drainage starts with an internal timer and Modbus® communication
Drainage period: 1 to 9999 hours (arbitrary setting)
Drain count: 1 to 9 times (arbitrary setting)
Drain time: 9 to 45 minutes
Cleaning method Turbidity, color: Continuous cleaning of cell window with wiper
Free residual chlorine: Continuous cleaning with beads
Sample water conditions Temperature: 0 to 40℃ (should not be frozen)
Pressure: 0.1 to 0.75 MPa
Conductivity: 100 μS/cm or more
Amount introduced into the analysis section (flow rate): 80 to 100 mL/min
・When test-running, be sure to flush the instruments thoroughly before passing water through them.
・Be sure to provide a bypass for the piping leading to the instrument.
・If there is a risk of the sample water freezing, take measures by using insulation and heat retention device.
・Water samples measured with this device cannot be used for distribution.
・To keep the flow rate stable, avoid sudden fluctuations in water pressure.
Communication Interface: RS-485 communication (Modbus® protocol)
                Communication speed: 19200 bps
                *Can be changed (2400 bps to 230400 bps)
Function Liquid leak detection function
Data memory
(When SD card is inserted)		 The measured values of the measurement items are stored in the SD card in the interface module.

Memory interval: 1 second, 1 minute, 1 hour (every hour on the hour)
Data memory time: 1 second intervals - approx. 99 days
                              1 minute intervals - approx. 99 days
                              1 hour interval - approx. 1 year
                              * The latest data will be stored in memory.
Wiring connection port Wiring inlet (suitable cable: φ7.0 to 11.0 mm)
Pipe connection port Sample water inlet: φ6/4 pipe
Drain: φ6/4 pipe
Air outlet: φ6/4 pipe
Sample water outlet: φ6/4 pipe
Structure Measurement unit: Indoor installation type
Exterior case material: ABS, SUS304
Interface module: Indoor/outdoor installation type (IP65 equivalent)
Exterior case material: AES
Main material of liquid contact parts PMMA, PEEK, PPS, ABS, PVC, PVDF, FKM, EPDM, glass, ceramic, SUS304, C3604, PET, FEP
Power supply DC 24 V ±10％
Power consumption 75 W
Mass Measurement unit: Approx. 10 kg
Interface module: Approx. 1kg
External dimensions Measurement section: 480(W) x 166(D) x 323(H)
Interface module: 155(W) x 119(D) x 155(H) (unit: mm)
Installation temperature conditions Ambient temperature: 0 to 40°C
Installation humidity conditions Ambient humidity: 85% or less (no condensation)
Color Black
Installation environment conditions ・A flat, stable location with little vibration or shock
・The atmosphere must not contain dust, mist, corrosive gases, etc.
・Atmospheric pressure
・A place not exposed to direct sunlight (measurement unit)
・A well-ventilated area
・Altitude below 2000m
