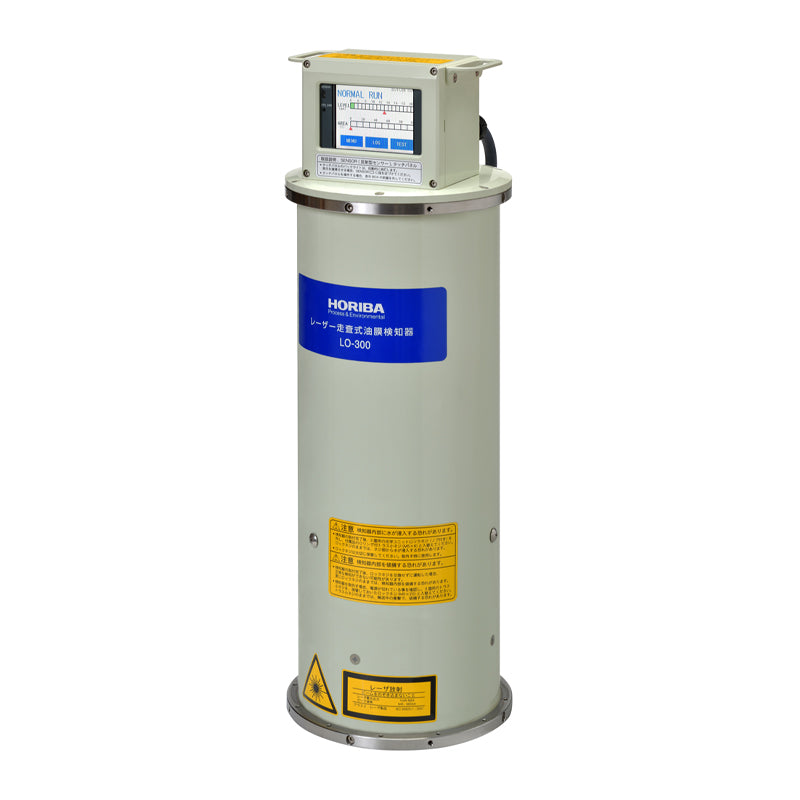

HORIBA Laser scanning oil film detector LO-300

HORIBA Laser scanning oil film detector LO-300

$13,538.46 USD
$13,538.46 USD
促销 售罄

* Please consult before ordering

Laser scanning oil film detector

LO-300

In the event of an oil spill, laser and video monitoring will be employed.

The LO-300 is a laser scanning oil film detector that accurately detects floating oil films by scanning the water surface with a semiconductor laser beam. Highly effective in detecting floating oil films on water surfaces or floor surfaces. Additionally, the surveillance camera unit (optional) allows the recording of video footage immediately before and after the occurrence of an alarm.

Product name Laser scanning type surface oil detector
Model number LO-300
Subject of detection Oil on water surface or liquid on floor
Detection method Surface scanning laser/reflected light sensor
Detection distance 0.3 m to 4 m (Piezometric surface Max.6 m)
Laser emitter Semiconductor laser, wavelength (λ) 650 nm, within 1 mW output (Class 2)
Modulation laser freq About 50 kHz
Scanning Mechanical Oscillation mirror
Leak detection Leak detection alert When the state to exceed a set level of “Oil WARNING” or “OIL
ALARM” passes longer than “CONT.TIME SET.”, it judges alert.
System Error Malfunction Engages when Temp., laser emission, laser scanning, motor rotation or power fails.
Abnormal light sensing Engages when Upper light reception level, Lower light reception level, floating debris produces no reflection or abnormally strong reflection.
Contact output Number of outputs 2
Output type No-voltage contact output
Contact type Relay contact; SPDT(1c)
Output capacity 250 V AC 4 A,30 V DC 4 A
Output 1 AL (Oil Alarm) When “OIL ALARM” is detected, it operates.
Output 2 ER (System Error) When “System Error” is detected, it operates.
Transmission output Number of outputs 1
Output type 4 mA to 20 mA DC (Isolator)
Load resistance Max. 550 Ω
Setting and Indication (Indication) Status of water surface NORMAL RUN
OIL WARNING
OIL ALARM
HIGH LEVEL
LOW LEVEL
SYSTEM ERROR
Light reception level 4 mA to 20 mA is transformed converted into Level bar of 17 Step.
Surface Oil area 0% to 100% is transformed converted into Level bar of 10 Step.
LOG Max. 100 points Alarm history
(Setting) OIL LEVEL Adjustment: 4 mA to 20 mA (1 mA carving)
Indication: red △ marker under LEVEL bar
AREA LEVEL Adjustment: 0% to 90% (10% carving)
Indication: △ marker under AREA bar
Oil warning: Yellow △
Oil alarm: Red △
CONT.TIME Adjustment: 0 seconds to 999 seconds (1 second carving)
RELAY OUT (AL) Adjustment:
MODE: Select of Oil warning or Oil Alarm
TIME : 0 seconds to 99 seconds, ∞(infinity)
LEVEL ERR. Adjustment: “ON” or “OFF”
MULTI-TRANS Adjustment: “ON” or “OFF”
OVER LEVEL Adjustment: 4 mA to 24 mA
DATE Adjustment: Year/Month/Day/Hour/Minute
CONTRAST Adjustment: CONTRAST LEVEL of LCD
COLOR Adjustment: COLOR of LCD
FACTORY Adjustment: at the time of shipment from the factory
Laser replacement
Contact output time setting		 Adjustment: 0:00 to 23:59 (unit 1 minute)
Power supply Power range 100 V AC ±10% 50/60 Hz
Power consumption 100 W less than
Other With time-lag fuse (125 V 2 A)
Operating temperature range −10℃ to +50℃ (without freeze)
Operating humidity range Relative humidity: 5% to 95% (without condensation)
Compatible standards CE marking EMC Directive: EN61326-1
Low-voltage Directive: EN61010-1, EN60825-1
Structure Installation Outdoor installation type
Protection code IP66 corresponding
Material Detection part AL (Chromate processing after urethane painting)
Setting and
Indication part		 AL (Alumite processing after urethane painting)
Paint color U35-85B (Edition U of JPMA)
External dimensions φ185 mm × H547 mm
Mass Main body: Approx. 11 kg; Cables: Approx. 1.4 kg
Installation condition Installation inclination: less ±3°
It avoids direct sunlight and it sets it up.
Frozen provisions of the surface of the water of detection are necessary.
The rain avoiding provisions are necessary.
Attached cable Power cable 1 cable (Length:5 m NA6UCL AWG16 × 3 cores (outer diameter φ10.4))
Signal cable 1 cable (Length:5 m NA3VCSB AWG21 (0.5 sq) × 8 cores with shield (outer diameter φ8.5))
