HORIBA HF (Hydrofluoric Acid) DO (Dissolved Oxygen) Monitor / Pure Water DO (Dissolved Oxygen) Monitor HD-960L

HORIBA HF (Hydrofluoric Acid) DO (Dissolved Oxygen) Monitor / Pure Water DO (Dissolved Oxygen) Monitor HD-960L

$2,461.54 USD
$2,461.54 USD
促销 售罄

* Please consult before ordering

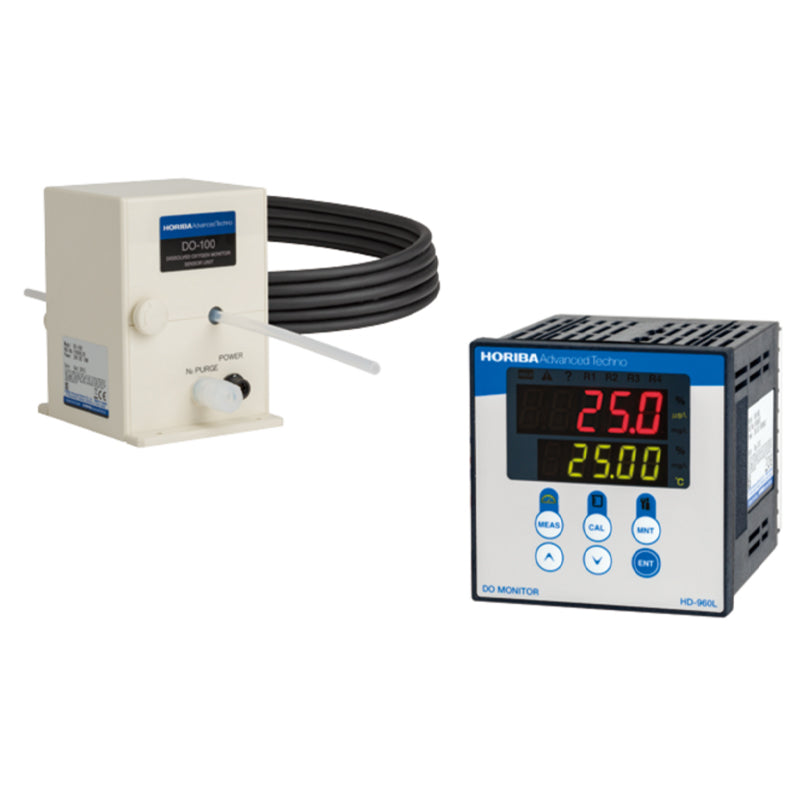

HF (Hydrofluoric Acid)  DO (Dissolved Oxygen) Monitor / Pure Water DO (Dissolved Oxygen) Monitor

HD-960L

This is a dissolved oxygen monitor designed for low-flow applications, ideal for monitoring the concentration of dissolved oxygen in HF solutions during wet processes.

Equipped with a range switching function that always measures in the optimal range/resolution for dissolved oxygen concentrations ranging from low to high, allowing it to adapt to the specific measurement requirements of each process.

Model Name HD-960L
Measurement range Repeatability Measurement range Repeatability
0.0 to 200.0 μg/L +/-1% FS
200 to 2000μg/L +/-1% FS
2.00 to 20.00mg/L +/-1% FS
Conditions measurement sample Sample Pressure 0 to 0.1MPa
Sample flow rate 15 to 200ml /min.
Sample temperature 10 to 45 °C
Sample HF concentration 0 to 5000ppm
Transmission output 4-20mA, 4points
Contact output 4 points
Power supply DC24V +/- 10% 15W
Combined Sensor unit DO-100
Combined Sensor #5600
Sample inlet/outlet 1/4 inch tube
