HORIBA Gel-filled Self-cleaning pH Electrode 6122 series

HORIBA Gel-filled Self-cleaning pH Electrode 6122 series

$1,230.77 USD
$1,230.77 USD
促销 售罄

* Please consult before ordering

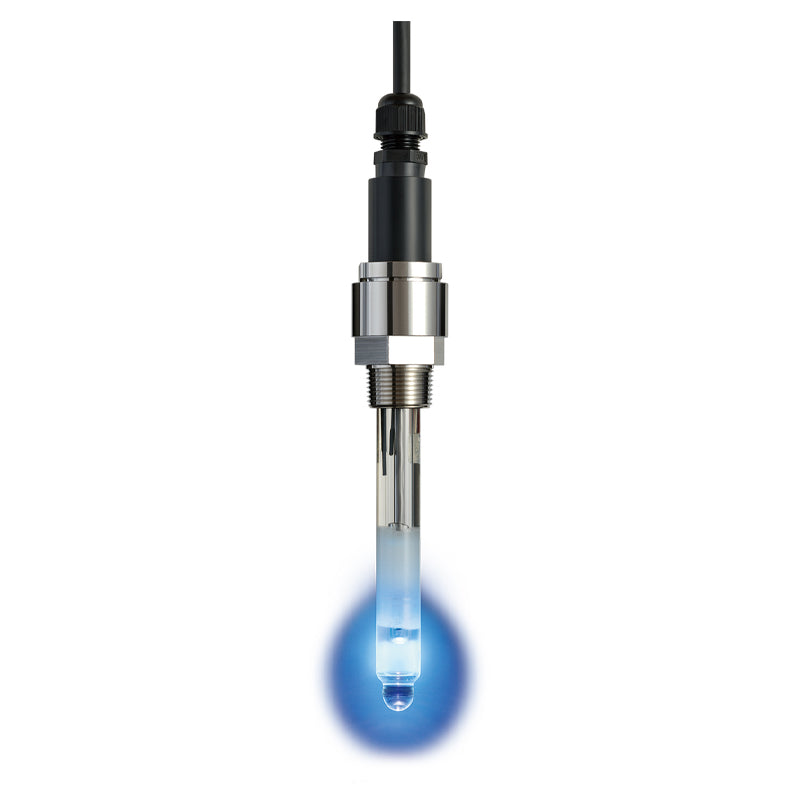

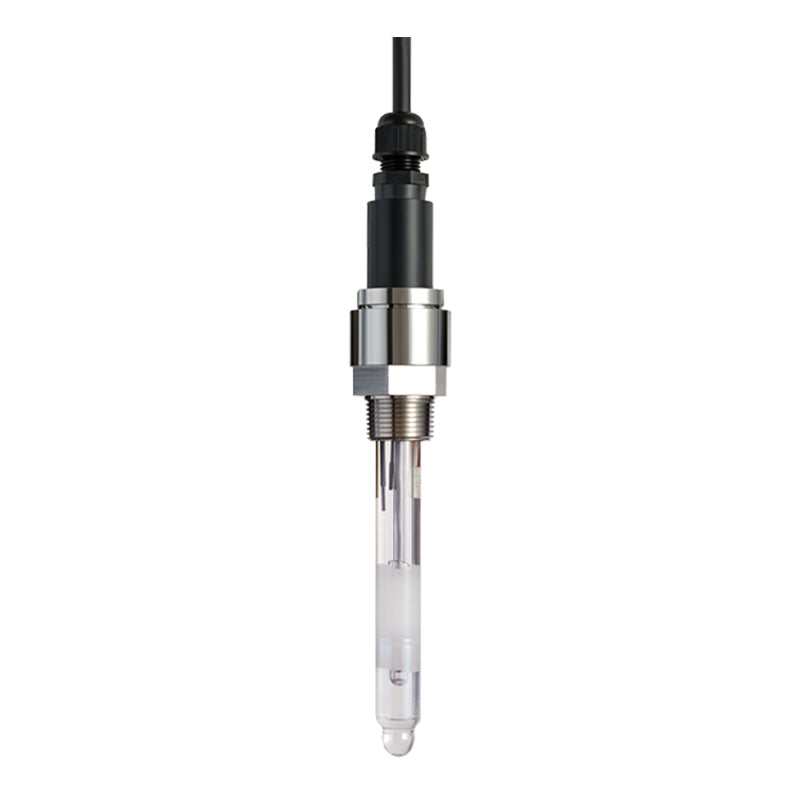

Gel-filled Self-cleaning pH Electrode

6122 series

Wastewater treatment and control requires adequate continuous pH analysis to meet with individual local regulations.  This gel-filled self-cleaning pH electrode enables reducing user’s maintenance frequencies and cost of time.  This electrode incorporates photocatalysis effect in order to prevent the organic contaminates on the surface of the glass responsive membrane.  Our patented unique technical details follows later.  The effect varies depending on the water sample quality and analysis environment.

Product name Gel-filled Self-cleaning pH Electrode
Model 6122S (Immersion holder type/ Flow through type/ Drop-in holder type) 6122SA (Direct screw-in thread)
Measurement range 0 pH to 14 pH ※1 ※2
Measuring solution condition Temperature range 0 ℃ to 40 ℃ ※3
Pressure range 0 MPa to 0.1 MPa
Electric conductivity range 500 μS/cm or higher
Electrode structure GRT composite electrode
Liquid junction Open pore
Internal solution for reference electrode Water-insoluble polymer gel Potassium chloride supersaturated
Wetted material Glass, TiO2
Cable length 5 m / 10 m
Please contact us for other cable length.
Terminal connection Square destination opening crimp terminals (4 mm) G, S, R, T, T, E, LED+, LED₋
Temperature compensation element 1000 Ω (at 0 ℃)
Standard accessories ・Instruction manual
・Electrode packing
・Spacer
・Holder cap		 ・Instruction manual
・O-ring
Compatible transmitter HP-200/ HP-300/ HP-480 series / HP-960FTP
Relay box CT-302
Compatible holder/adapter ・CH-101 series (Immersion type) ※4
・CF-251 series (Flow through type) ※4
・NH-10 series (Drop-in) ※5 		・Direct screw-in thread (S-R3/4-SUS-6122SA, S-NPT3/4-SUS-6122SA) ※6
