HORIBA
HORIBA Carbon Sensor Conductivity Meter (High concentration type) HE-960HC
HORIBA Carbon Sensor Conductivity Meter (High concentration type) HE-960HC
常规价格
$2,461.54 USD
常规价格
促销价
$2,461.54 USD
单价
/
单价
无法加载取货服务可用情况
* Please consult before ordering

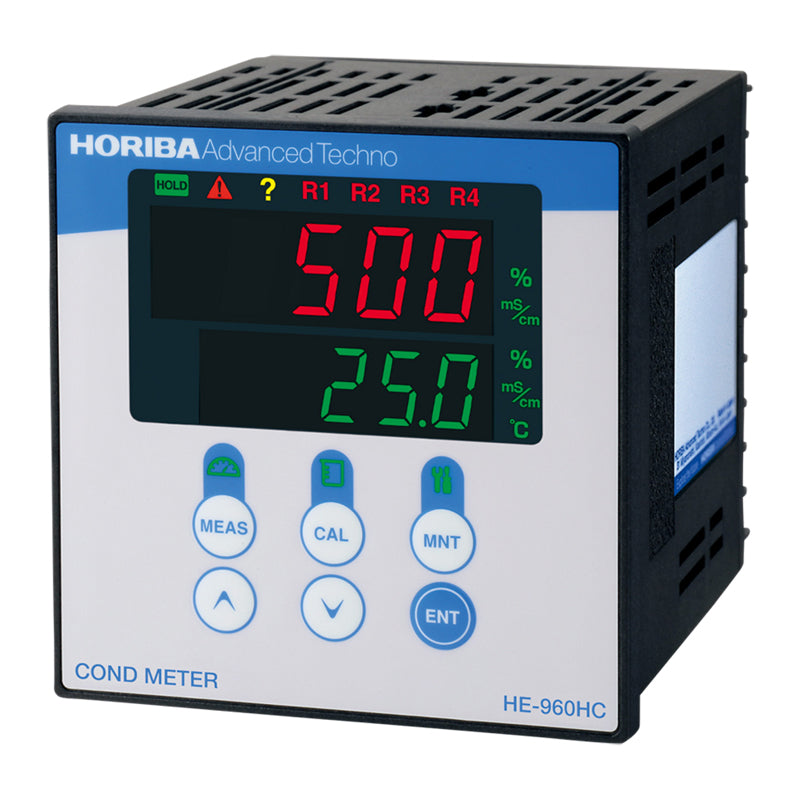

Carbon Sensor Conductivity Meter (High concentration type)
HE-960HC
A high-concentration conductivity meter ideal for chemical solutions and wastewater management in semiconductor manufacturing and FPD (Flat Panel Display) manufacturing processes.
This unit employs a chemical-resistant 4-pole carbon sensor. It can measure across a wide-range without actually switching, and is equipped with a concentration conversion function, making it suitable for measuring the conductivity of a wide range of chemicals used in processes such as semiconductor cleaning.
| Model | HE-960HC | ||
|---|---|---|---|
| Measurement range | 0 - 1000mS/cm | ||
| Wetted materials | GC, Karletz, PFA | ||
| Sensor input | 1 ch | ||
| Repeatability | +/- 0.5% of the full scale (in equivalent input) | ||
| Linearity | +/- 0.5% of the full scale (in equivalent input) | ||
| Transmission output | Number of output: 4 | ||
| Contact output | Outputs: 5 points | ||
| Communication output | RS-485 | ||
| Ambient environment | Temperature: -5 to 45°C, Relative humidity: 20 to 85% (without condensation) | ||
| Power supply | 100 to 240 V AC ±10%, 50/60 Hz, 20 VA (max) | ||
| Protective structure | Panel: IP65, Rear case: IP20, Terminal: IP00 (indoor-use panel installation type) | ||
| Mass | Approx. 550 g | ||
| Conforming standards | CE marking, FCC Part 15 | ||
| Compatible sensors | FES-510 series | ||
