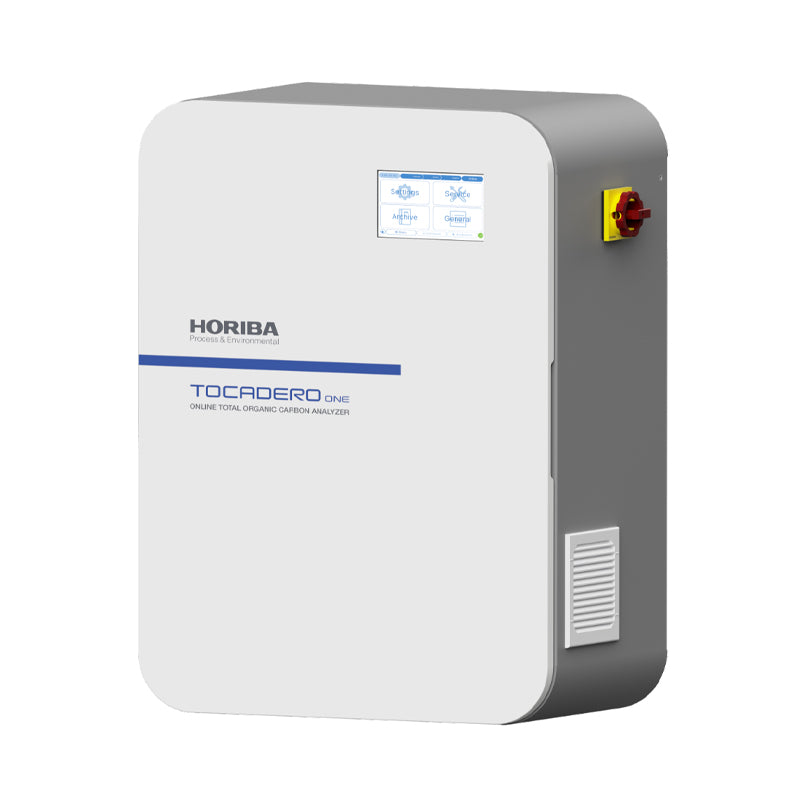

HORIBA Automatic Total Organic Carbon Analyzer (On-line TOC analyzer) TOCADERO ONE

HORIBA Automatic Total Organic Carbon Analyzer (On-line TOC analyzer) TOCADERO ONE

$10,461.54 USD
$10,461.54 USD
促销 售罄

* Please consult before ordering

Automatic Total Organic Carbon Analyzer (On-line TOC analyzer)

TOCADERO ONE

HORIBA's on-line water quality monitor

As part of HORIBA's on-line water quality analyzer lineup dedicated to safeguarding global water quality through analytical technology, a precise and reliable total organic carbon analyzer has been developed.
On-line water quality monitoring contributes to the efficiency improvement of wastewater management.
To meet a wide range of measurement needs and the demands of challenging environments, our system is equipped with highly scalable hardware and user-friendly software.

ANALYTICAL PERFORMANCE

Measurement ranges 0-1 ppm, 0–1 00 ppm, 0–1 .000 ppm, 0–1 0.000 ppm (optional: 0–1 00.000 ppm)
Limit of detection 0,1 ppm
Cycle time TOC(NPOC)  < 3 min.
Cycle time TC/TOC  1 min.
Repeatability ± 2 % end-of-range
TDS up to 200 g/l (20% NaCl)
Particles < 2.000 microns (optional: homogenizer and sample preparation)
scrollable



PHYSICAL PROPERTIES

Weight < 55 kg
Dimensions 800 H × 600 W × 320 D mm
Power AC 110 – 230V ±10V, 50/60 Hz, Approx. 600 VA
Carrier gas CO2 free instrument air
scrollable



ENVIRONMENTAL CONDITIONS

Indoors 2 – 45 °C
Relative humidity < 85 % (no condensation)
Housing IP 54, IP 65 (optional: NEMA4X)
Ex p-Enclosure Zone 1/2, T3 and T4, ATEX & IECEx
scrollable



COMMUNICATION

Display 7“ Touch Panel
Supported protocols OPC UA, Ethernet, Profinet,Modbus
Communication Bluetooth, WLAN, GSM, 5G
Relays 4 programmable - NAMUR standard
Languages German, English, Japanese, Chinese, Korean
