Honeywell RAE Systems ToxiRAE LEL Personal Combustible Gas Detector RAE Systems PGM-1880

*Please consult before ordering (price determined by configuration)

ToxiRAE LEL [PGM-1880]
Chinese menu display
Simple Chinese operation, more in line with user experience
Rechargeable lithium battery for long-term continuous use
Lithium battery life up to 16 hours

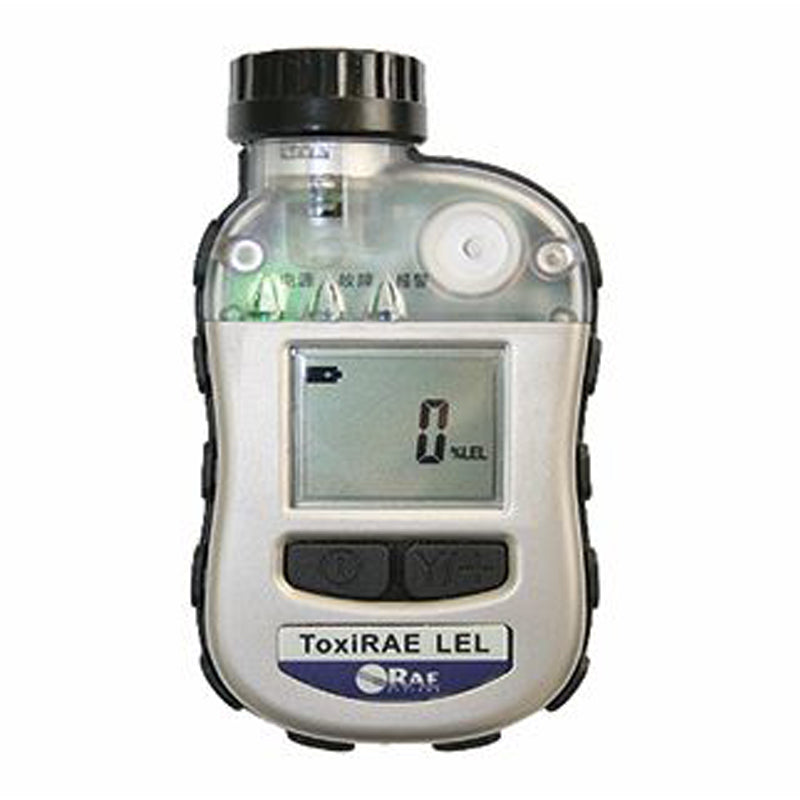

The ToxiRAE LEL is a pocket-sized, personal combustible gas detector (portable combustible gas detector) that provides a high level of safety for workers in hazardous environments. The ToxiRAE LEL provides high-precision, real-time detection of combustible gases within the 0-100% LEL range.

Key Features:

Chinese menu display
Simple Chinese operation, more user-friendly
Rechargeable lithium battery for long continuous use
Lithium battery life up to 16 hours
Built-in data storage
Stores 25 alarm records
Easy sensor and battery replacement and maintenance
Modular design simplifies maintenance
Rugged waterproof and dustproof housing with high protection rating
IP-65 protection rating ensures excellent performance in harsh environments
China explosion-proof, fire protection, and CMC certifications obtained

Applications:

• Petroleum and petrochemical
• Gas

• Chemical
• Coking

• Firefighting
• Emergency rescue

• Pharmaceutical
• Paper

• Aviation
• Chemical

Technical Parameters:

Product Type

Diffusion-type LEL detector with data storage

Dimensions

120mm × 65mm × 33mm

Weight

210g

Detection Range

0 to 100% LEL

Resolution

1% LEL

Response Time T90

<20 seconds

Battery

Built-in rechargeable lithium battery

Operating Time

Over 12 hours on a full charge

Charging Time

<4 hours

Charger

Single charger with USB port

Alarm Mode

Audible alarm 75 dB@1m, LED alarm light, vibration alarm

Keypad

2 keys

Sampling Mode

Diffusion

Data Logging

25 records

Calibration

Two-point calibration, programmable calibration value

Protection Rating

IP65

Protection

Password protection for calibration, alarm, and other limit settings

Certification

Ex ia IIC T4 Ga

CCCF

Operating Temperature

-40°C to +70°C

Temperature

0 to 90% RH (non-condensing)

Warranty

One-year warranty

Standard Contents:

• ToxiRAE LEL main unit • Warranty card

• Data cable • Charger

• Charging cradle/PC communication adapter • Verification certificate and calibration card

• Chinese instruction manual • Calibration cap

• Packing list • ProRAE Studio II software

Optional accessories:

• 50% LEL methane standard gas + flow meter
