Honeywell RAE Systems Toxic Gas Detector RAE Systems FGM-3300

*Please consult before ordering (price determined by configuration)

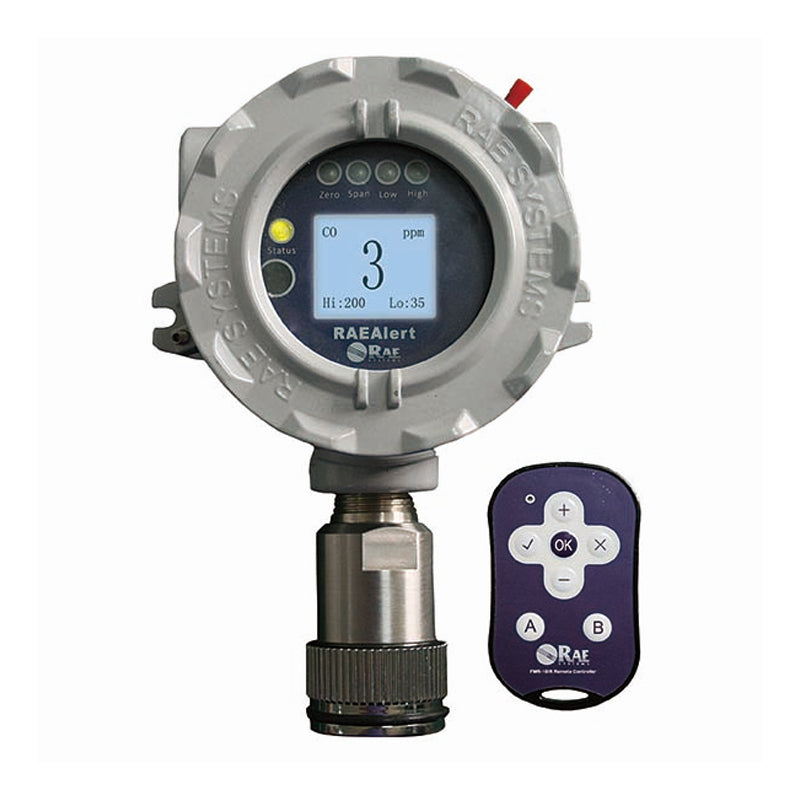

The RAEAlert EC is a toxic gas detector featuring a modular design, intelligent sensor detection technology, integral flameproof (D) construction, and fixed installation. Standard features include a dot-matrix LCD display, three-wire 4-20mA analog output, and RS485 digital signal output. Optional configurations include programmable switching outputs, allowing for customized product designs based on user needs. Output signal fine-tuning is also supported, facilitating system networking and maintenance. It can detect a variety of toxic and hazardous gases, including CO, H2S, O2, SO2, Cl2, NH3, SO2, HCN, NO, NO2, PH3, ClO2, and ETO.

The RAEAlert EC is a toxic gas detector featuring a modular design, intelligent sensor detection technology, integral flameproof (D) construction, and fixed installation. It comes standard with a dot-matrix LCD display, three-wire 4-20mA analog output, and RS485 digital signal output. Optional configurations include programmable switching outputs, allowing for customized product designs based on user needs. It also supports output signal fine-tuning, facilitating system networking and maintenance. It can detect a variety of toxic and hazardous gases, including CO, H2S, O2, SO2, Cl2, NH3, SO2, HCN, NO, NO2, PH3, ClO2, and ETO.

Key Features

• Intelligent EC sensor, utilizing intrinsically safe technology, supports multi-gas and multi-range detection. Customizable products are available based on user needs. Tool-free sensor interchange, offline calibration, and zero-point self-calibration are all possible.

• Intelligent temperature and zero-point compensation algorithms enhance instrument performance.

• Excellent selectivity prevents interference from other gases on the gas being detected.

• Multiple signal outputs facilitate integration with industrial control systems such as PLCs/DCSs, or standalone control.

• Large dot-matrix LCD display with Chinese and English support.

• No-cover operation, infrared remote control, single-person maintenance.

• Local alarm indication and integrated audible and visual alarm (optional).

• Overrange and reverse polarity protection prevent hazards caused by improper operation.

• A wide range of electrical interfaces are available.

Applications

• Petroleum, petrochemical
• Metallurgy, chemical
• Environmental protection
• Papermaking, printing and dyeing
• Municipal administration
• Scientific research, Education
• National Defense

Standard Configuration
• Detector
• Operating Instructions
• Calibration Gas Cover
• Installation Accessories

Optional Accessories
• Relay Module
• Audible and Visual Alarm
• Remote Control
• Calibration Gas
• Pressure Reducing Valve

Installation Accessories
• Wire Connector
• Compression Nut
• U-Shaped Mounting Clamp
• Mounting Backplate
• Calibration Gas Cover
• Rain Cover
• Plug
