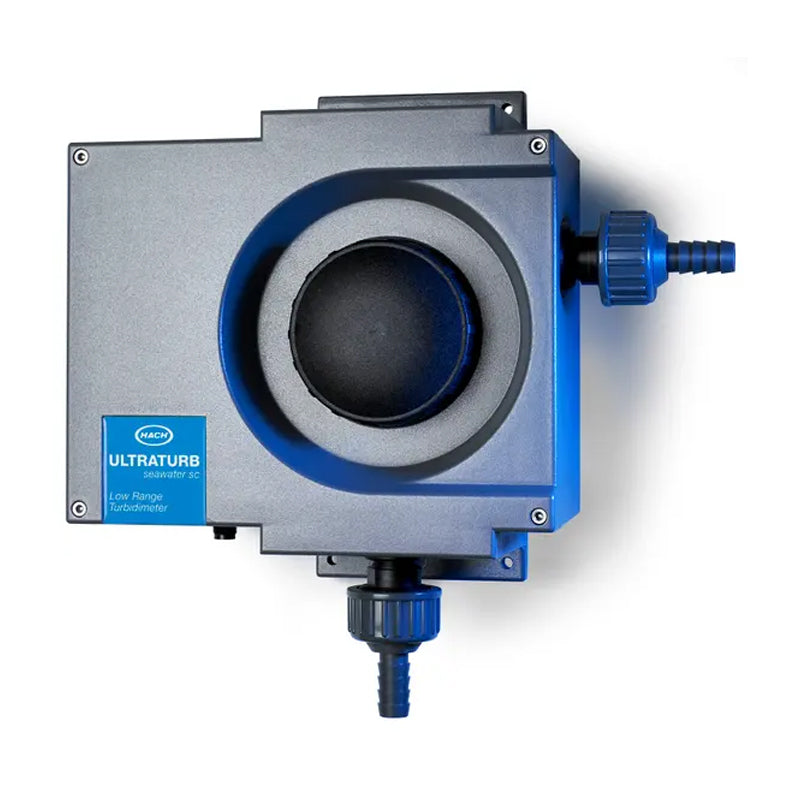

HACH Ultraturb Seawater turbidity sc with cable
HACH Ultraturb Seawater turbidity sc with cable
无法加载取货服务可用情况
* Please consult before ordering
The turbidity bypass sensor that brings clarity
Turbidities in the range of FNU (NTU) 0.0001-1,000 are measured and displayed alphanumerically using a controller. This high resolution facilitates precision differentiation, even for ultra clear liquids. A pulsed, long-life IR radiation source (LED) ensures that costs are minimized. Designed in accordance with DIN EN ISO 7027 and permanently calibrated before leaving the factory. All key data is set to practical standard values. The instruments are immediately ready for use after connection to the power supply and the supply of sample water. The measuring range and all data outputs are modified to suit requirements using menus on the controller. All optical and electronic assemblies are installed in housings that are physically very strong and proof against water jets.
Benefits
Wide measuring range-0 to 1,000 NTU
The Hach Ultraturb plus sc Sensor measures turbidity from 0 to 1000 FNU (NTU) for a wide variety of low to medium range turbidity applications. Use it to effectively monitor conventional filtered water processes, effluent water, distribution systems, and elevated tanks where small-sized particulates or air entrapment may be an issue.
Self-cleaning Sample Chamber Option
The Ultraturb sensor is available with an automatically self-cleaning sample chamber that guarantees stable measured values. The silicon wiper blades inside the sample chamber are held in place with a magnetic coupling wheel to further keep the sample chamber intact.
Suitable for seawater, brackish water, raw water and other applications
The new Ultraturb seawater sc is resistant to salt concentrations up to 65 g/L.
Ratio Methodology Detects Sample Chamber Fouling
The Ultraturb sensor uses ratio methodology with detection at 90° and 180° to minimize reflections in the measuring cell and on the windows. In this way, fouling of the sample chamber is detected earlier than with a single detection system.
Specifications
Technical Attributes
| Accuracy | ± 0.008 FNU ±1% of reading whichever is greater (0 - 10 FNU) |
| Automatic Wiper | Yes |
| Cable Length | 0.35 m |
| Calibration Method | Stablcal |
| Controller Compatibility | SC4500, SC1000, SC200 |
| Dimensions (H x W x D) | 240 mm x 250 mm x 110 mm |
| Display | Display provided through connection with Hach sc Controller |
| Enclosure Rating | IP55 |
| Inlet | 13 mm ID Tubing or fixed connection (PVC system component pipework) |
| Material | Housing: ASA; Window: Quartz; Wiper Blade: Silicon; Wiper Shaft: stainless steel 1.4571 |
| Measurement Method | 90° infrared pulse scattered light technique in accordance with DIN EN ISO 7027 |
| Model | Ultraturb seawater sc |
| Operating Temperature Range | 2 - 40 °C (36 - 104 °F) |
| Outlet | 13 mm ID Tubing or fixed connection (PVC system component pipework) |
| Pressure Range | 6 bar at 20 °C (87 psi at 68 °F) |
| Range | 0.0001 - 1000 FNU (TE/F, NTU, FNU) can be programmed as required (0.001-250 EBC = 2500 ppm SiO2) (Note: 1 FNU is equivalent to 1 NTU) |
| Repeatability | ± 0.003 FNU or ± 0.5% of reading (whichever is greater) from 0 - 2 FNU |
| Response Time | 1 - 60 s (programmable) |
| Sample Flow Rate | 0.2 to 1 L/min |
| Sample Temperature | Max. 50°C (122°F) |
| Sensor cleaning | Wiper, automatic |
| Verification | Stablcal or dry standard CVM module |
| Warranty | 12 months |
| Weight | Approx. 1.5 kg |
| What's included? | Hach Ultraturb sc, Factory Test Certificate, 4 wipers, Accessory set LZP816, User Manual. |
