HACH TSS HT sc Sonatax sc Sludge Level Probe with Pivot Mount PN.5773000
HACH TSS HT sc Sonatax sc Sludge Level Probe with Pivot Mount PN.5773000
无法加载取货服务可用情况
* Please consult before ordering
Low-maintenance sludge level monitor delivers superior accuracy.
Optimize sludge extraction, manage recirculation, and be warned of potential solids washouts or process upset by continuously measuring the sludge blanket level with the Sonatax sc probe. The digitized probe eliminates interferences and demonstrates superior accuracy and reliability with automatic frequency adjustment. Probe maintenance has been reduced with an innovative wiper design and quick LED system check. The probe comes with automatic temperature compensation and position sensor, and must be connected to an SC200 or SC1000 Controller to form a complete system. Note: For graphical display of sludge profile, the Sonatax sc probe must be connected to an SC1000 controller.
Benefits
Reduced Maintenance with Innovative Wiper Design

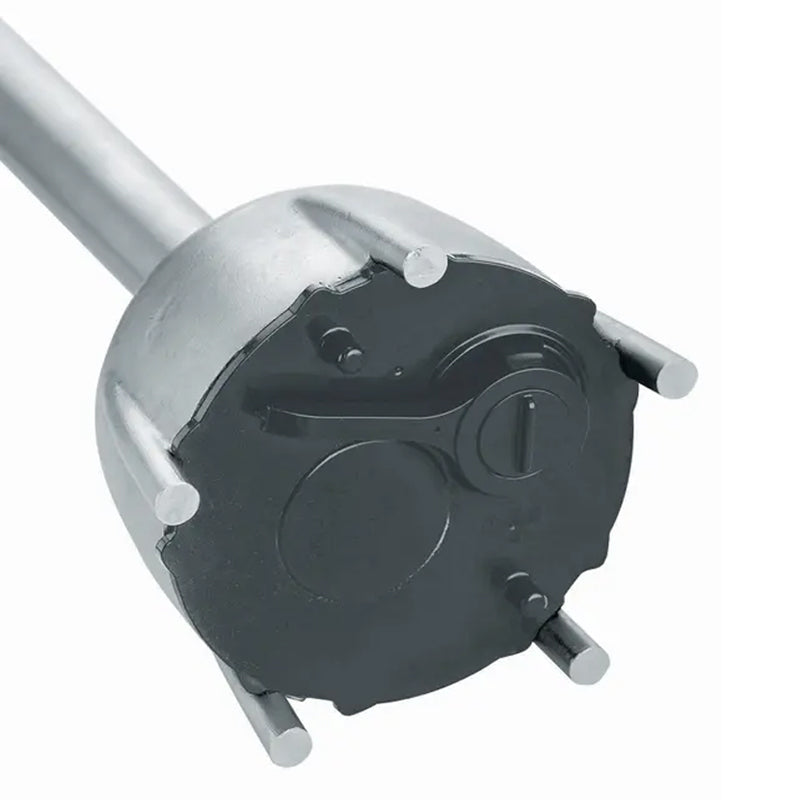

The wiper functions with a magnetic connection and without a shaft so there are no o-rings to replace and no need to open the probe housing. Tools are not needed to replace the wiper blades.
Superior Accuracy with Automatic Frequency Adjustment
The Sonatax sc probe automatically scans a range of frequencies to find the ideal settings for the solids concentration for the application. Built-in software disregards signals reflected from tank structures such as pipes, rods, etc.
Unique Features
The fully digitized Sonatax sc probe means there are no electromagnetic interferences. Instantly resume measurements after skimmer passes with the built-in position sensor that also compensates for angle when the probe is not mounted exactly vertically.
Temperature Compensation for Seasonal Changes
Automatic temperature compensation assures ultrasonic measurement is unaffected by seasonal changes in water temperature - seasonal calibration becomes unnecessary.
Visual Performance Indicator Enhances Troubleshooting
A visual performance LED indicator light on the Sonatax sc probe provides quick glance assurance of proper performance. Green light indicates "okay," red indicates warning. Troubleshooting, particularly in applications with multiple sludge blanket level probes connected to one controller, is quick and easy.
Specifications
Technical Attributes
| Accuracy | 0.1 m (0.33 ft) |
| Cable Length | 10 m (optional extension cables available) |
| Calibration | Factory calibrated |
| Calibration Method | One-off on commissioning, automatic |
| Certifications | CE certified to EN 61326-1:1998 /A1/A2/A3 & EN 61010-1:2001 |

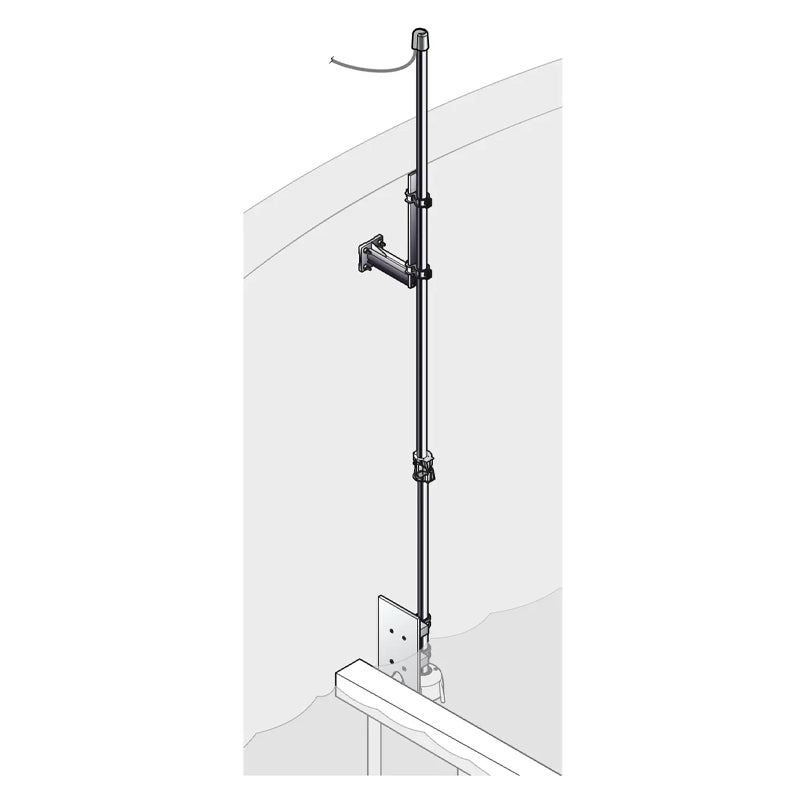

| Configurations | Sensor and Pivot Mounting Hardware |
| Controller Compatibility | SC4500, SC1000, SC200 |
| Dimensions (D x L) | 185 mm x 130 mm |
| Enclosure Rating | IP68 |
| Flow | Max. 3 m/s (the presence of air bubbles affects the measurement) |
| Includes | Sludge Level probe, pivot mount, user manual |
| Length | 130 mm |
| Maintenance Interval | < 1 h/month typical |
| Material | POM: Wiper Magnet Encapsulating Compound: Epoxy resin; Wiper Rubber: silicone rubber |
| Measuring Principle | Ultrasonic measurement |
| Mounting Configurations | Pivot |
| Operating Temperature Range | 0 - 50 °C |
| Parameter | Sludge level Sludge height |
| Power Requirements (Voltage) | 12 V, 2.4 W, provided by SC controller |
| Pressure Range | ≤ 0.3 bar or ≤ 3 m |
| Range | 0.2 - 12 m sludge level |
| Resolution | 0.03 m sludge level |
| Response Time (adjustable) | 10 - 600 s |
| Temperature Compensation | Automatic |
| Warranty | 24 months |
| Weight Sensor | 3.5 |
| What's included? | Sludge Level probe, pivot mount, user manual |
This instrument connects to Claros, Hach’s innovative Water Intelligence System, enabling you to seamlessly connect and manage instruments, data, and process – anywhere, anytime. The result is greater confidence in your data and improved efficiency in your operations. To unlock the full potential of Claros, insist on Claros Enabled instruments.
