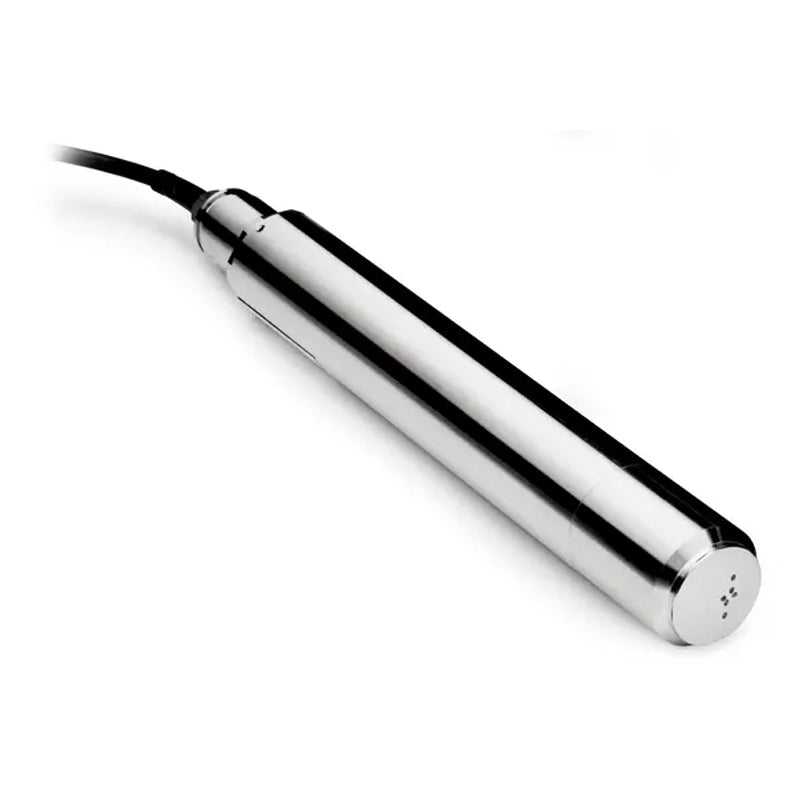

HACH TSS EX1 sc Turbidity and Suspended Solids Immersion Probe, Stainless Steel PN.LXV328.99.10002
HACH TSS EX1 sc Turbidity and Suspended Solids Immersion Probe, Stainless Steel PN.LXV328.99.10002
无法加载取货服务可用情况
* Please consult before ordering
Turbidity and suspended solids Immersion probe specially designed for use in potentially explosive atmospheres (Class I Div 2)
The TSS EX1 sc is a digital process probe for the extremely accurate measurement of turbidity and suspended solids specially designed for use in potentially explosive atmospheres (Class I Div 2). This immersion probe is installed by tank-side mounting and can measure both on-line suspended solids and turbidity in one instrument. The two channel 90° scattered light turbidity method is in accordance with DIN EN ISO 7027. For the determination of suspended solids a scattered light measurement method at 120 ° is integrated. This eight channel measurement system, with an integrated bubble and temperature compensating software, enables the instrument to have a wide measuring range. The TSS EX1 sc probes are compatible with the Hach SC200 and SC1000 controller platform. Furthermore, they are made of polished stainless steel with a scratch resistant and easy to clean sapphire window design to withstand harsh environments.
Benefits
Unique Multi-Beam Pulsed Infrared Light System
TSS EX1 sc probes have a double optical system with two pulsating infrared LEDs and four receivers. This combined multiple beam alternating light method with beam focusing facilitates accurate color independent measurement of turbidity and suspended solids.
Automatic Compensation for Air Bubbles and Temperature Swings for Accuracy
Special software enables the system to recognize gas bubbles or temperature swings for a more accurate suspended solids or turbidity measurement.
Standard Compliant and Precise - Ease of Calibration
The turbidity measurement complies with the standard DIN EN 27027 (ISO 7027). Calibration is not necessary. If the probe is used to measure the solids content, a one-point calibration suffices. For special applications, curves can be defined using several calibration points.
Withstands Difficult Conditions and Harsh Environments
TSS EX1 sc probes are made of highly polished stainless steel with a scratch resistant sapphire window. They are design to withstand harsh environments and keep particles from sticking to the surface.
Suitable for Use in Potentially Explosive Atmospheres
TSS EX1 sc probes have been specially designed for measurement in hazardous locations with Class I Div 2 requirements.
Specifications
Technical Attributes
| Accuracy | Turbidity up to 1000 NTU: < 5% of the measured value ±0.01 NTU |
| Ambient Temperature | 0 - 50 °C |
| Application | Hazardous locations |
| Automatic Wiper | No |
| Cable Length | 10 m |
| Calibration | Turbidity (TRB): Factory calibrated Solids (TS): To be calibrated by customer on site Zero point: Permanently calibrated in the factory |
| Calibration Method | Turbidity Formazin or Stablcal Standard (at 800 NTU). Requires a calibration kit. Suspended Solids Sample specific, based on gravimetric analysis with a correction factor procedure. |
| Controller Compatibility | SC200, SC1000, SC4500. All controllers sold separately |
| Diameter | 48.5 mm |
| Flow | Max. 3 m/s (the presence of air bubbles affects the measurement) |
| Includes | Turbidity & Suspended Solids sensor, user manual |
| Installation style | Tank Immersion |
| Length | 385 mm |
| Maintenance Interval | 1 h/month |
| Material | Optics Carrier and Sleeve: stainless steel 1.4460 / stainless steel 1.4404 |
| Max Temperature | 50 |
| Measurement Method | Combined multiple beam alternating light method with infrared diode system and beam focusing Turbidity (TRB): 2-channel 90º scattered light measurement in accordance with DIN EN ISO 7027, wavelength = 860 nm Solids (TS): 90º and 120º scattered light measurement, wavelength = 860 nm |
| Model | TSS EX1 sc |
| Mounting Configurations | Immersion |
| Operating Temperature Range | -10 - 50 °C |
| Parameter | Turbidity, Suspended Solids |
| Pressure Range | |
| Range | Turbidity (TRB): 0.001 - 9999 NTU Solids (TSS): 0.001 - 500 g/L |
| Repeatability | TSS content: < 4 % Turbidity: < 3 % |
| Response Time | 1 s < T90 < 300 s (adjustable) |
| Response Time T90 | 1 - 300 s adjustable |
| Warranty | 12 months |
| Weight | approx. 2.7 kg |
| What's included? | Turbidity & Suspended Solids sensor, user manual |
