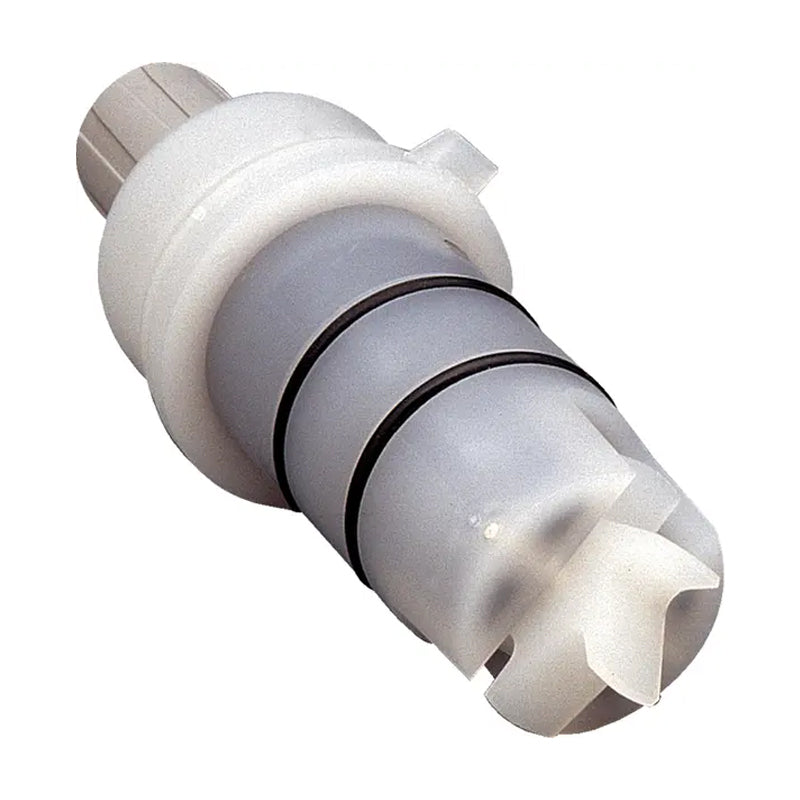

HACH Tee-Mount Flow Sensor, Polypropylene Body PN.F1A11A1T

HACH Tee-Mount Flow Sensor, Polypropylene Body PN.F1A11A1T

$785.95 USD
$785.95 USD
促销 售罄

* Please consult before ordering

Accurate flow measurement at an economical price.

Polypropylene material, Tee-Mount style impeller flow sensor, 6m (20ft) analog cable

Benefits

Economical and practical

Used with a controller, you can independently monitor four sensors with convenience.

Non-magnetic sensing technique

Hach’s Impeller Flow sensors unique non-magnetic sensing technique is impervious to fouling from metal particles. The non-magnetic sensing technique reduces drag for superior low-flow and low-volume measurement accuracy.

Superior low-velocity performance

The forward-swept, six-bladed impeller has significantly better low-flow, low-velocity characteristics than conventional four-bladed impellers to provide higher measuring accuracy.

Wide rangeability



Variable frequency square wave signal



FDA-approved wetted materials

Specifications



Technical Attributes

Accuracy In PVC Tee ± 1 % of full scale from 1 - 30 ft./sec (0.3 - 9.0 m/sec)
Accuracy 2 In Cast Bronze Tee ± 1 % of full scale from 1 to 20 ft./sec (0.3 to 6.0 m/sec)
Accuracy 3 In PVDF Tee ± 1 % of full scale from 1 to 30 ft./sec (0.3 to 9.0 m/sec)
Body material Polypropylene
Cable Length 20
Mounting Tee mount
Pressure Range In Cast Bronze Tee 400 psi at 176 °F (27.5 bar at 80 °C)
Pressure Range In a PVDF Tee, 100 psi at 177 °F (6.9 bar at 25 °C)
Repeatability (in any tee) ± 0.5 % of full scale
Sensor Cable 2 conductor (plus sheild), 20 ft. (6 m)
Temperature In Cast Bronze Tee 176 °F at 400 psi (80°C at 27.5 bar)
Temperature In a PVC Tee, 140°F at 40 psi (60°C at 2.75 bar)
Temperature In PVC Tee 140 °F at 40 psi (60°C at 2.75 bar)
Warranty 12 months
Wetted Materials Polypropylene body, Polypropylene impeller, TTZ (transformation toughened zirconia), ceramic shaft and EPR O-rings
What's included? Includes: sensor with 20 ft cable and manual
