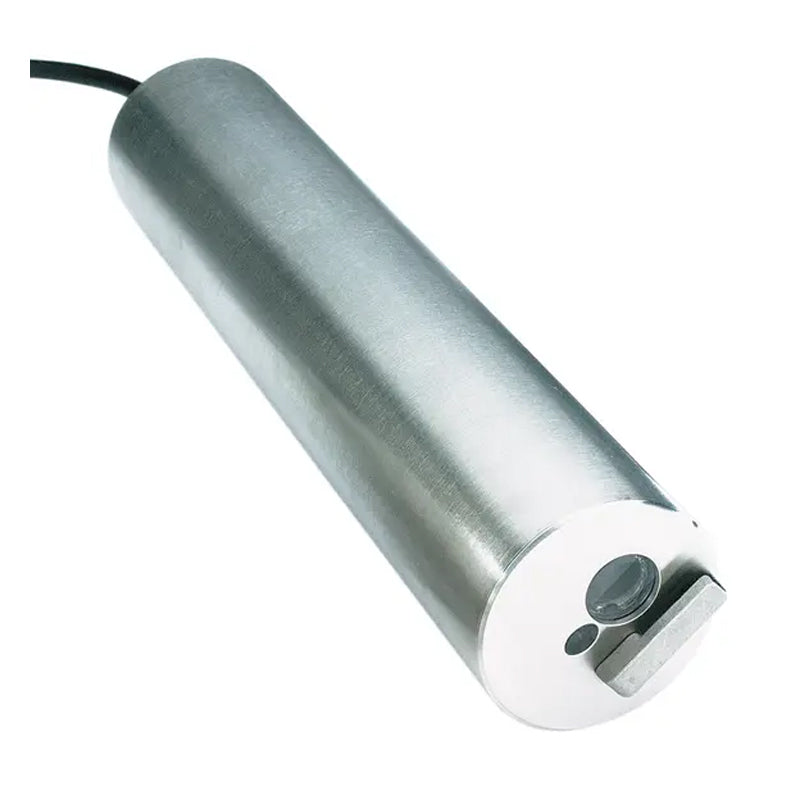

HACH Solitax highline sc Turbidity and Suspended Solids Insertion Probe with Wiper, Stainless Steel PN.LXV424.99.00200
HACH Solitax highline sc Turbidity and Suspended Solids Insertion Probe with Wiper, Stainless Steel PN.LXV424.99.00200
无法加载取货服务可用情况
* Please consult before ordering
High-precision in pipe turbidity and suspended solids measurements in high concentrated sludges according to DIN EN ISO 7027 and DIN 38414
The Solitax highline sc turbidity and suspended solids insertion probe provides high-precision results in clear to strongly turbid liquids as well as in high concentrated sludges. Since this probe is for in pipe use only an appropriate mounting assembly for insertion application is required. Turbidity measurement performance is certified to MCERTS regulation and the probe operates with a 90° measuring method according to DIN EN ISO 7027. The suspended solids measurement by a colour-independent method with an infrared duo scattered light photometer is in accordance with DIN 38414. A proven automatic wiper cleaning system allows sustained performance quality in drinking water as well as in waste water applications. The Solitax highline sc probe material is stainless steel and measurement data is displayed and processed with the help of a digital Hach SC200 or SC1000 controller.
Furthermore, the Solitax highline sc turbidity immersion probe is compatible for Prognosys which is a predictive diagnostic system that allows you to be proactive in your maintenance, by alerting you to upcoming instrument issues. Know with confidence whether changes in your measurements are due to changes in your instrument or your water.
This instrument connects to Claros, Hach’s innovative Water Intelligence System, enabling you to seamlessly connect and manage instruments, data, and process – anywhere, anytime. The result is greater confidence in your data and improved efficiency in your operations. To unlock the full potential of Claros, insist on Claros Enabled instruments.
Benefits
Certified measurements according to DIN EN ISO 7027 and DIN 38414
Turbidity measurement performance certified to MCERTS regulation and according to DIN EN ISO 7027. The Suspended solids measurement is in accordance with DIN 38414.
Automatic wiper cleaning system
Elimination of surface films or particles that can affect performance quality by a proven automatic wiper cleaning system.
No calibration required
Long-term calibration stability since time-consuming multipoint calibrations with dilution series are replaced by a single correction factor.
Compatible with Hach SC controller platform
Measurement data is displayed and processed with the help of a digital Hach SC200 or SC1000 controller.
For in pipe use only!
An appropriate mounting assembly for insertion application is required.
Decrease polymer cost, digester volume and sludge hauling
Specifications
Technical Attributes
| Accuracy | Turbidity up to 1000 NTU: without calibration < 5% of the measured value ±0.01 NTU with calibration < 1% of the measured value ±0.01 NTU |
| Automatic Wiper | Yes |
| Body Material | Stainless Steel |
| Cable Length | 10 m (33 ft) (optional extension cables available) |
| Calibration Method | Turbidity: Formazin or Stablcal Standard (at 800 NTU). Suspended Solids: Sample specific, based on gravimetric TSS analysis with a correction factor procedure. |
| Certifications | CE, MCERTS |
| Controller | Sensor only |
| Controller Compatibility | SC4500, SC1000, SC200 |
| Diameter Sensor | 60 mm |
| Flow | Max. 3 m/s (the presence of air bubbles affects the measurement) |
| Length | 315 mm |
| Maintenance Interval | 1 h/month |
| Material | Optics carrier and sleeve: PVC black Wiper arm: stainless steel 1.4581 Wiper rubber: silicone rubber (standard) Optional: FKM/FPM (LZX578) Wiper shaft: stainless steel 1.4571 |
| Max. cable length Sensor-to-Controller | 100 |
| Measuring Principle | Infrared Duo scattered light technique for color-independent turbidity measurement Turbidity in accordance with DIN EN ISO 7027 / TS equivalent DIN 38414 |
| Model | Solitax highline sc |
| Mounting | Insertion |
| Operating Temperature Range | 0 - 40 °C (32 - 104 °F) |
| Parameter | High Range Suspended Solids, Turbidity |
| Pressure Range | Stainless steel insertion sensor: <6 bar or <60 m |
| Range | TSS-content: 0.001 - 500 g/L; 0.001 - 500,000 mg/L (the upper range is dependent on the sample property) Turbidity: 0.001 - 4000 NTU |
| Repeatability | TSS content: < 3%|Turbidity: < 1% |
| Response Time T90 | 1 - 300 s adjustable |
| Special Notes | Installation note: Distance sensor-wall > 50 cm (Turbidity) |
| Warranty | 12 months |
| Weight | Insertion stainless steel: 2.4 kg (5.29 lb.) |
| What's included? | Turbidity/Suspended Solids probe, user manual |
