HACH

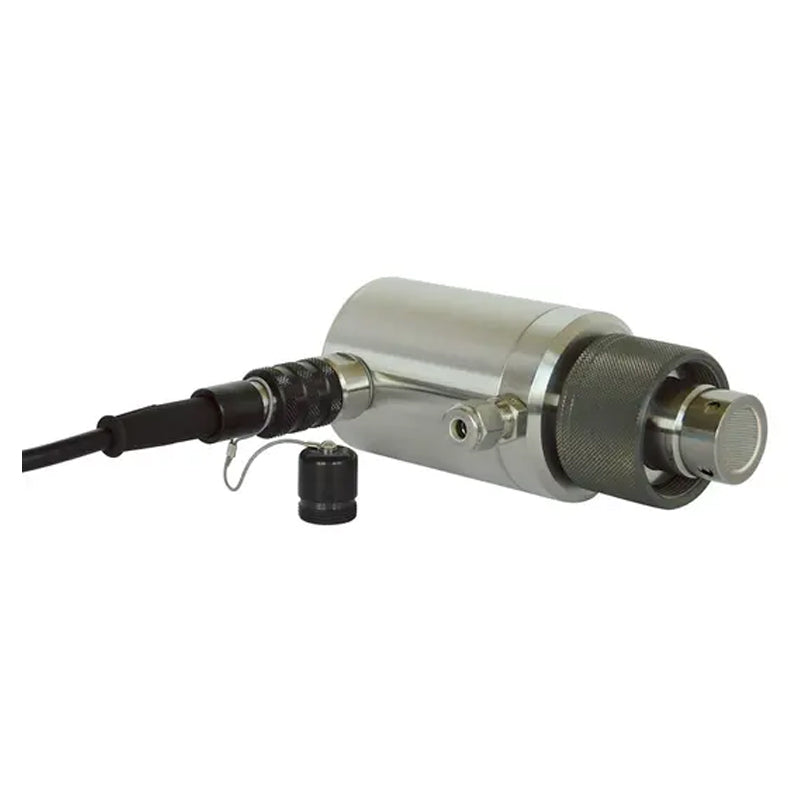

HACH Orbisphere High Pressure Nitrogen (N₂) TC sensor with argon purge, protection cap, ext. temp. sensor (170 bar) PN.31593HP

HACH Orbisphere High Pressure Nitrogen (N₂) TC sensor with argon purge, protection cap, ext. temp. sensor (170 bar) PN.31593HP

$26,882.19 USD
$26,882.19 USD
促销 售罄

* Please consult before ordering

Selective gas measurement

High Pressure Nitrogen TC sensor with argon purge and protection cap. With external temperature sensor adapter. Sensor cable to be ordered: 32505.03. Maximum pressure: 170 bar.
This sensor is the successor model for 31563HP.

Benefits

Unique thermal conductivity (TC) sensor design



Continuous nitrogen measurements in gaseous or liquid samples



Rugged construction can handle harsh plant conditions and high sample pressures



Fast response time to improve plant productivity



Compact design for easy insertion into a process line or a flow chamber

Specifications



Technical Attributes

Parameter Nitrogen (N₂)
Purge connection Argon Purge
Sample Pressure 0 - 170 bar
Temperature Range -5 - 50 °C
Weight 0.95 kg
What's included? Sensor only.
Controller, sensor cable, flow-chamber or process connection must be ordered separately.
