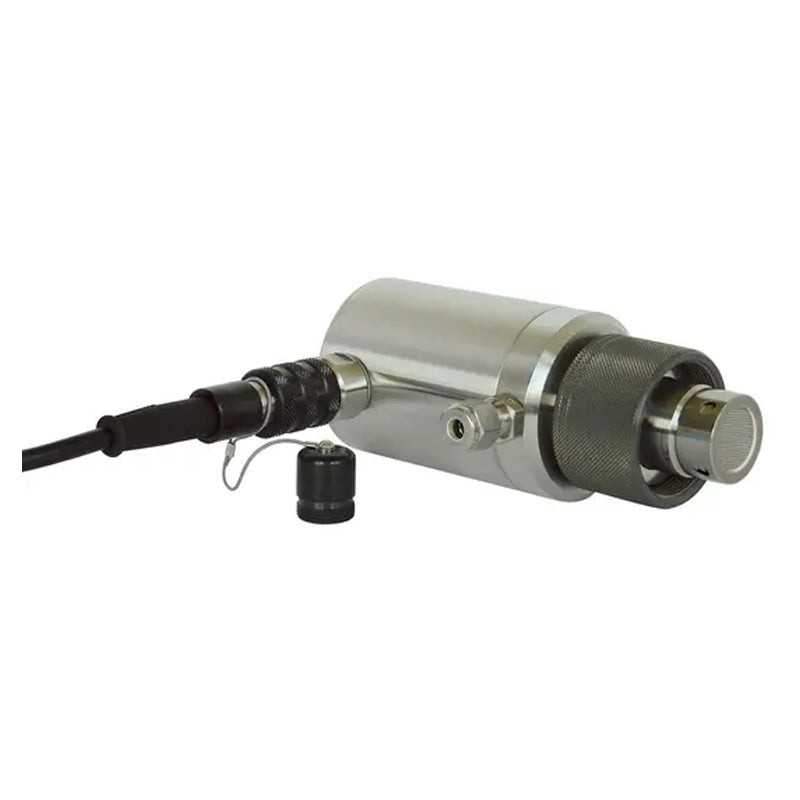

HACH Orbisphere High Pressure Hydrogen (H₂) TC sensor with nitrogen purge, protection cap, ext. temp. sensor (170 bar) PN.31290HP

HACH Orbisphere High Pressure Hydrogen (H₂) TC sensor with nitrogen purge, protection cap, ext. temp. sensor (170 bar) PN.31290HP

$27,153.92 USD
$27,153.92 USD
促销 售罄

* Please consult before ordering

Allows you to monitor hydrogen in the power production process.

High Pressure Hydrogen TC sensor with nitrogen purge and protection cap. With external temperature sensor adapter.
Sensor cable to be ordered: 32505.03.
Maximum pressure: 170 bar

This sensor is the successor model for 31260HP.

Benefits

Patented thermal conductivity (TC) sensor design



Selective and precise measurement of hydrogen in gaseous or liquid samples



No specific sample preparation required, the gas concentration is measured directly in the sample



Rugged construction can handle harsh plant conditions and high sample pressures



Flexibility of installation for better process control and very low maintenance

Specifications



Technical Attributes

Accuracy (Sample temp. 20 - 50°C within ± 5°C of calibration temperature)
The greater of
Membrane 29561A: ±1% of reading, or ±2 ppb, or ±0.03 cc/kg, or ±1.5 bar
Membrane 2952A: ±1% of reading, or ±8 ppb, or ±0.1 cc/kg, or ±6 mbar
Membrane 2935A: ±1% of reading, or ±25 ppb, or ±0.4 cc/kg, or ±20 mbar
Accuracy 2 (Sample temp. 0 - 50°C independent of calibration temperature)
The greater of
Membrane 2952A: ±3% of reading, or ±60 ppb, or ±0.6 cc/kg, or ±20 mbar
Membrane 2935A: ±3% of reading, or ±150 ppb, or ±2.5 cc/kg, or ±50 mbar
Application Power
Certifications 2004/108/EC - EN 61326-1
Cycle Time 17 s
Flow Rate Typical Flow Rate Membrane 29561A: 220 mL/min
Membrane 2952A: 200 mL/min
Membrane 2935A: 100 mL/min
Parameter Hydrogen (H₂)
Protection Class IP65
Purge connection Nitrogen Purge
Radiation Resistance Level Membrane 29561A: 105 rad
Membrane 2952A: 108 rad
Membrane 2935A: 108 rad
Range Range at 25 °C
Membrane 29561A: 0 - 2 ppm, or 0 - 25 cc/kg, or 0 - 1.5 bar
Membrane 2952A: 0 - 10 ppm, or 0 - 120 cc/kg, or 0 - 6 bar
Membrane 2935A: 0 - 20 ppm, or 0 - 220 cc/kg, or 0 - 12 bar
Response Time 17 s
Sample Pressure 0 - 170 bar
Temperature Range -5 - 50 °C
Warranty 6 months
Weight 0.95 kg
What's included? Sensor only.
Controller, sensor cable, flow-chamber or process connection must be ordered separately.
