HACH Orbisphere GA2400 Stainless Steel Oxygen Sensor (EC) for 6110 TPO Analyser, 40 bar, EPDM O-rings PN.GA2400-S00T
HACH Orbisphere GA2400 Stainless Steel Oxygen Sensor (EC) for 6110 TPO Analyser, 40 bar, EPDM O-rings PN.GA2400-S00T
无法加载取货服务可用情况
* Please consult before ordering
Highly accurate and customisable oxygen measurement for all environments
The Orbisphere GA2400 oxygen (O₂) Electrochemical (EC) sensor is designed for process monitoring as well as laboratory analysis in the liquid or gas phases across.
With its large measuring possibilities the Orbisphere GA2400 O₂ EC-sensor can be used for a wide range of applications from beer or soft-drinks production to rinsing of semiconductor waters in chip-manufacturing plants, reactor coolant systems in nuclear power plants, or any place where oxygen measurement is critical.
A small residual signal with unrivalled accuracy (± 0.1 ppb) is made possible by the exclusive sensor design. Different pre-mounted membrane kits are available to fulfill any particular process requirements and O₂ measurement ranges required.
The stainless steel Orbisphere GA2400-S00T O₂ electrochemical sensor for 6110 TPO analyser is mechanically resistant to pressure up to 40 bar.
Benefits
Easy and fast maintenance
Traditional cleaning processes can take more than thirty minutes to complete. The GA2400 and GA2800 EX come with an innovative cartridge system that contains everything needed to complete membrane and electrolyte solution change in less than 5 minutes.
Low level oxygen measurement and unrivaled accuracy
The Hach Orbisphere GA2400 and GA2800 EX utilise an electrochemical oxygen sensor with a lower detection level of 0.1 ppb and unrivaled highly accurate readings of ±1%. This feature allows users to ensure control of low oxygen levels, for product and equipment integrity and avoiding corrosion.
Robust for harsh environments
The robust stainless steel or Hastelloy design makes the GA2400 and GA2800 EX sensor ideal for the most demanding applications. ATEX certification comes standard in all GA2800 units, making the sensor especially suitable for harsh chemical environments.
Specifications
Technical Attributes
| Accuracy | Accuracy = Trueness (ISO 57251) 2935A-A: The greater of ±1% of reading or ± 10 ppb, or ± 20 Pa 2952A-A: The greater of ±1% of reading or ± 2 ppb, or ± 5 Pa 2956A-A: The greater of ±1% of reading or ± 0.1 ppb¹, or ± 1 ppb², or ± 0.25 Pa 29552A-A: The greater of ±1% of reading or ± 2 ppb, or ± 5 Pa ¹ Accuracy is ± 0.1 ppb for 410, 510, 362x, 360x and 3655 instruments ² Accuracy is ± 1 ppb for 366x and 3650 instruments |
| Body Material | Stainless Steel |
| Certifications | CE |
| Flow Rate | Recommended flow rate in flow chamber 2935A-A: 25 mL/min 2952A-A: 50 mL/min 2956A-A: 180 mL/min 29552A-A: 50 mL/min |
| Material | O-Rings: EPDM |
| Model | GA2400 |
| Pressure Range | 40 bar |
| Pressure resistance | 40 bar minimum with default PPS collar (100 bar with stainless steel collar) |
| Protection Class | IP66 |
| Range | Range at 25 °C (77 °F) 2935A-A: 10 ppb - 400 ppm or 20 Pa - 1,000 kPa 2952A-A: 1 ppb - 80 ppm or 5 Pa - 200 kPa 2956A-A: 0.1 ppb - 20 ppm or 0.25 Pa - 50 kPa 29552A-A: 2 ppb - 80 ppm or 5 Pa - 200 kPa |
| Response Time | Response time at 25 °C (77 °F) for a 90% signal change 2935A-A: 2.5 min 2952A-A: 38 s 2956A-A: 7.2 s 29552A-A: 90 s |
| Sensor material | Stainless Steel for 6110 |
| Temperature Compensation | -5 - 60 °C (23 - 140 °F) |
| Temperature resistance | -5 - 100 °C (23 - 212 °F) |
| Warranty | 6 months |
| Weight | 0.3 kg (0.66 lbs) |
| Wetted Materials | Stainless Steel 1.4404 (AISI 316L) No O-rings are in contact with the sample |

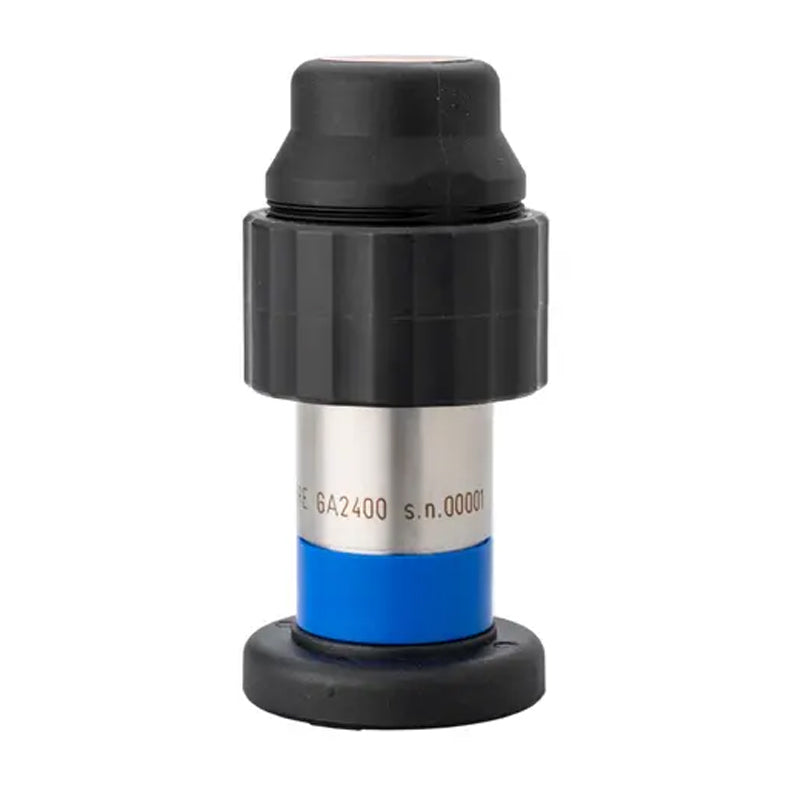

| What's included? | Oxygen Sensor (GA2400-S00T), incl. plastic screw-on storage cap for sensor head protection; protection cap without grille (33051-S0); protection cap with grille (33051-SP) |
