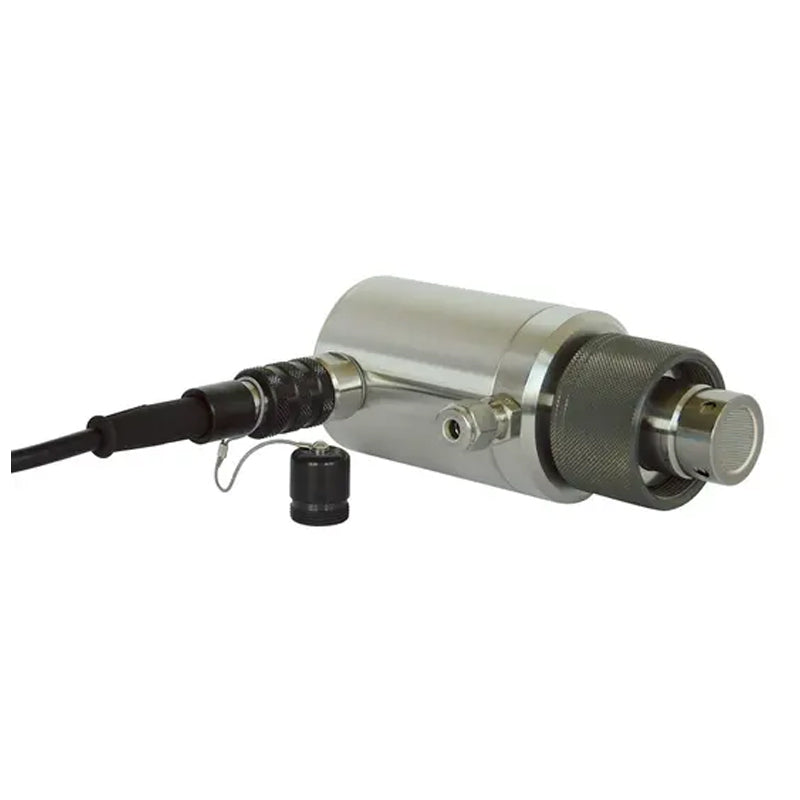

HACH Orbisphere Carbon Dioxide (CO₂) TC Sensor with nitrogen purge, protection cap, ext. temp. sensor (20 bar) PN.31490TC

HACH Orbisphere Carbon Dioxide (CO₂) TC Sensor with nitrogen purge, protection cap, ext. temp. sensor (20 bar) PN.31490TC

$16,023.12 USD
$16,023.12 USD
促销 售罄

* Please consult before ordering

Selective gas measurement

Carbon Dioxide TC sensor with nitrogen purge and protection cap. With with external temperature sensor adapter.
Sensor cable to be ordered: 32505.03.
Maximum pressure: 20 bar

This sensor is the successor model for 31460 and 31450.

Benefits

Patented thermal conductivity (TC) sensor design



No sample preparation required, the gas concentration is measured directly in the sample



Rugged construction can handle harsh plant conditions and high sample pressures



High temperature resistance to withstand cleaning in place (CIP)



Fast response time to improve plant productivity

Specifications



Technical Attributes

Accuracy (Sample temp. 20 - 50°C within ± 5°C of calibration temperature)
The greater of ±1% of reading or ±8 mbar or ±0.012 g/kg or ±0.006 V/V
Accuracy 2 (Sample temperature 0 - 50 °C independent of calibration temperature)
The greater of ±2% of reading or ±14 mbar or ±0.048 g/kg or ±0.02 V/V
Application In-line beverage
Certifications 2004/108/EC - EN 61326-1
Cycle Time 22 s
Flow Rate Typical Flow Rate 100 mL/min
Parameter Carbon Dioxide (CO₂)
Protection Class IP65
Purge connection Nitrogen Purge
Range Range at 25 °C, 0 - 10 bar, 0 - 15 g/kg, 0 - 7 V/V
Sample Pressure 0 - 20 bar
Sample Temperature 0 - 50 °C (32 - 122 °F)
Temperature Range -5 - 50 °C
Warranty 12 months
Weight 0.95 kg
What's included? Sensor only.
Controller, sensor cable, flow-chamber or process connection must be ordered separately.
