HACH

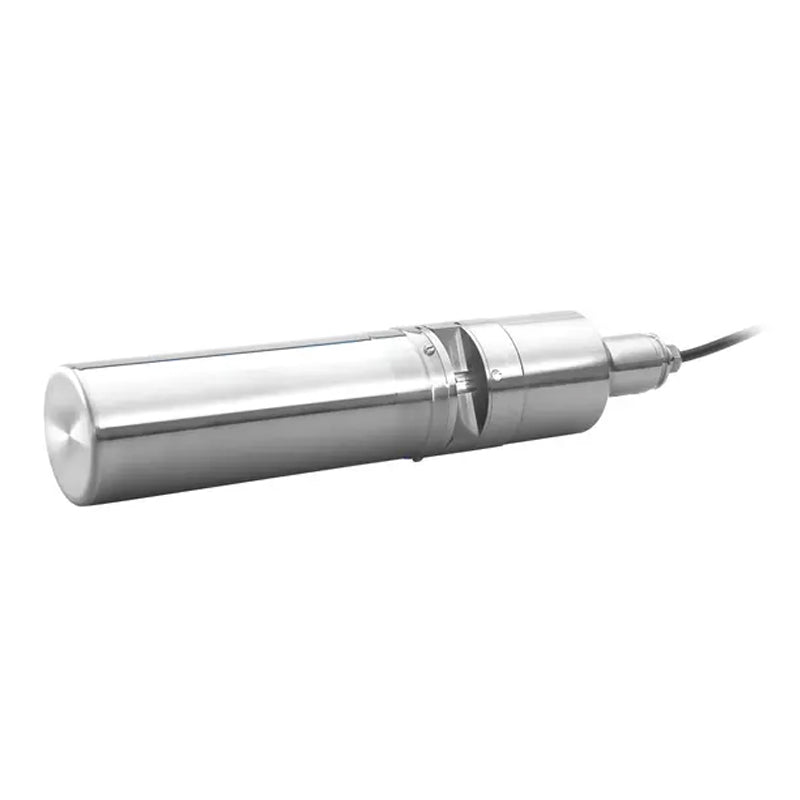

HACH Nitratax clear sc Sensor, 5 mm path length PN.LXV420.99.50002
HACH Nitratax clear sc Sensor, 5 mm path length PN.LXV420.99.50002
无法加载取货服务可用情况
* Please consult before ordering
Using the Nitratax eliminates reagents, sampling, and sample conditioning. The UV absorption method is proven, continuous, and precise. The probe is self-cleaning. Life-long factory calibration and full-featured "Plug & Play" with SC Controllers; Nitratax must be connected to an SC controller to form a complete system.
Prognosys is a predictive diagnostic system that allows you to be proactive in your maintenance, by alerting you to upcoming instrument issues. Know with confidence whether changes in your measurements are due to changes in your instrument or your water.
This instrument connects to Claros, Hach’s innovative Water Intelligence System, enabling you to seamlessly connect and manage instruments, data, and process – anywhere, anytime. The result is greater confidence in your data and improved efficiency in your operations. To unlock the full potential of Claros, insist on Claros Enabled instruments.
Benefits
UV Analysis Eliminates Reagents, Sampling, and Sample Conditioning
Using advanced ultraviolet (UV) absorption technology, Hach Nitratax sc UV Nitrate Sensors offer unprecedented simplicity, accuracy, and economy in nitrate analysis. By continuously measuring the UV light absorbed by nitrates, Nitratax sc sensors eliminate the need for reagents, sample conditioning, and frequent calibrations.
Optional Bypass Panel
An optional Bypass Panel or flow-through sample cell is available for clean water applications when direct immersion in Optional Bypass Panel a sample stream is impractical. The Bypass Panel uses the same probes as the immersion sensors for greater flexibility.
Choice of Three Models
Nitratax plus sc Process sensor for continuous measurement in drinking water, wastewater, or activated sludge. Turbidity compensation using reference measurement. Nitratax eco sc low cost sensor for measurement, especially for sewage treatment plants with intermittent aeration technology. Turbidity compensation using reference measurement. Nitratax clear sc Process sensor for continuous measurement in clean water such as drinking water or wastewater effluent.
Self-Cleaning Sensor
With the sensor submerged in the sample stream, the detector windows are automatically cleaned by a built-in wiper that eliminate surface films or particles that can diminish accuracy.
Specifications
Technical Attributes
| Accuracy | ± 5 % of measured value + 0.5 mg/L (with standard solutions) |
| Ambient Temperature | 2 - 40 °C (36 - 104 °F) |
| Application | Drinking Water |
| Cable Length | 10 m (32.8 ft.), fixed cable at sensor |
| Controller | Sensor only |
| Controller Compatibility | SC200, SC1000 |
| Diameter | 75 mm |
| Includes | Nitrate probe, standard solution, user manual |
| Length | 327 mm |
| Lower Limit of Detection (LOD) | 0.5 mg/L to 20 NO₂₊₃–N (with standard solutions) |
| Maintenance Requirements | 1 hour/month typical |
| Measuring Interval | |
| Measuring Principle | UV absorption measurement |
| Model | Nitratax clear sc |
| Operating Pressure | 0.5 bar (7.2 psi), maximum |
| Operating Temperature Range | 2 - 40 °C |
| Path Length | 5 mm |
| Power Consumption | 2 |
| Pressure Range | ≤ 0.5 bar |
| Range | 0.5 - 20 mg/L NO2+3-N 2 - 100 mg/L NO3 |
| Range | 0.5 - 20 mg/L NO₂₊₃-N |
| Resolution | 0.1 mg/L |
| Response Time | |
| Sample Flow Rate | 0.5 - 10 L/h sample |
| Service Interval | 6 months or as experience dictates |
| Sludge Compensation | No |
| Verification | Using standard solutions |
| Warranty | 12 months |
| Weight | 3.3 kg |
| What's included? | Nitrate probe, standard solution, user manual |
