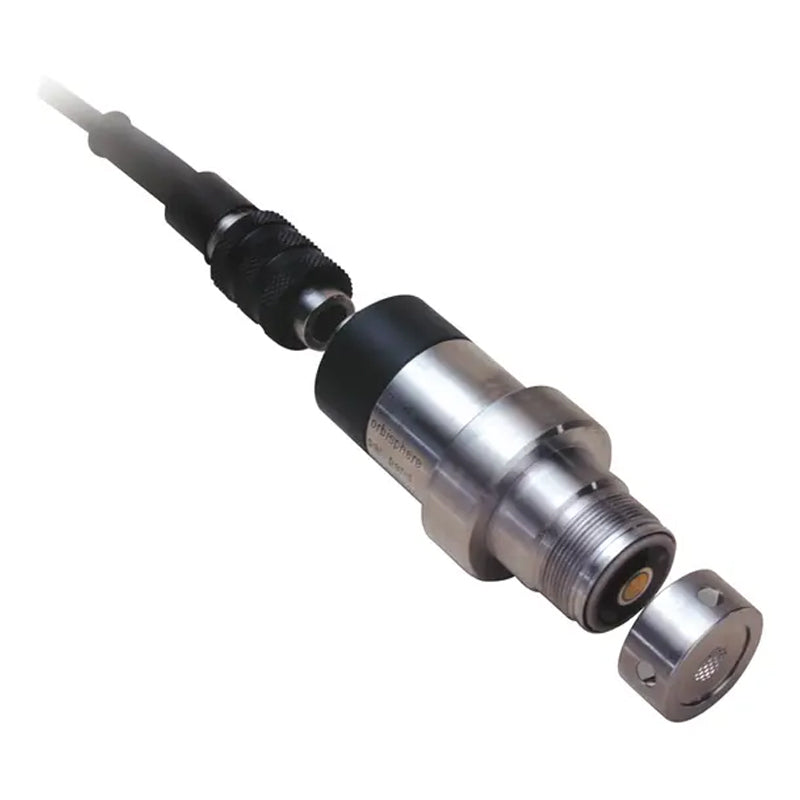

HACH High pressure hydrogen EC sensor, stainless steel, guard ring: platinum, o-ring: EPDM (200 bar) PN.31240.01

HACH High pressure hydrogen EC sensor, stainless steel, guard ring: platinum, o-ring: EPDM (200 bar) PN.31240.01

$21,375.92 USD
$21,375.92 USD
促销 售罄

* Please consult before ordering

Specifications



Technical Attributes

Accuracy The greater of ±1% of reading, or ±0.03 ppb, or ±1 Pa (Membrane 2956A)
Accuracy 2 The greater of ±1% of reading, or ±0.09 ppb, or ±6 Pa (Membrane 2952A)
Accuracy 3 The greater of ±1% of reading, or ±1 ppb, or ±50 Pa (Membrane 2995A)
Accuracy 4 The greater of ±1% of reading, or ±10 ppb, or ±1 kPa (Membrane 29015A)
Ambient Temperature -5 - 100 °C (23 - 212 °F)
Application Corrosion rate
Certifications IP68 / NEMA4
Flow Rate Typical Flow Rate
Membrane 2956A : 50 to 220 mL/min
Membrane 2952A : 40 to 200 mL/min
Membrane 2995A : 20 to 70 mL/min
Membrane 29015A : 20 to 40 mL/min
Material O-Ring: EPDM
Parameter Hydrogen
Protection Class IP68 / NEMA4
Radiation Resistance Level Membrane 2956A : 2x104 rad
Membrane 2952A : 108 rad
Membrane 2995A : 108 rad
Membrane 29015A : N/A
Range Range at 25 °C Membrane 2956A : 0 - 75 ppb or 0 Pa - 5 kPa
Membrane 2952A : 0 - 300 ppb or 0 Pa - 20 kPa
Membrane 2995A : 0 - 3200 ppb or 0 Pa - 200 kPa
Membrane 29015A : 0 ppb - 32 ppm or 0 - 2000 kPa
Sample Pressure 0 - 200 bar
Special Features Silver guard ring
Temperature Range Accurate from -5 - 50 °C (23 - 122 °F)

Resistant - temperature from -5 - 100 °C (23 - 212 °F)
Warranty 12 months
Weight 140 to 700 grams, depending on the construction materia
What's included? Sensor and manual.
Controller, sensor cable, flow-chamber or process connection must be ordered separately.
