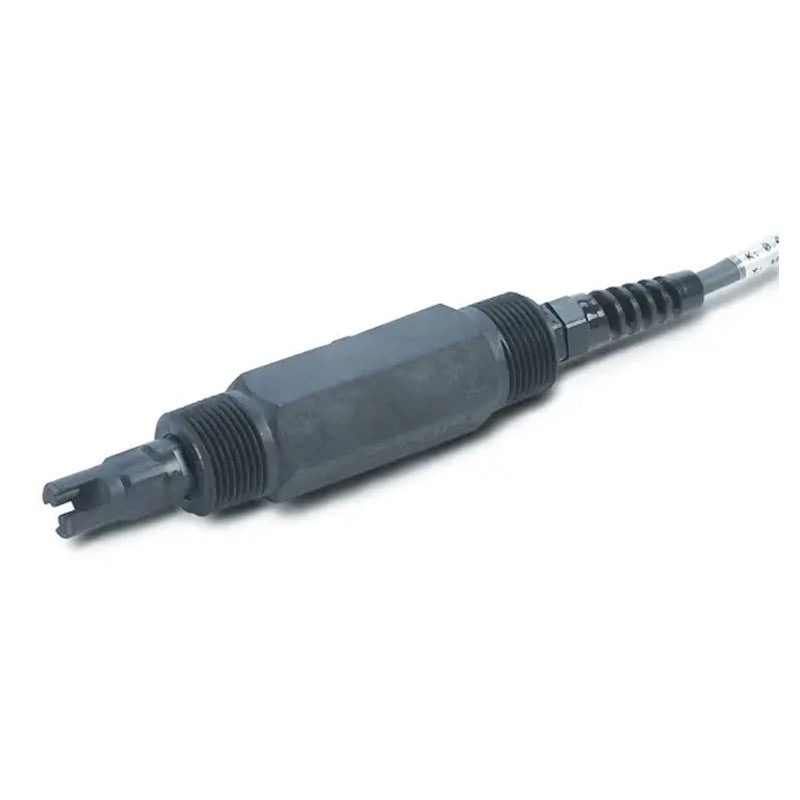

HACH General Purpose Contacting Conductivity Sensor, PPS Body, Low Conductivity (k=0.5) PN.3433B8A
HACH General Purpose Contacting Conductivity Sensor, PPS Body, Low Conductivity (k=0.5) PN.3433B8A
无法加载取货服务可用情况
* Please consult before ordering
Ultimate accuracy from ultra-pure to high conductivity applications.
Contacting conductivity sensor with a nominal cell constant k = 0.5 cm-1, ¾-inch male NPT threaded PPS body, 6 m analogue cable, and graphite electrode.
Measuring range 0 - 1000 µS/cm, 0,001 - 20 MΩ.
Benefits
High Performance Design
These sensors are manufactured to exacting tolerances using high quality, rugged materials for demanding applications including ultra-pure water, clean-in-place (CIP), and boiler/condensate monitoring. Each sensor is tested to determine its unique, absolute four-digit cell constant. Also, each sensor has a PT1000 RTD temperature element built into its tip for exceptionally fast response to changes in temperature with ±0.1 ºC accuracy.
Resistivity and Conductivity Measurement Capability
These enhanced performance sensors measure from 0.057 µS/cm or 18.2 MΩ (theoretically pure water) up to 200,000 µS/cm.
Versatile mounting styles
Non-Metallic General Purpose Sensors have graphite electrodes and ¾-inch male NPT threaded PPS bodies. Mount into a standard ¾-inch pipe tee, 1-½-inch Hach union hardware (for cell constant k=10 sensor only), or fasten onto the end of the pipe.
Full-Featured “Plug and Play” Hach SC Digital Controllers
There are no complicated wiring or set up procedures with any Hach SC controller. Just plug in any combination of Hach digital sensors and it's ready to use—it’s “plug and play.”
Specifications
Technical Attributes
| Accuracy | ±2 % of reading above 200 µS/cm |
| Cable Length | 20 ft |
| Cell Constant k | 0.5 cm⁻¹ |
| Diameter | 32.5 mm |
| Digital Gateway | None |
| Electrode Material | Graphite |
| Flow | 0 - 3 m/s |
| Immersion Depth | 33 mm tee mount |
| Installation style | General purpose |
| Junction box | None |
| Length | 134.6 mm |
| Measurement Range 2 | 0.001 - 20 MΩ |
| Operating Temperature Range | -20 - 200 °C |
| Pressure Range | 6.8 bar at 150 °C (when used with hardware, a lower rated mounting hardware or piping material may limit the temperature and pressure ratings) |
| Range | 0 - 1000 µS/cm |
| Repeatability | ±0.5 % of reading |
| Response Time T90 | < 30 s |
| Sensitivity | ±0.5 % of reading |
| Sensor Immersion Depth | 114.3 mm pipe mount |
| Sensor Thread | ¾" NPT at both ends |
| Sensor Type | Analog |
| Temperature Measurement | -20 - 200 °C |
| Temperature Sensor | Pt1000 RTD |
| Transmission Distance | 100 m maximum; 1000 m maximum, when used with a termination box |
| Warranty | 12 months |
| What's included? | Includes: sensor with 6 m (20 ft) cable and manual |
