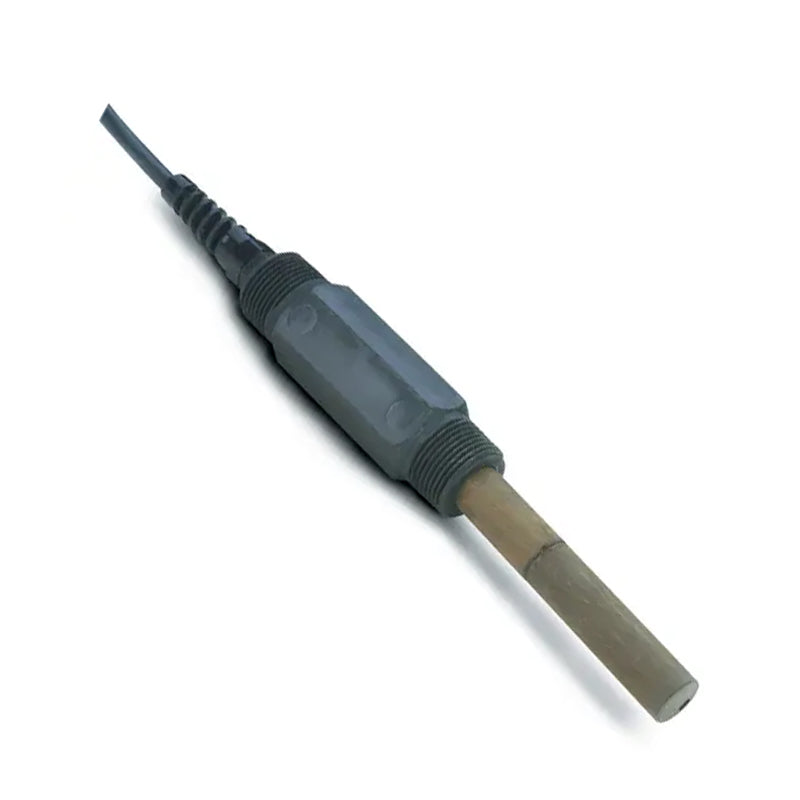

HACH General Purpose Contacting Conductivity Sensor, PPS Body, K=10.0 Cell Constant PN.3433E8A

High Performance Design

These sensors are manufactured to exacting tolerances using high quality, rugged materials for demanding applications including ultra-pure water, clean-in-place (CIP), and boiler/condensate monitoring. Each sensor is tested to determine its unique, absolute four-digit cell constant. Also, each sensor has a PT1000 RTD temperature element built into its tip for exceptionally fast response to changes in temperature with ±0.1 ºC accuracy.

Resistivity and Conductivity Measurement Capability

These enhanced performance sensors measure from theoretically pure water (0.057 µS/cm or 18.2 MΩ) up to 200,000 µS/cm. Hach’s sc Digital Controllers accept multiple digital sensor inputs, and can be user-set to measure conductivity, resistivity,TDS, salinity, or one of six
calculated measurements.

Versatile Mounting Styles

Non-Metallic General Purpose Sensors have graphite electrodes and ¾-inch male NPT threaded PPS bodies. Mount into a standard ¾-inch pipe tee, 1-½-inch Hach union hardware (for cell constant k=10 sensor only), or fasten onto the end of the pipe.

Full-Featured “Plug and Play” Hach sc Digital Controllers

There are no complicated wiring or set up procedures with any Hach sc controller. Just plug in any combination of Hach digital sensors and it's ready to use—it’s “plug and play.”

Specifications

Technical Attributes
